Ignition Coil: Service and Repair

IGNITION COIL

REMOVAL

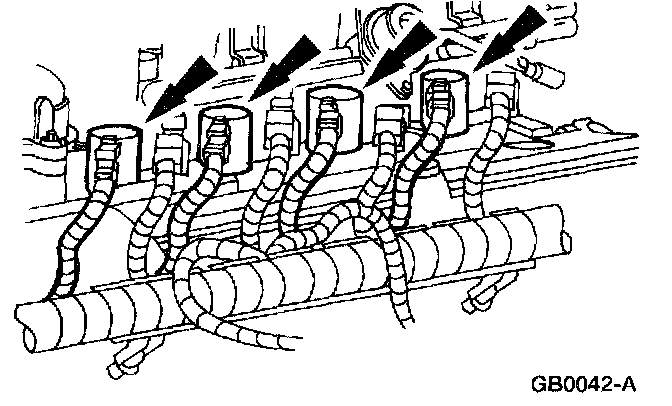

1. Disconnect the coil on plug (COP) electrical connectors.

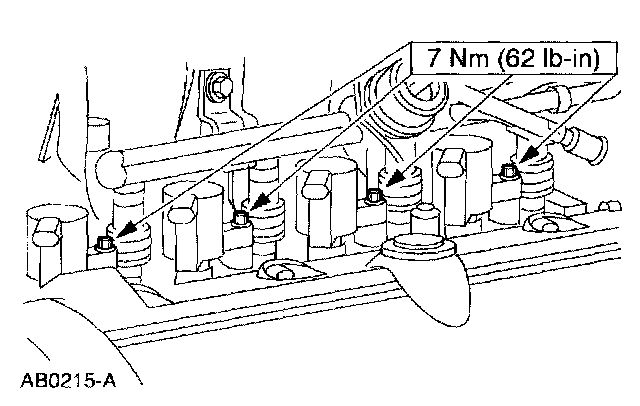

2. Remove the bolts.

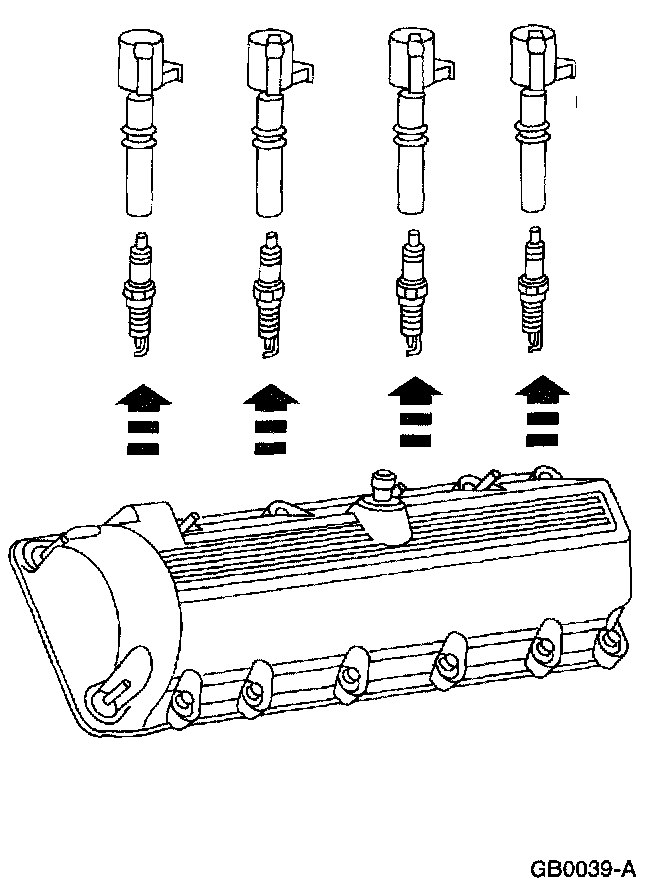

3. Remove the coil on plugs.

INSTALLATION

1. NOTE: Apply silicone brake caliper grease and dielectric compound to the inside of the coil boots.

To install, reverse the removal procedure.
