Panel Illumination Control Module: Service and Repair

DIMMER MODULE

REMOVAL
1. Remove the instrument panel glove compartment.

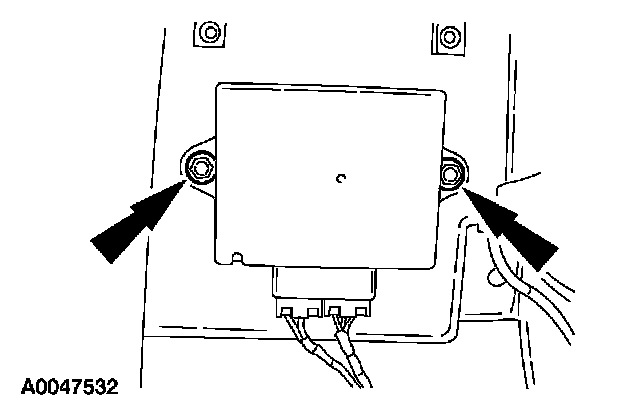

2. Remove the screws.
- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
