Cylinder Head Assembly

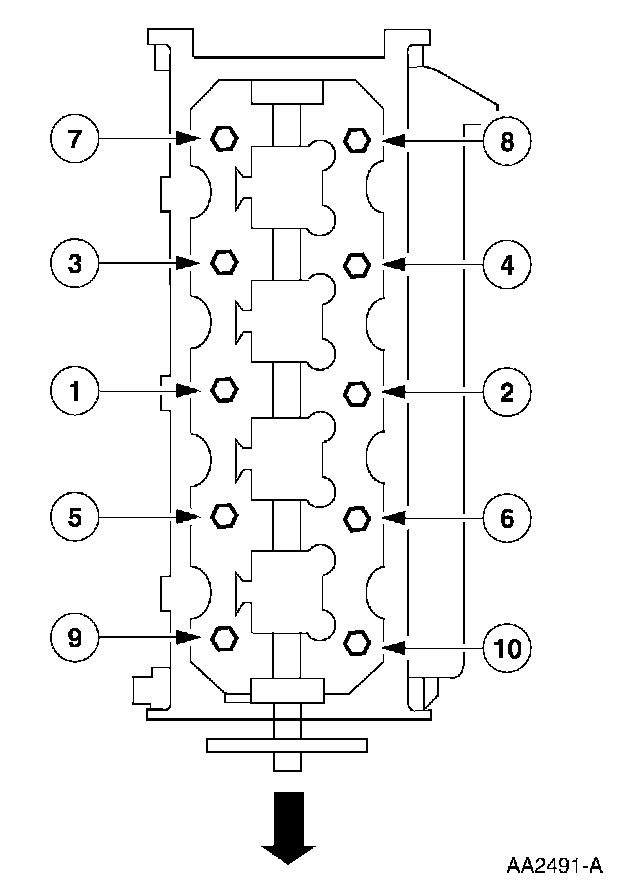

Head Bolt Torque and Sequence
Stage 1 40 Nm (30 ft. lbs.)
Stage 2 90°
Stage 3 90°

New Head Bolts Must Be Used

Cylinder head flatness must be within 0.0254 mm (0.001 inch) across a 38.1 mm (1.5 inch) square area.





Intake Manifold Torque and Sequence
Stage 1 m2 Nm (18 inch lbs.)
Stage 2 10 Nm (89 inch lbs.)

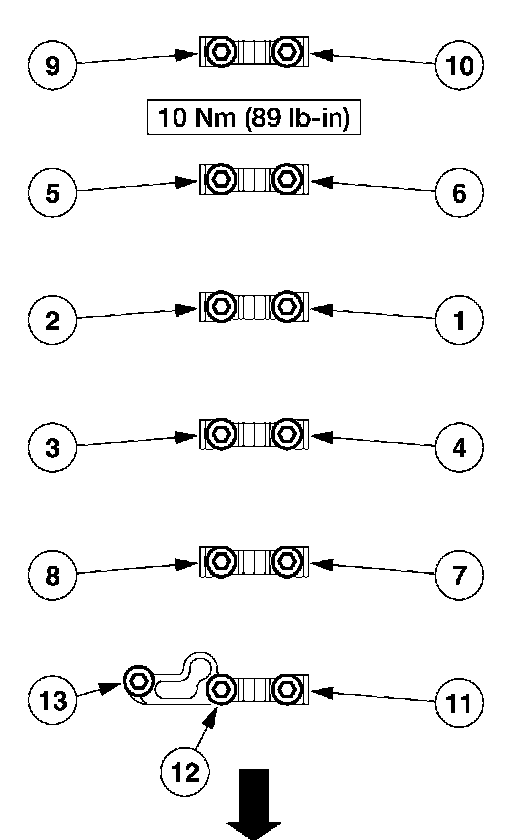

Camshaft Bearing Cap Torque and Sequence 10 Nm (89 inch lbs.)

Camshaft Sprocket
Stage 1 40 Nm (30 ft. lbs.)
Stage 2 90°

RH:

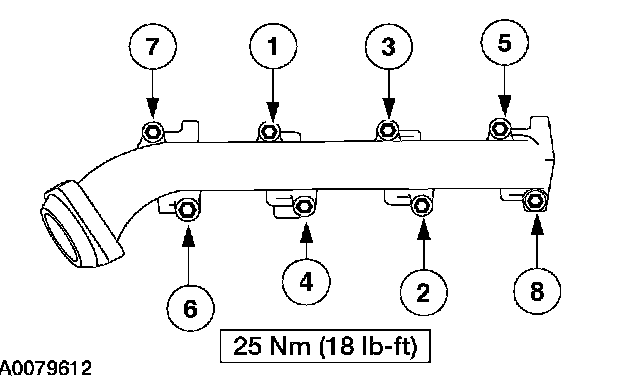

Exhaust Manifold Torque and Sequence 25 Nm (18 ft. lbs.)
