Test F

PINPOINT TEST F: THE MEMORY MIRROR IS INOPERATIVE - DOES NOT OPERATE FROM THE MEMORY SET SWITCH


Test F1:

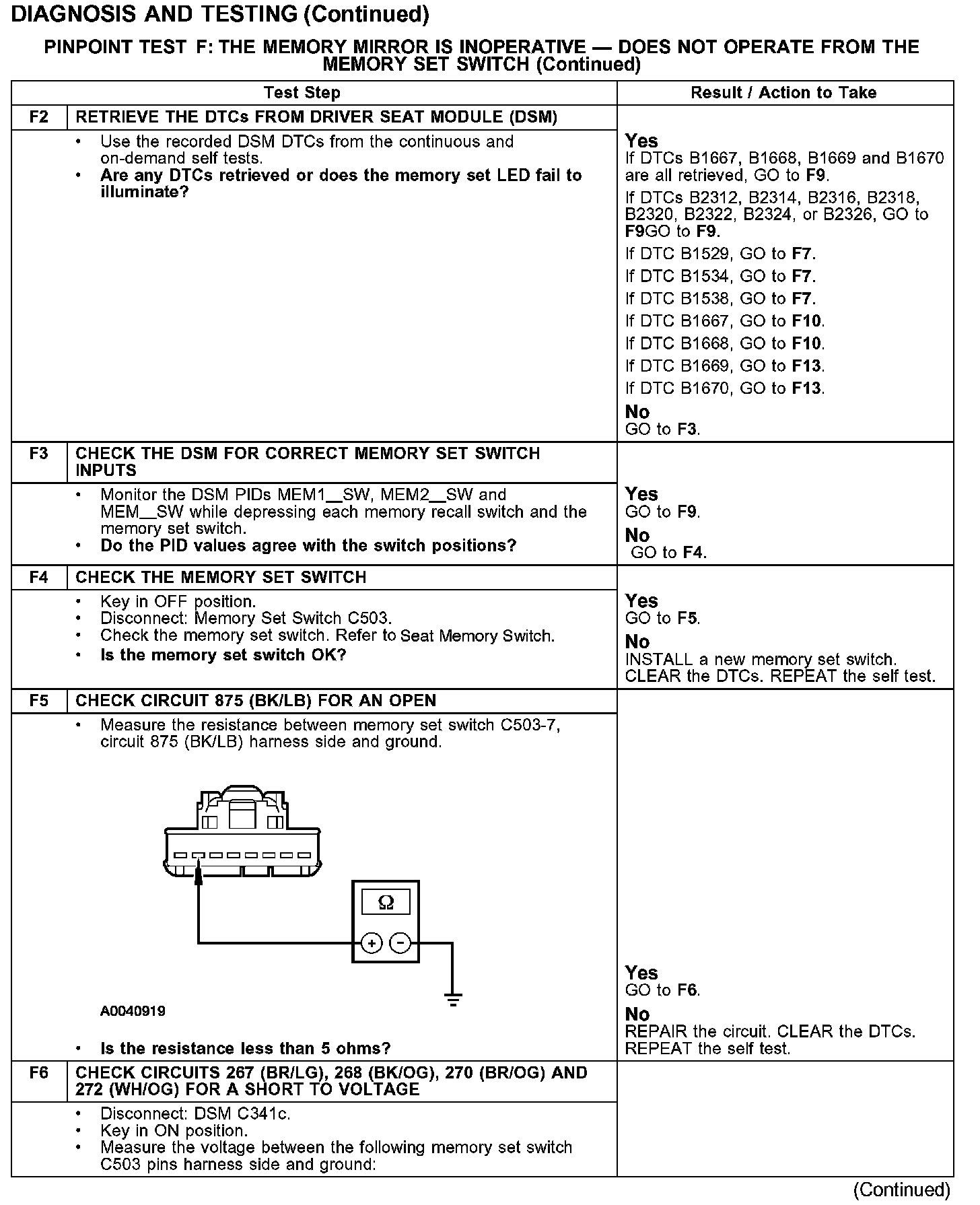

Test F2-F6:






Test F6-F7:






Test F8-F10:






Test F10-F11:

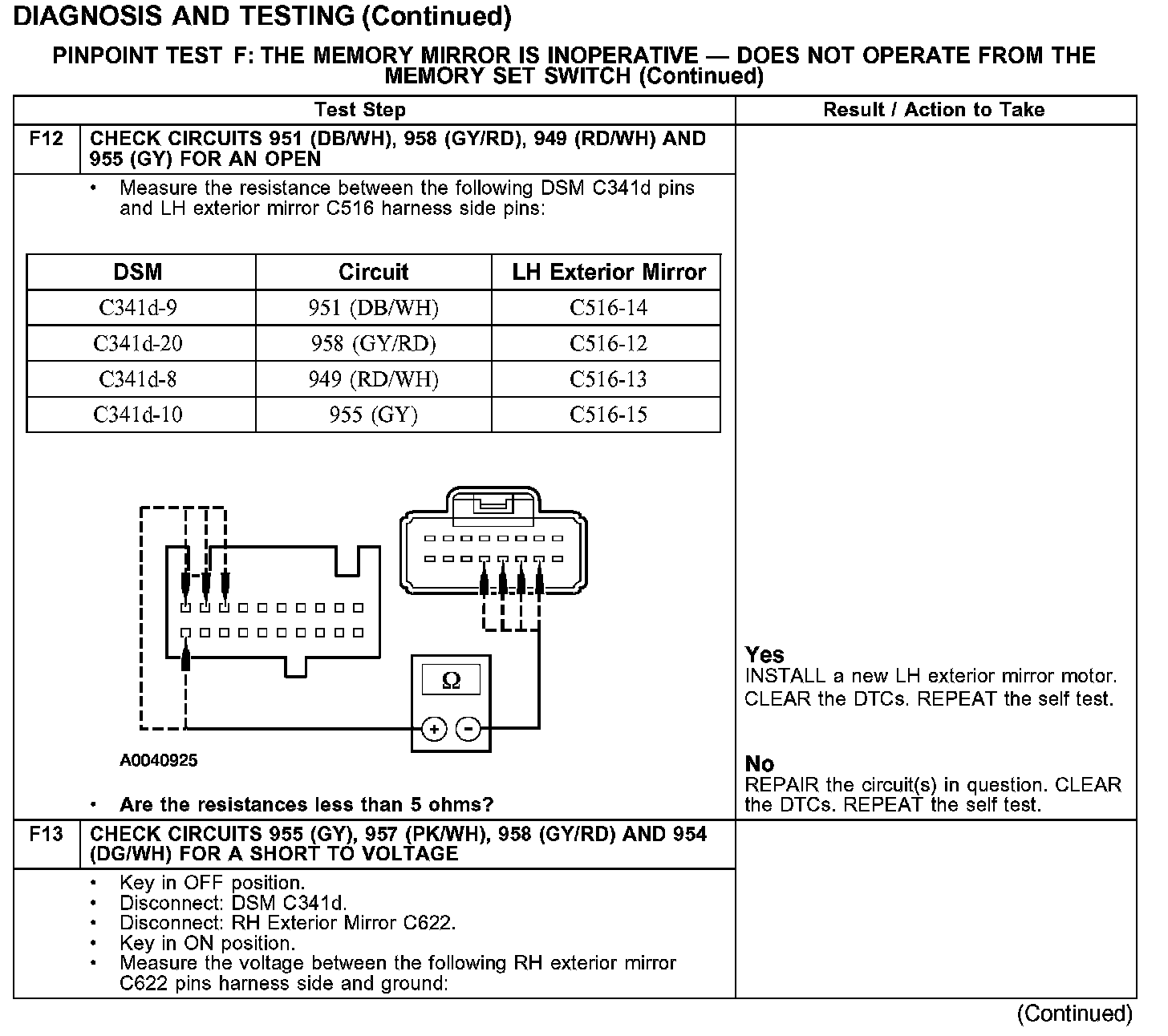

Test F12-F13:






Test F13-F14:

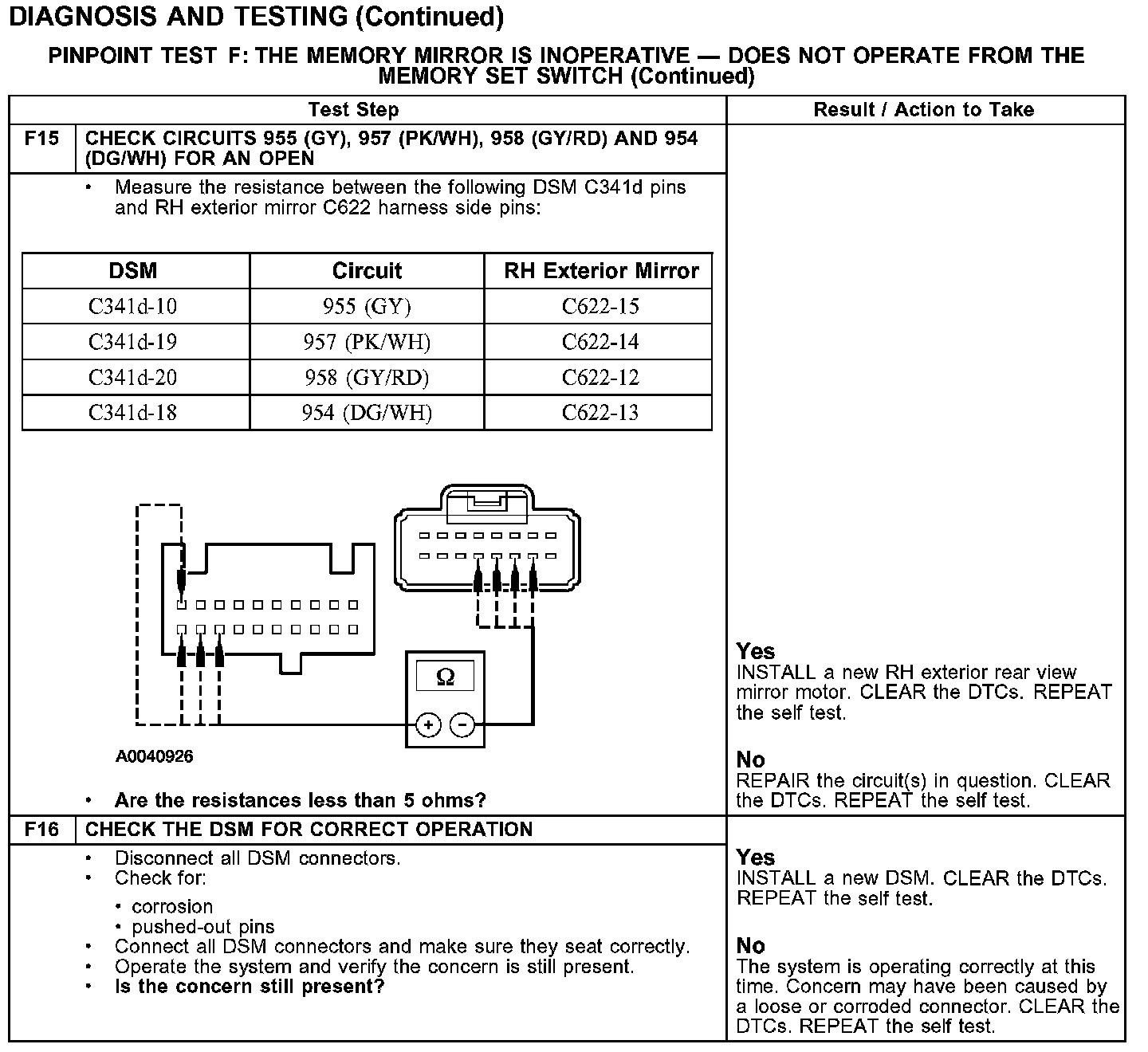

Test F15-F16:
