Third Row, 60 Percent

REAR SEAT BACKREST - THIRD ROW, 60 PERCENT

REMOVAL

All vehicles
1. Remove the third row 60 percent seat.







2. Remove the screws from the outboard and inboard side shields and remove the side shields (outboard shown).







3. Release the J-clips.

Manual fold seats







4. Remove the manual seat cable.
1 Pinch the cable end and remove the cable from retainer.
2 Release the cable end hook from the retaining hole.

All vehicles

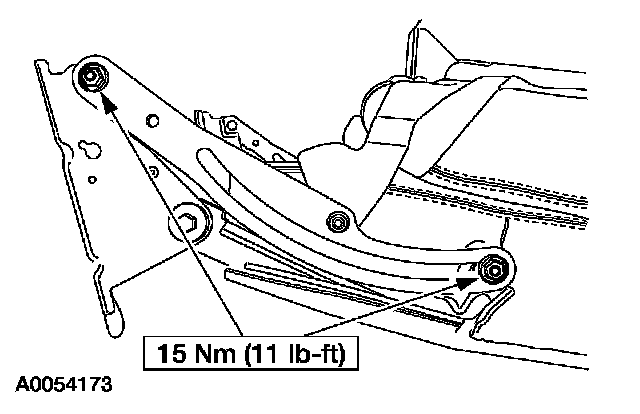

5. Remove the outboard slide bracket nuts.







6. Remove the inboard slide bracket nuts.
7. Remove the rear seat backrest from the cushion.

INSTALLATION
1. To install, reverse the removal procedure.
