Instrument Cluster

Expedition Instrument Cluster:

Expedition Instrument Cluster:

Instrument Cluster

The Navigator utilizes a virtual instrument cluster. The Expedition utilizes two instrument clusters, a base cluster and a message center cluster. The Navigator and Expedition base and message center clusters utilize a vacuum fluorescent tube display, located in the lower RH corner of the instrument cluster. The base cluster display contains the odometer, trip odometer, compass and outside air temperature information. The message center clusters contain an expanded vehicle information system in addition to the odometer, trip odometer, compass and outside air temperature information.

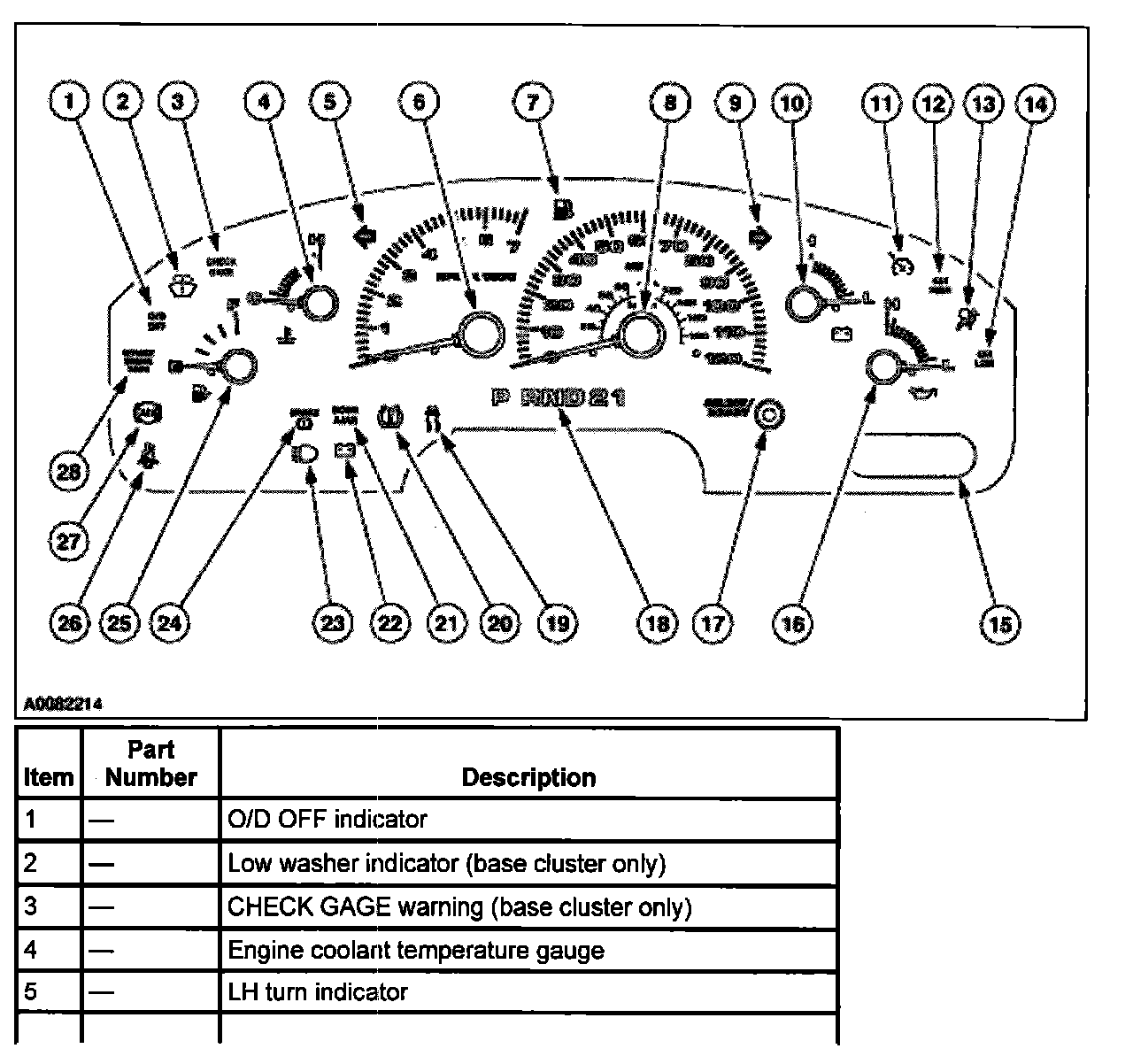

The Expedition instrument clusters consist of the following gauges and indicators:

NOTE: The English cluster is shown, the metric cluster is similar.
