Test A
Test A
PINPOINT TEST A: THE DAYTIME RUNNING LAMPS (DRL) ARE INOPERATIVE

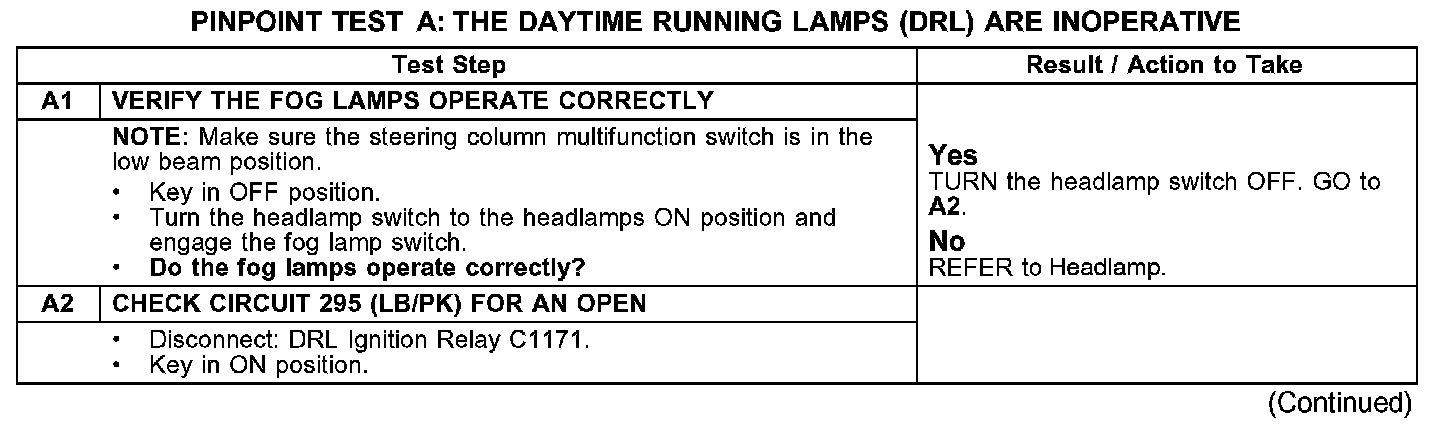

Test A1-A2:

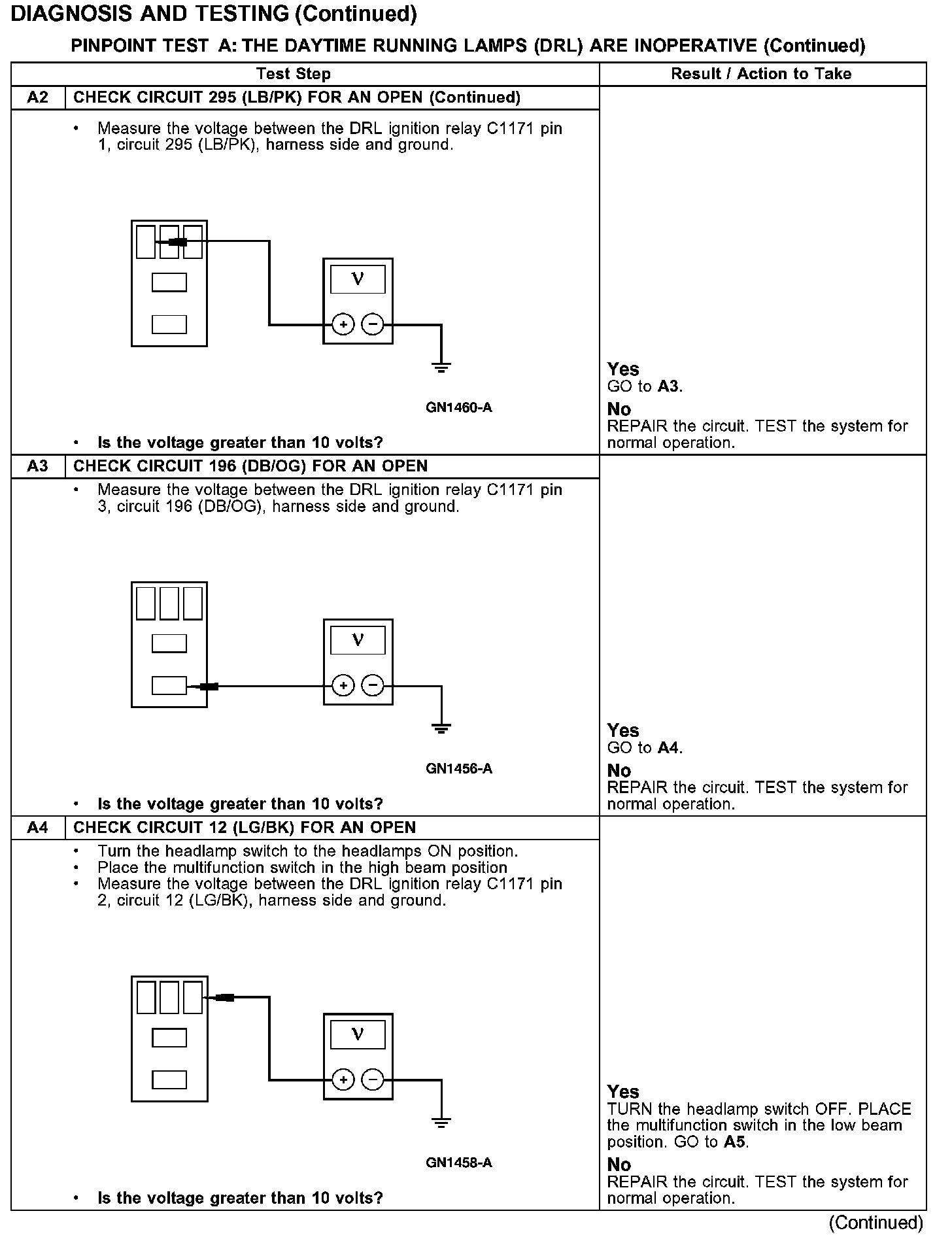

Test A2-A4:
Test A5-A8:
