Test M

PINPOINT TEST M: THE AIR SUSPENSION CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

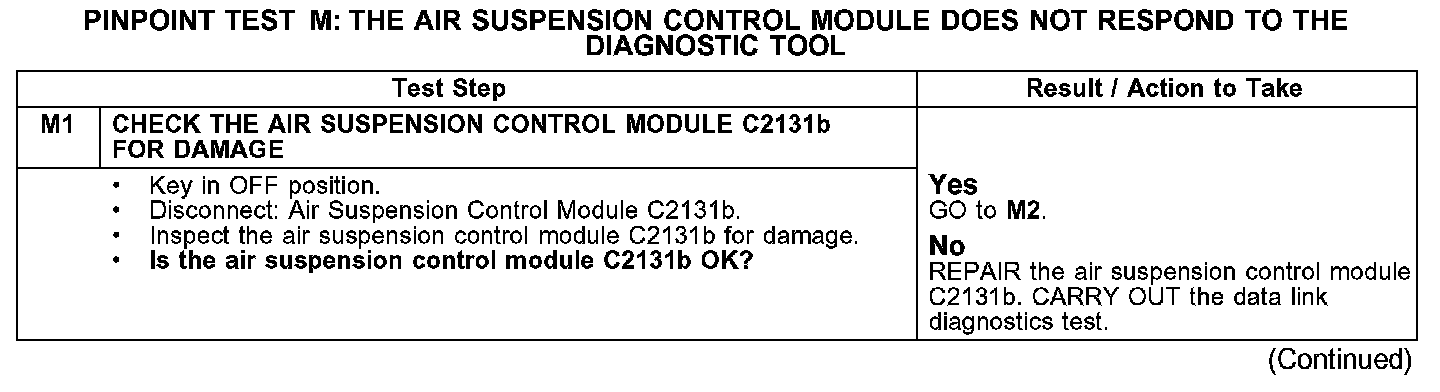

Test M1:

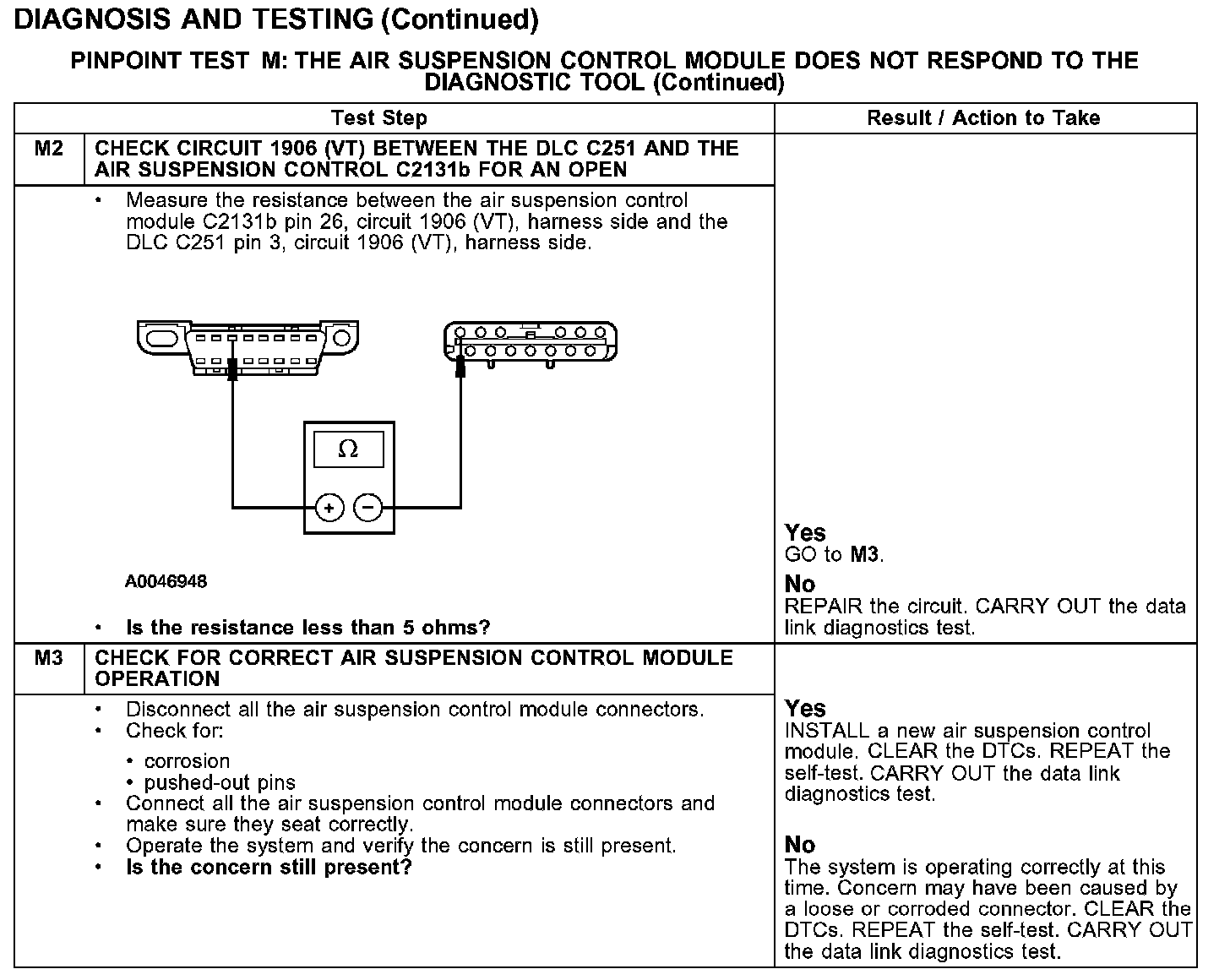

Test M2-M3:
