Drive Belt: Service and Repair

Accessory Drive Belt, Tensioner and Pulley

Removal and Installation
1. Remove the air cleaner assembly.

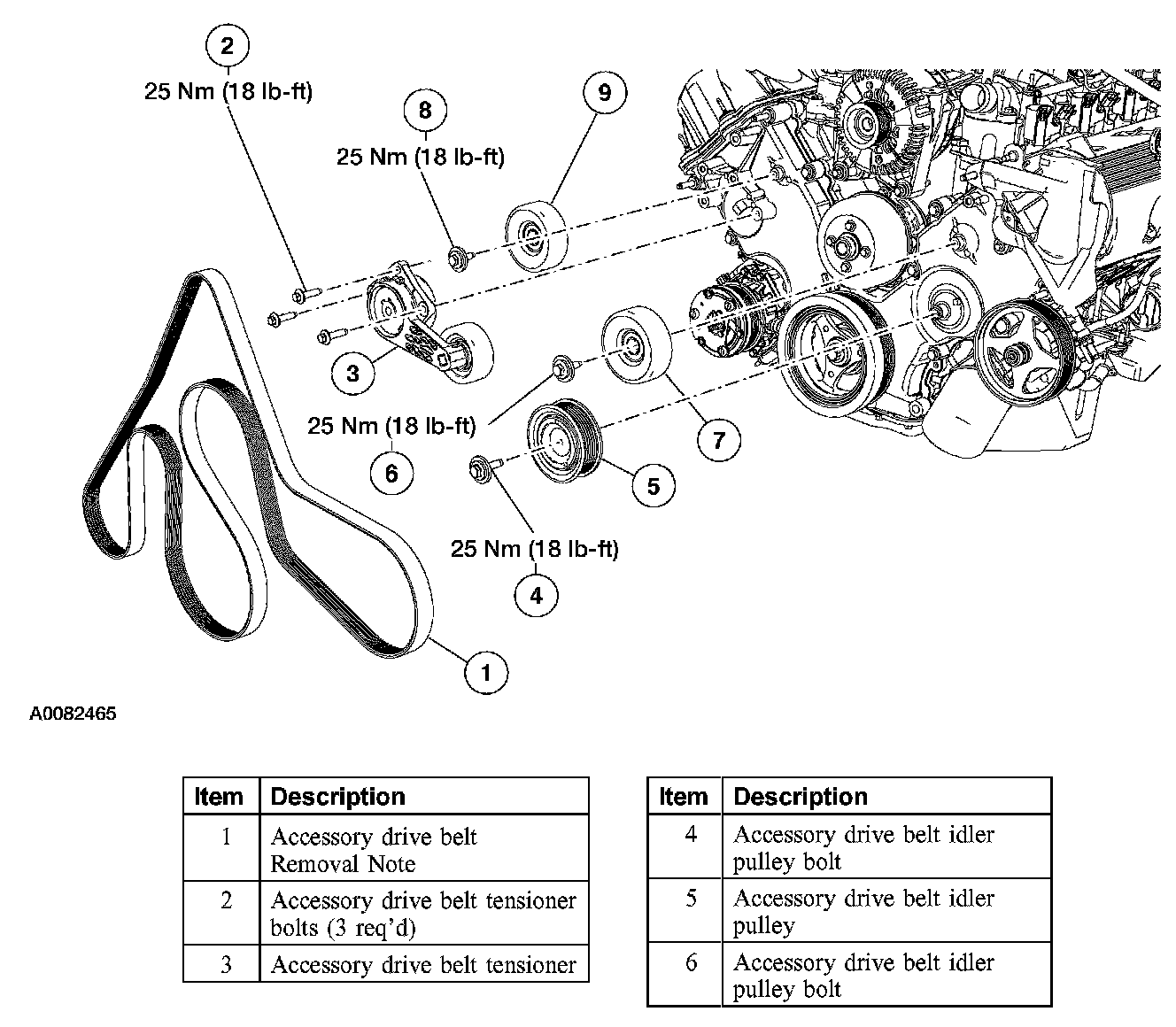

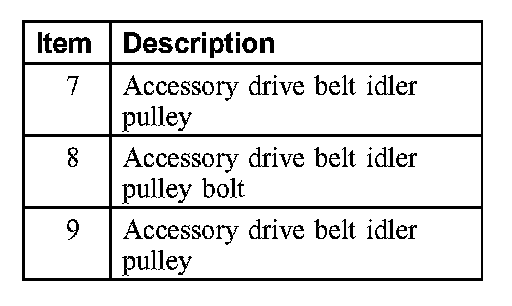

2. Remove the parts in the order indicated in the illustration and table.

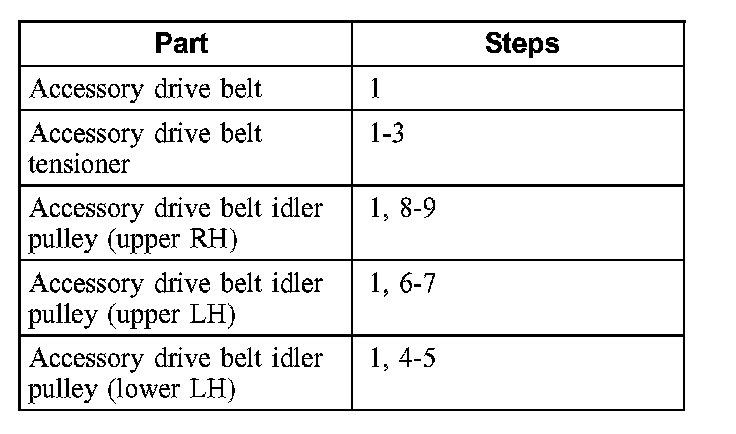

To remove individual parts, only carry out the listed stems:





3. To install, reverse the removal procedure.

Item 1: Accessory Drive Belt Removal Note

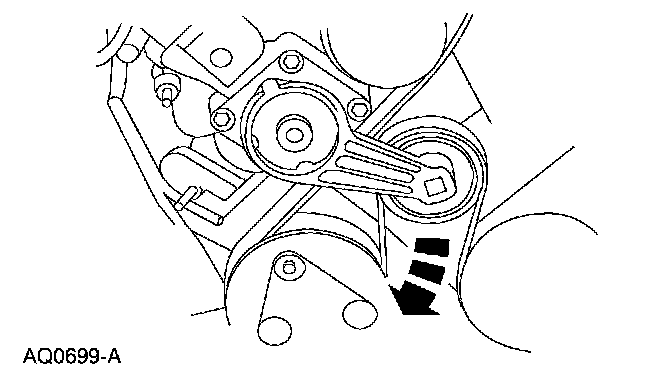

1. Rotate the tensioner clockwise and remove the drive belt.
