Air Register: Service and Repair
INSTRUMENT PANEL REGISTERSREMOVAL

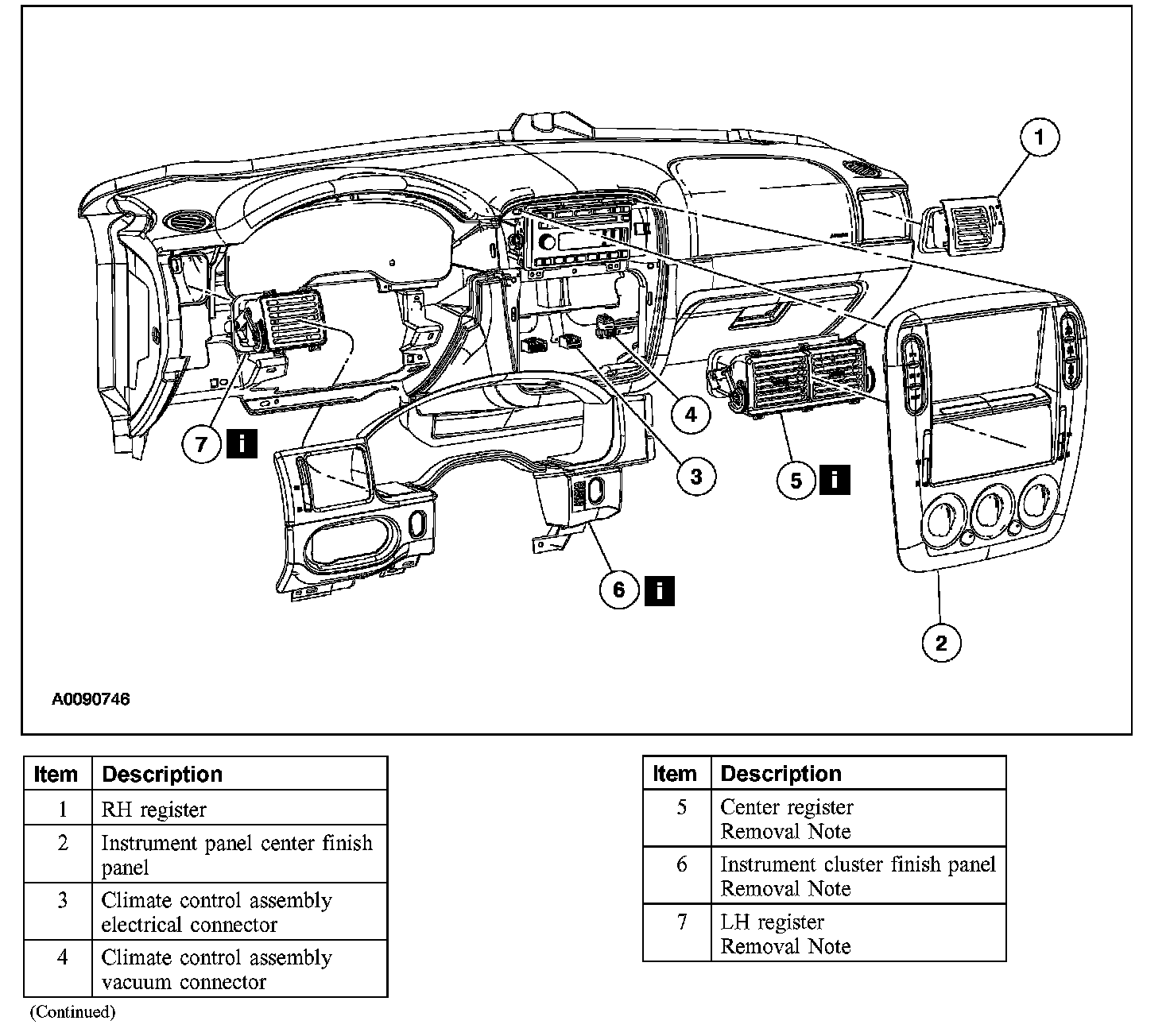

1. Remove the parts in the order indicated in the illustration and table.

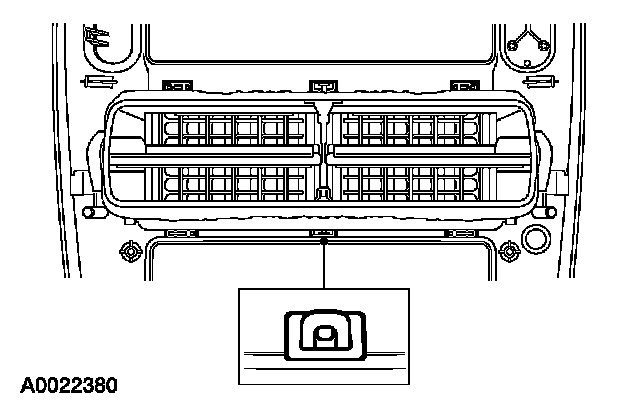

Item 5: Center Register Removal Note
1. Disengage the retaining tabs.
Item 6: Instrument Cluster Finish Panel Removal Note
1. Remove the instrument cluster finish panel.

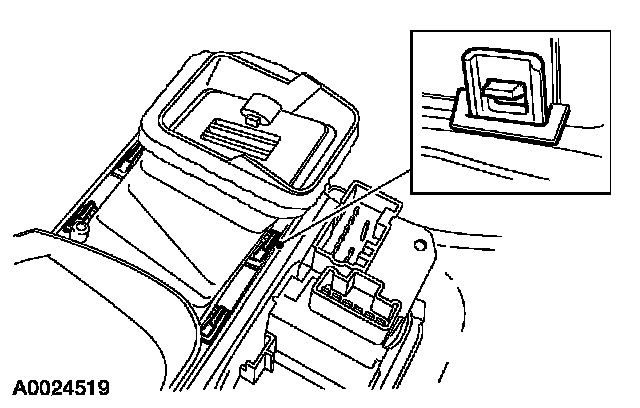

Item 7: Driver Side Register Removal Note
1. Disengage the retaining tabs.
INSTALLATION
1. To install, reverse the removal procedure.
