Multifunction Electronic Modules

DIAGNOSTIC TROUBLE CODE CHART

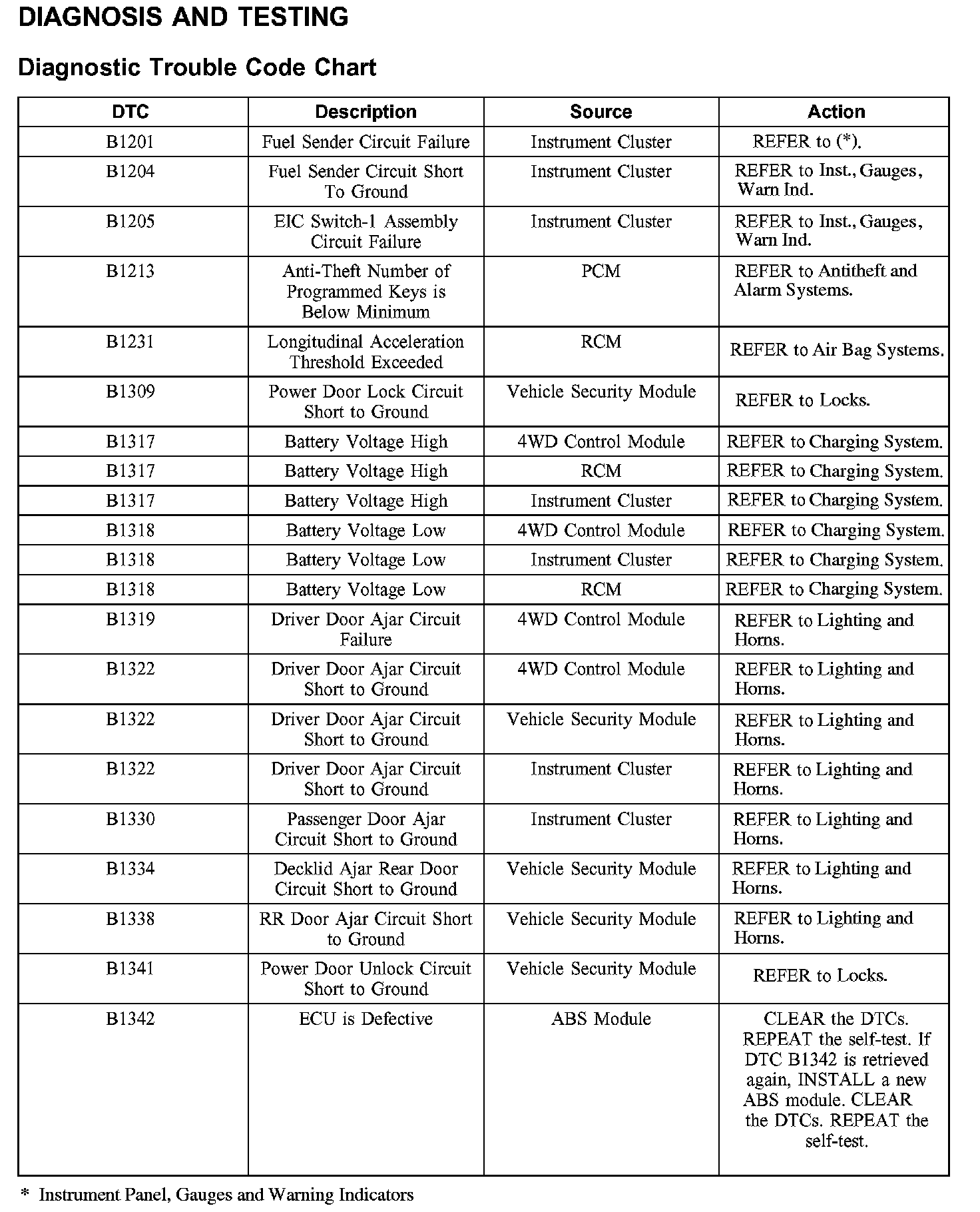

DTC Chart B1201 - B1342:

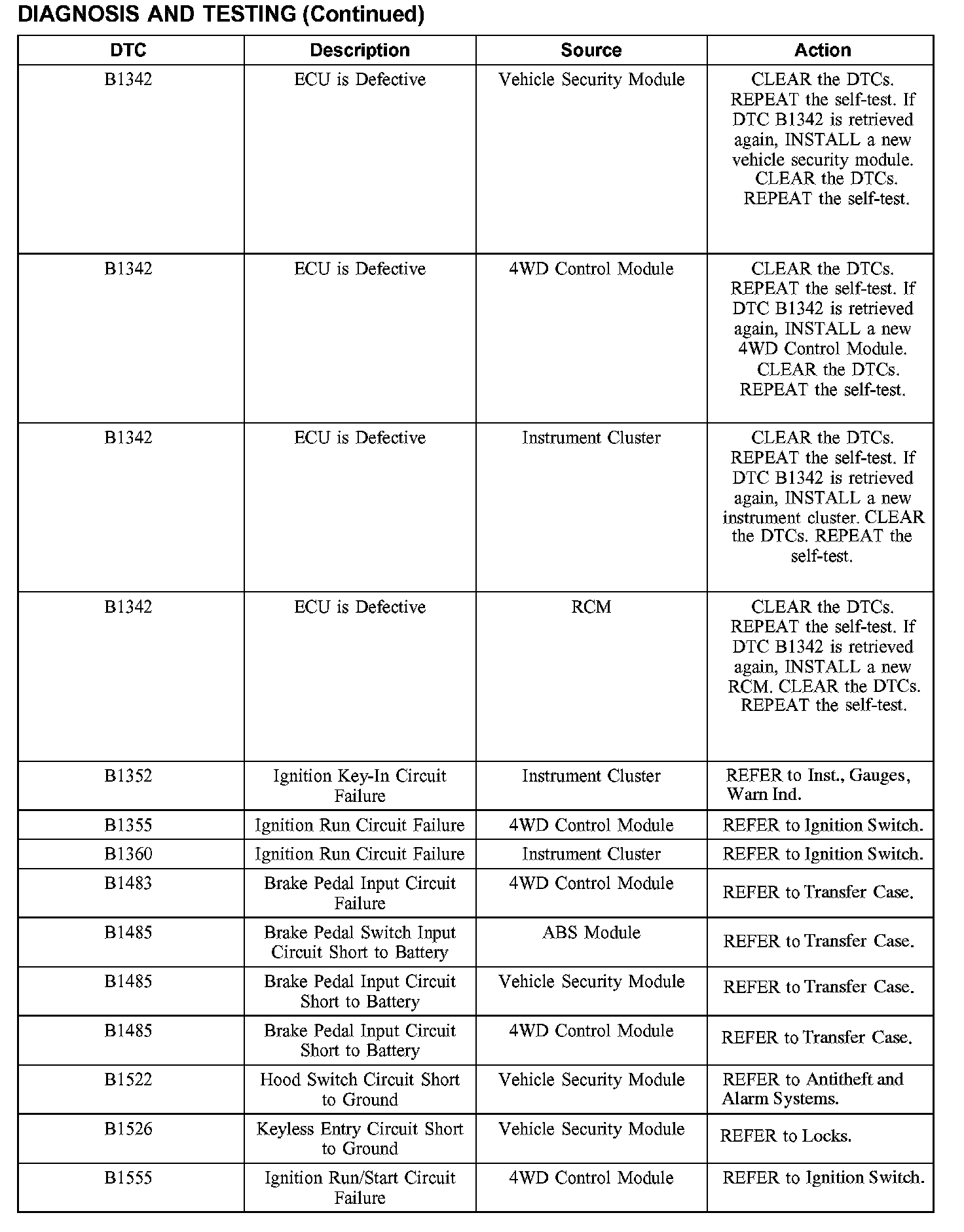

DTC Chart B1342 - B1555:

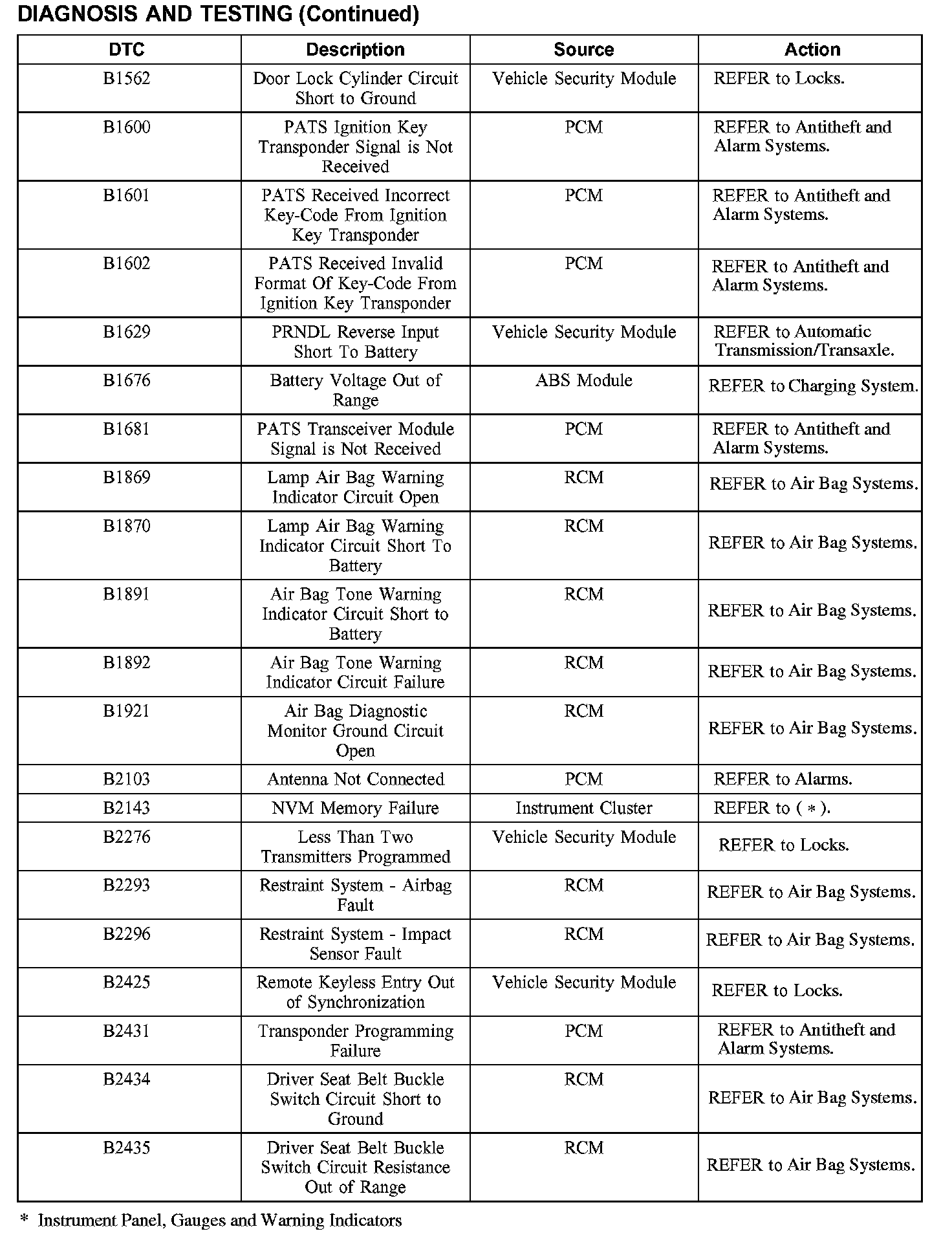

DTC Chart B1562 - B2435:

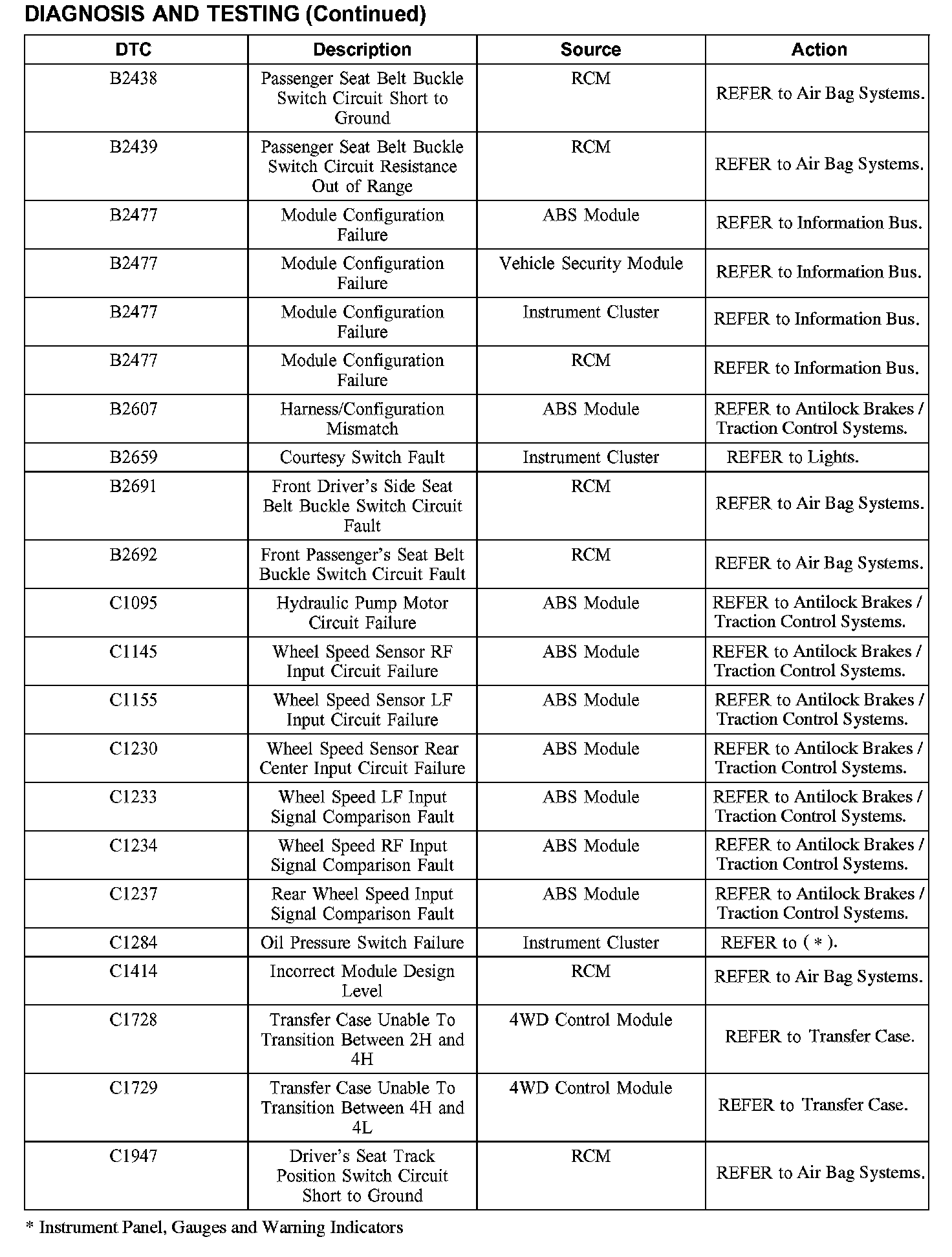

DTC Chart B2438 - C1947:

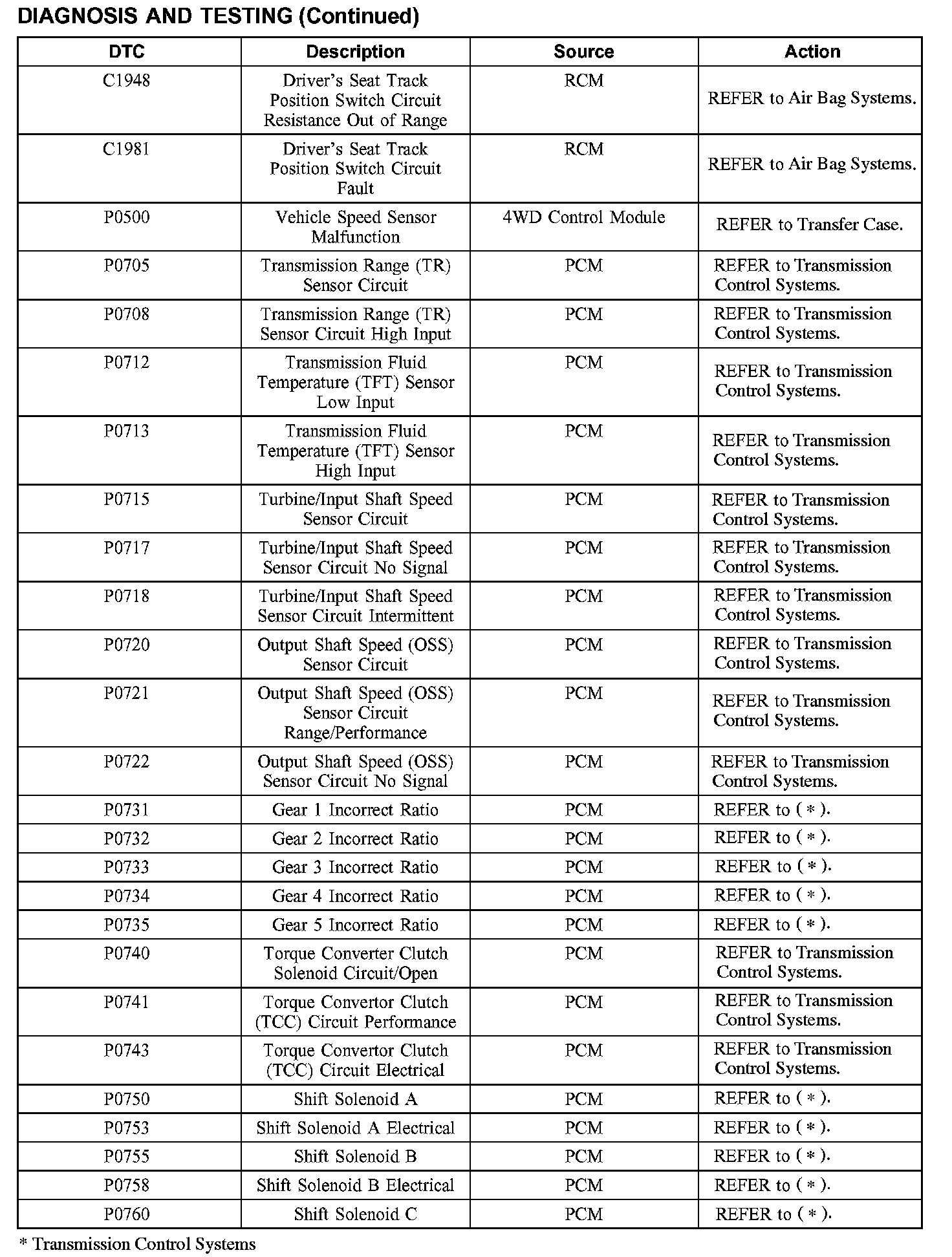

DTC Chart C1948 - P0760:

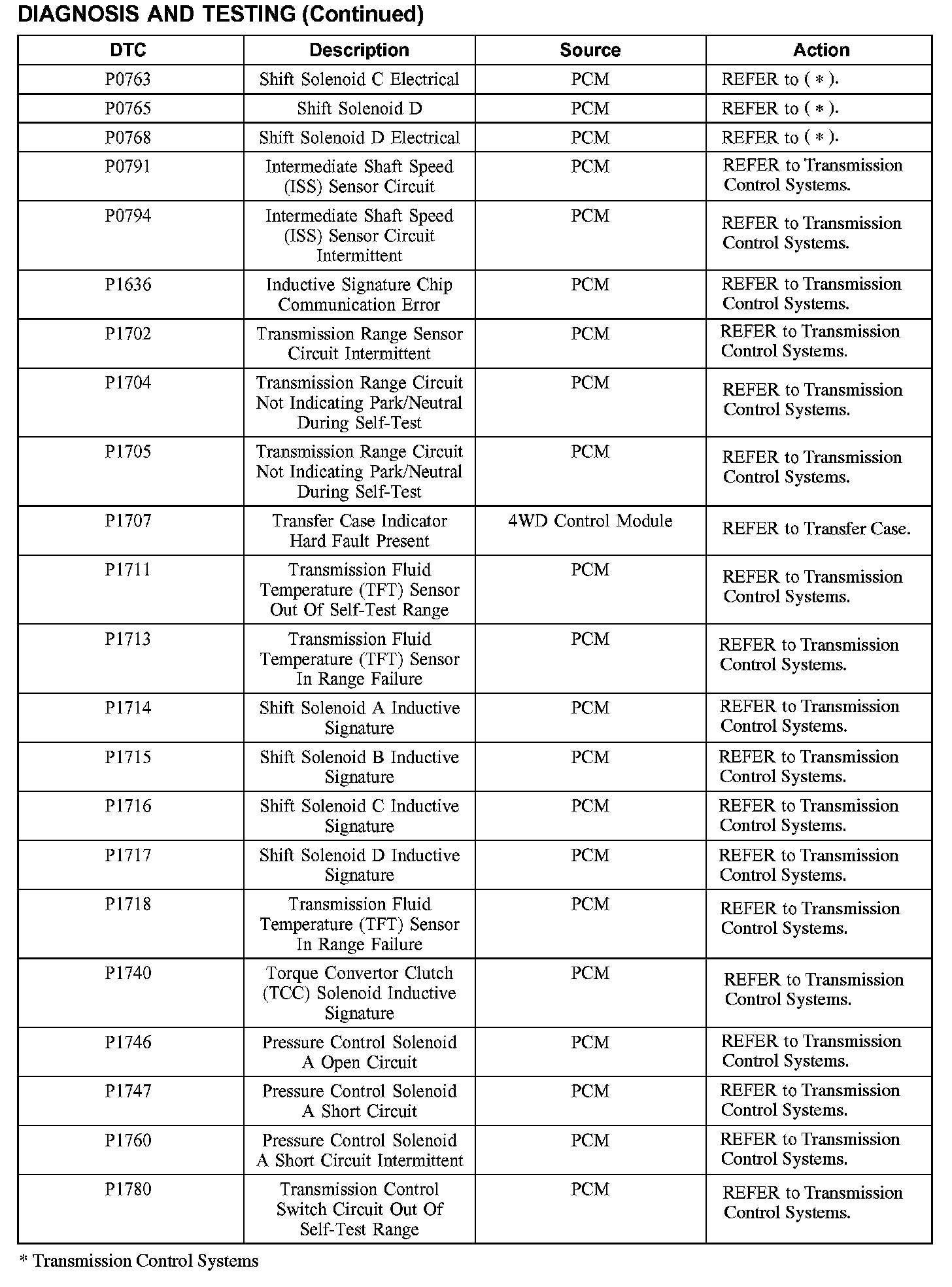

DTC Chart P0763 - P1780:

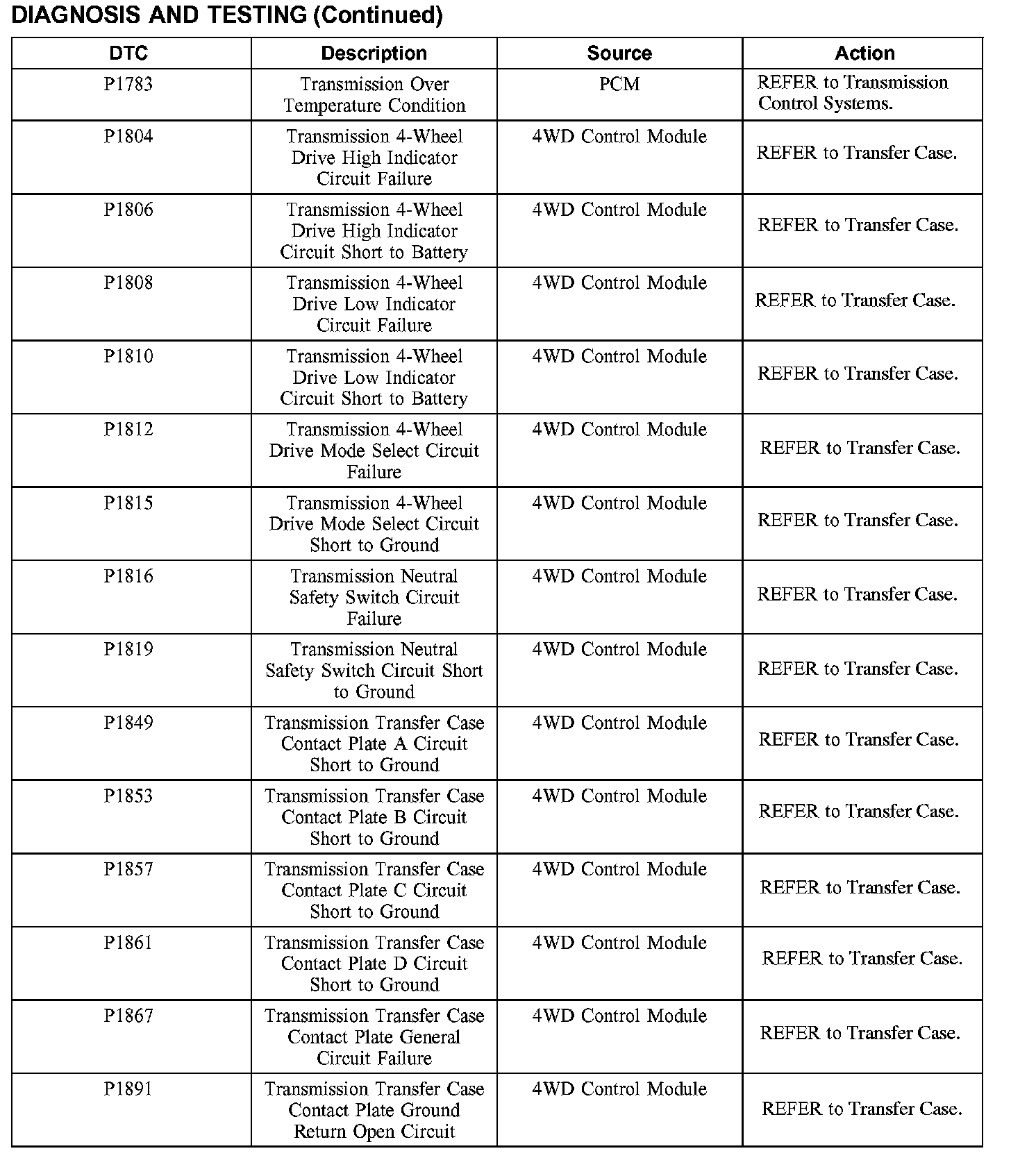

DTC Chart P1783 - P1891:
