Test G
Test G
PINPOINT TEST G: ALL DOOR LOCKS ARE INOPERATIVE
Test G1-G4:

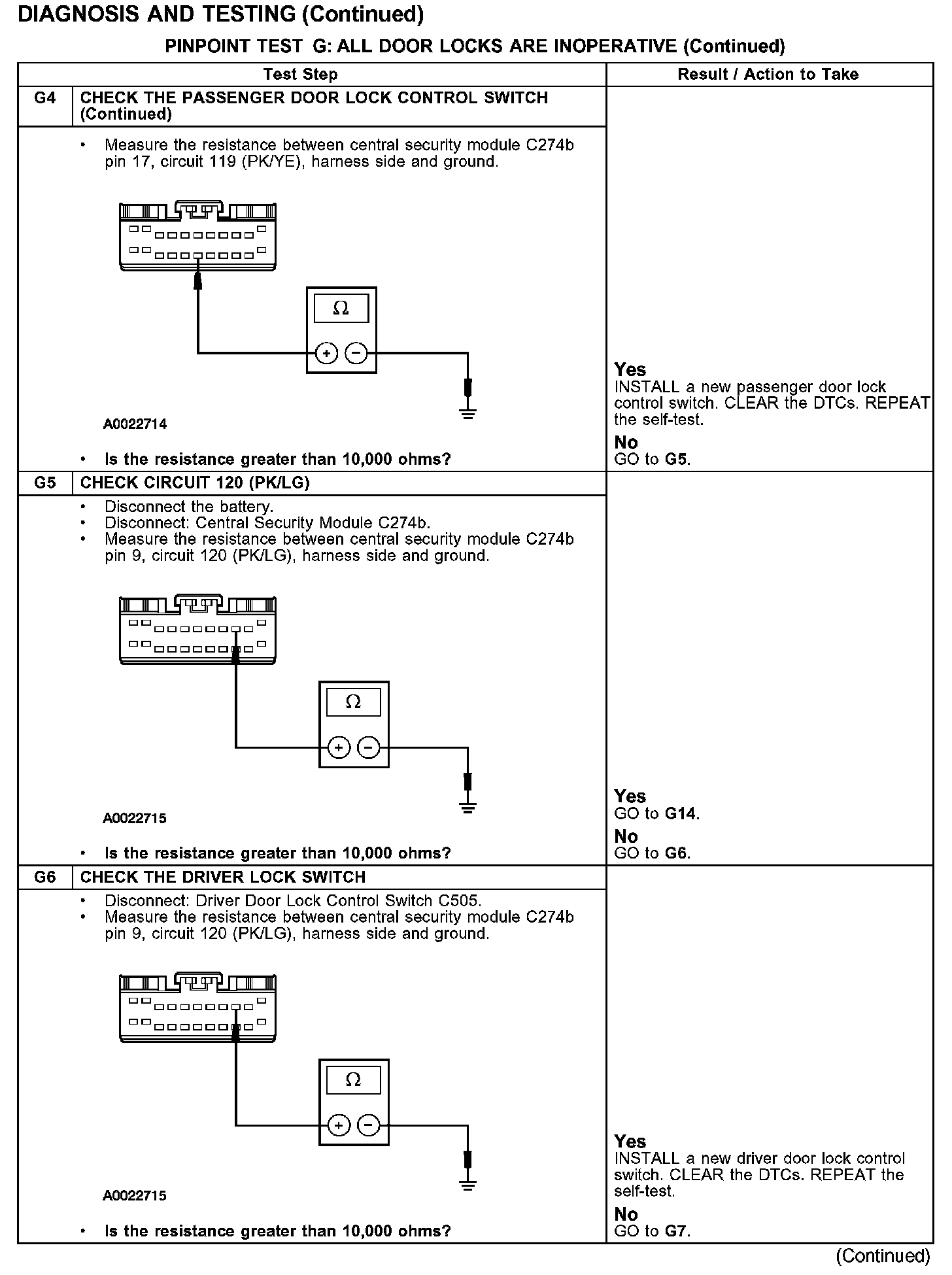

Test G4-G6:

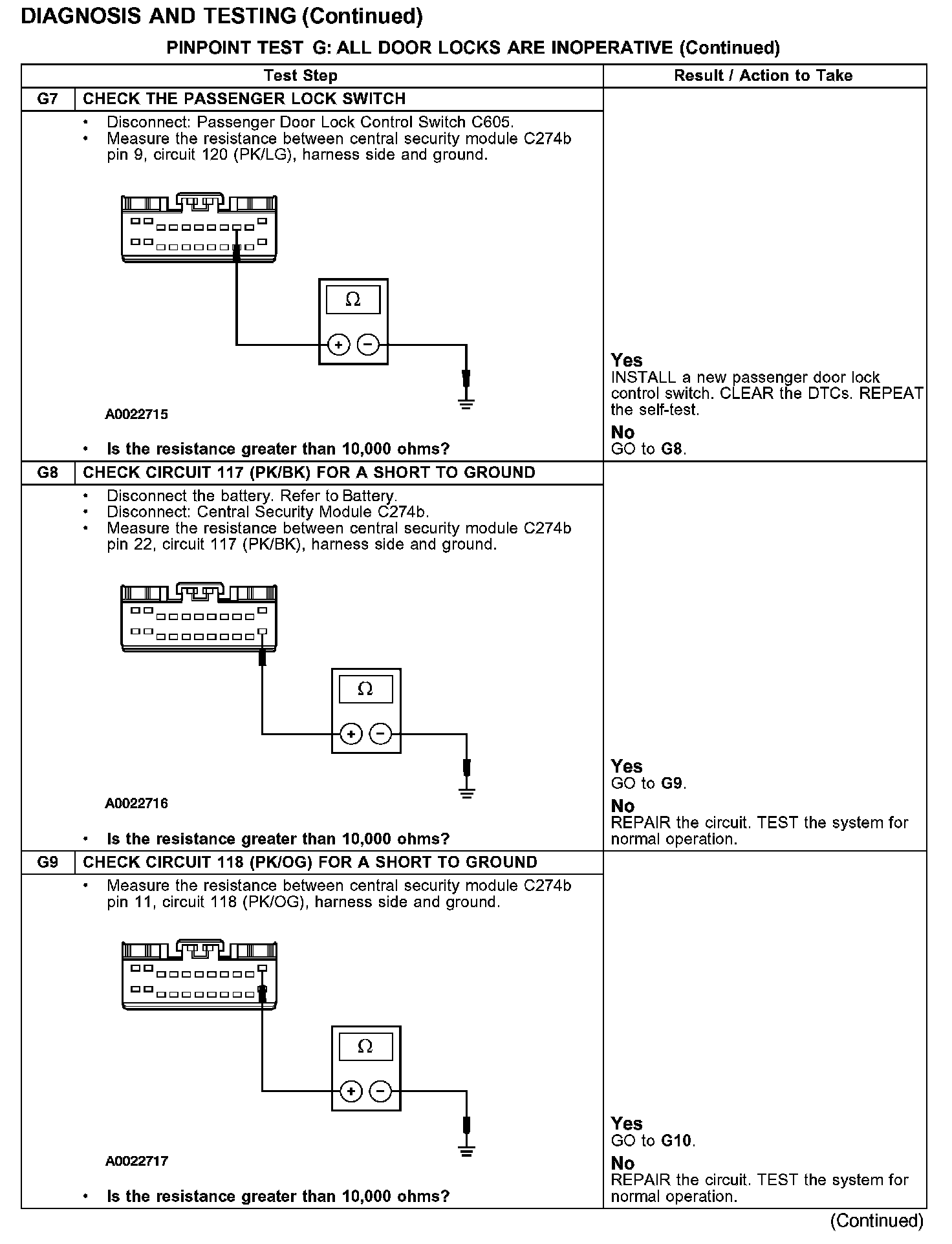

Test G7-G9:

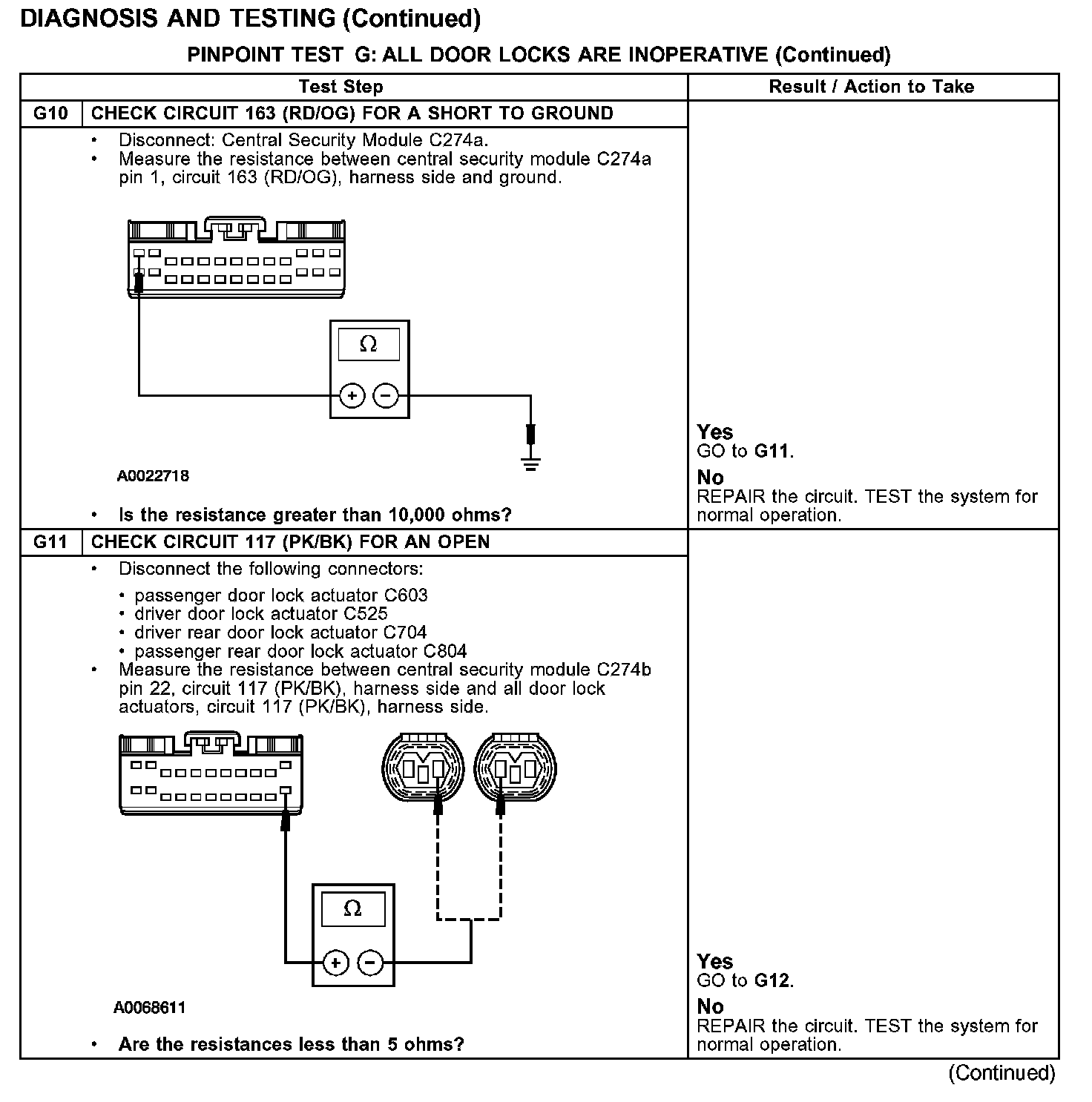

Test G10-G11:

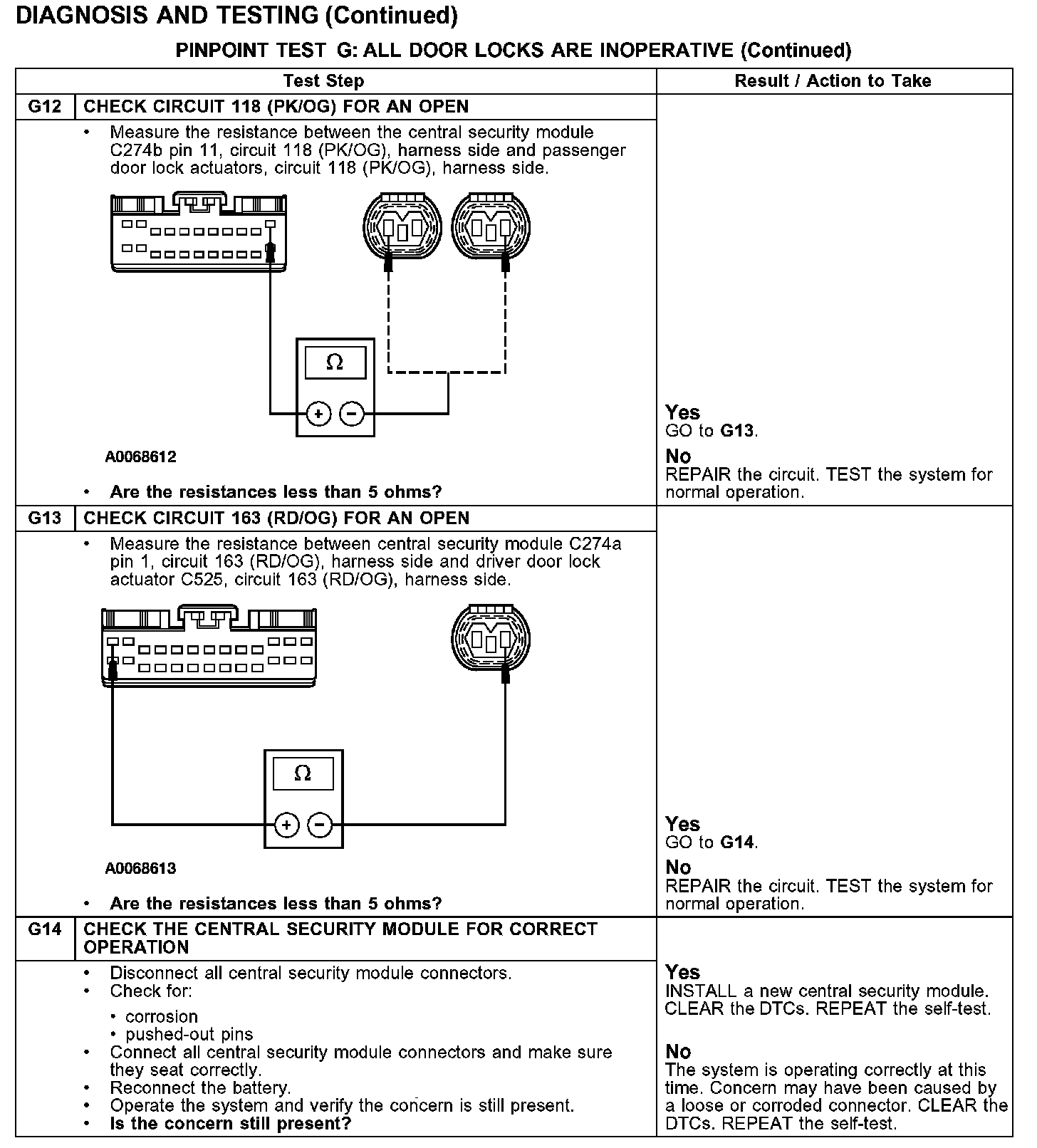

Test G12-G14:
