Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2004
>>
Explorer Sport Trac 2WD V6-4.0L VIN K Flex Fuel
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Module Controlled
>>
Test J
Test J
PINPOINT TEST J: THE AUTOLOCK DOES NOT OPERATE CORRECTLY

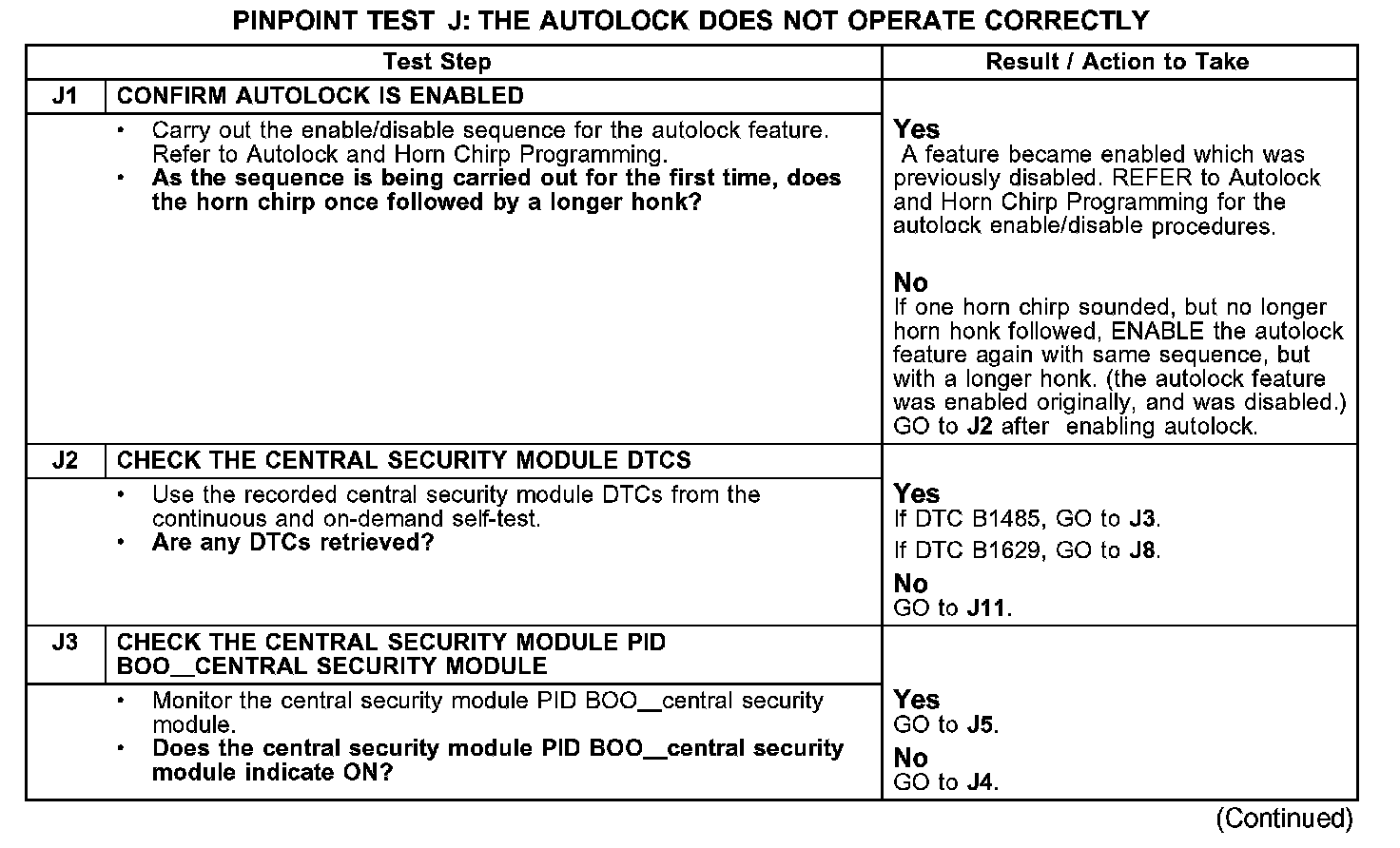

Test J1-J3:

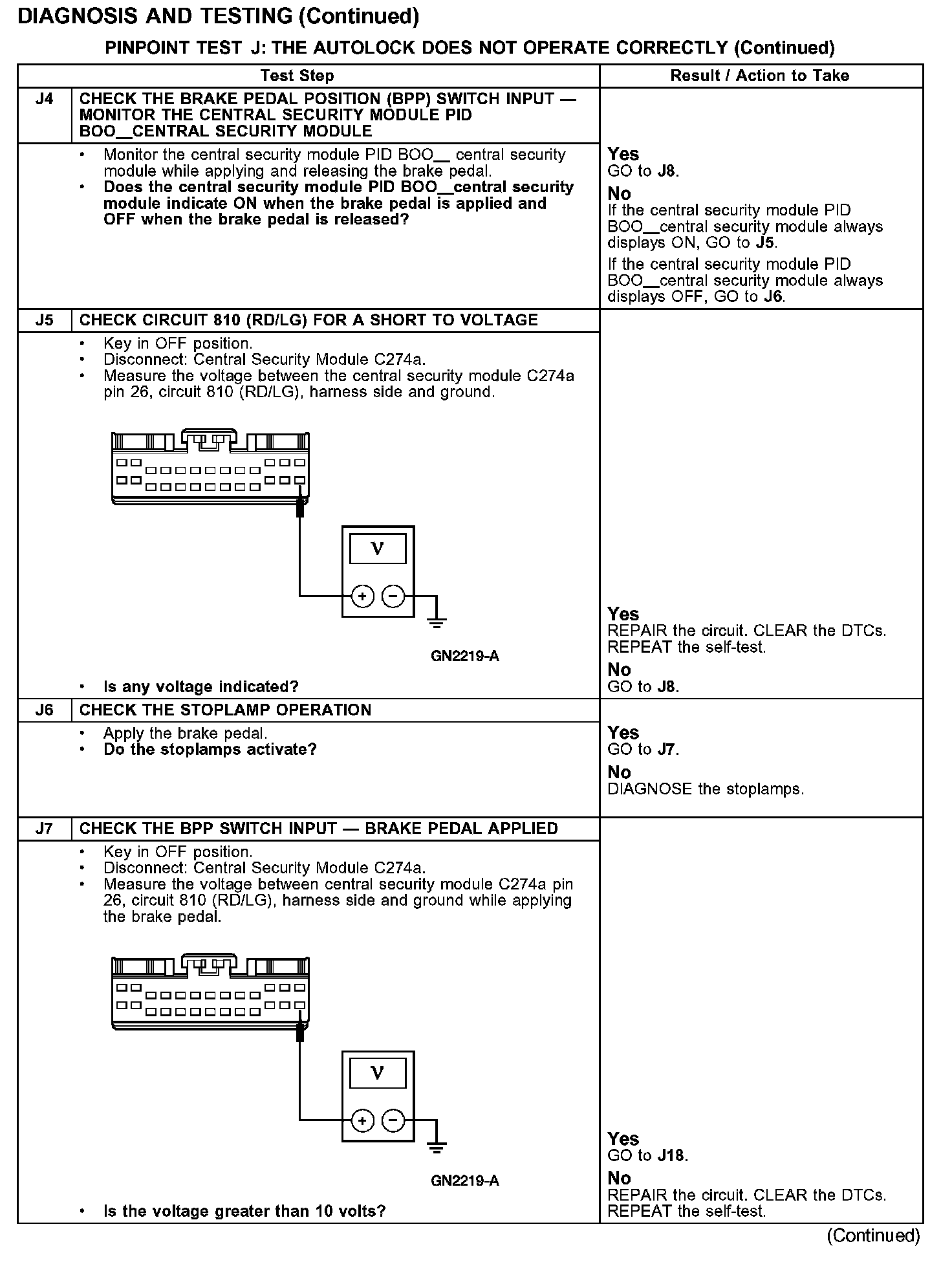

Test J4-J7:

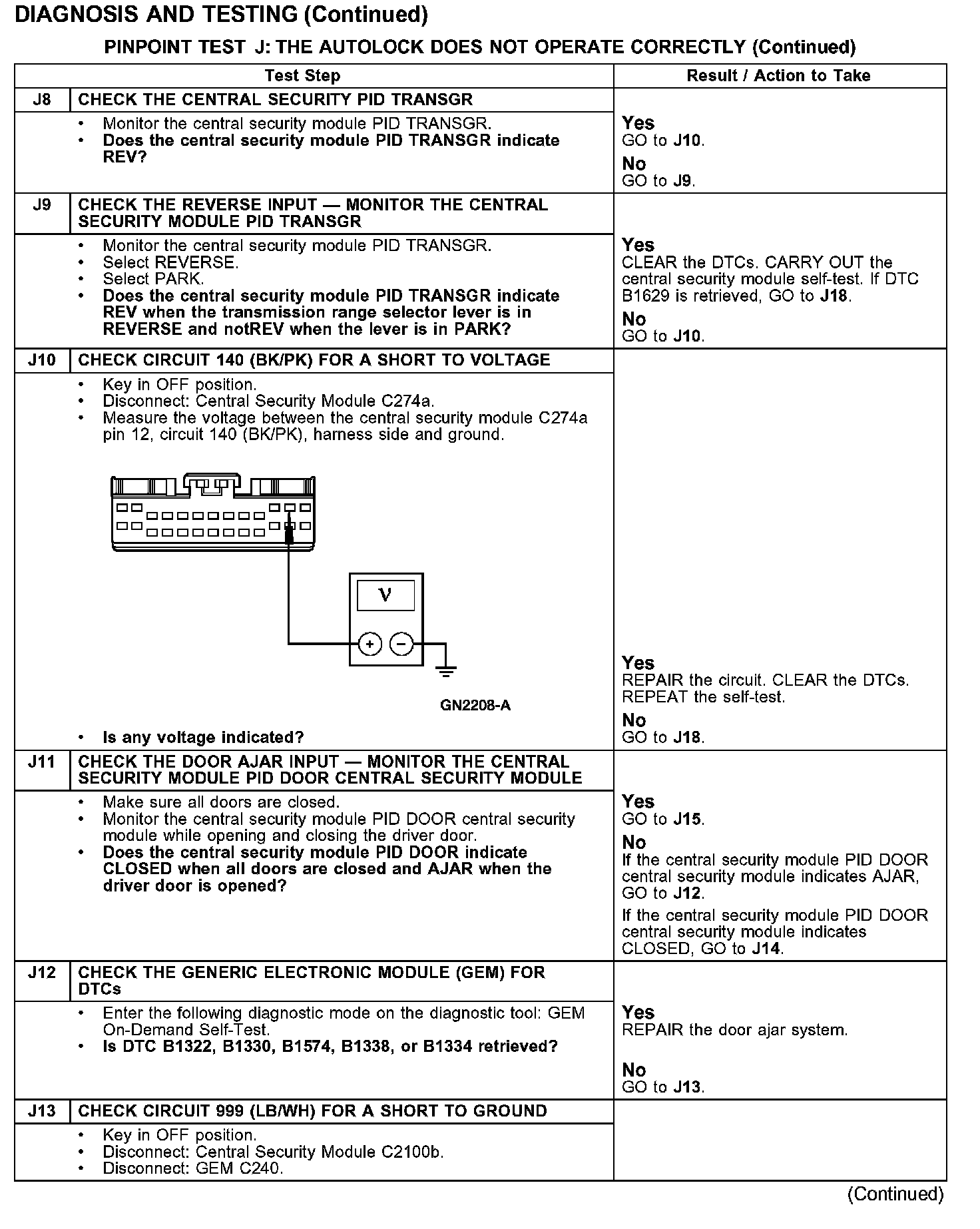

Test J8-J13:

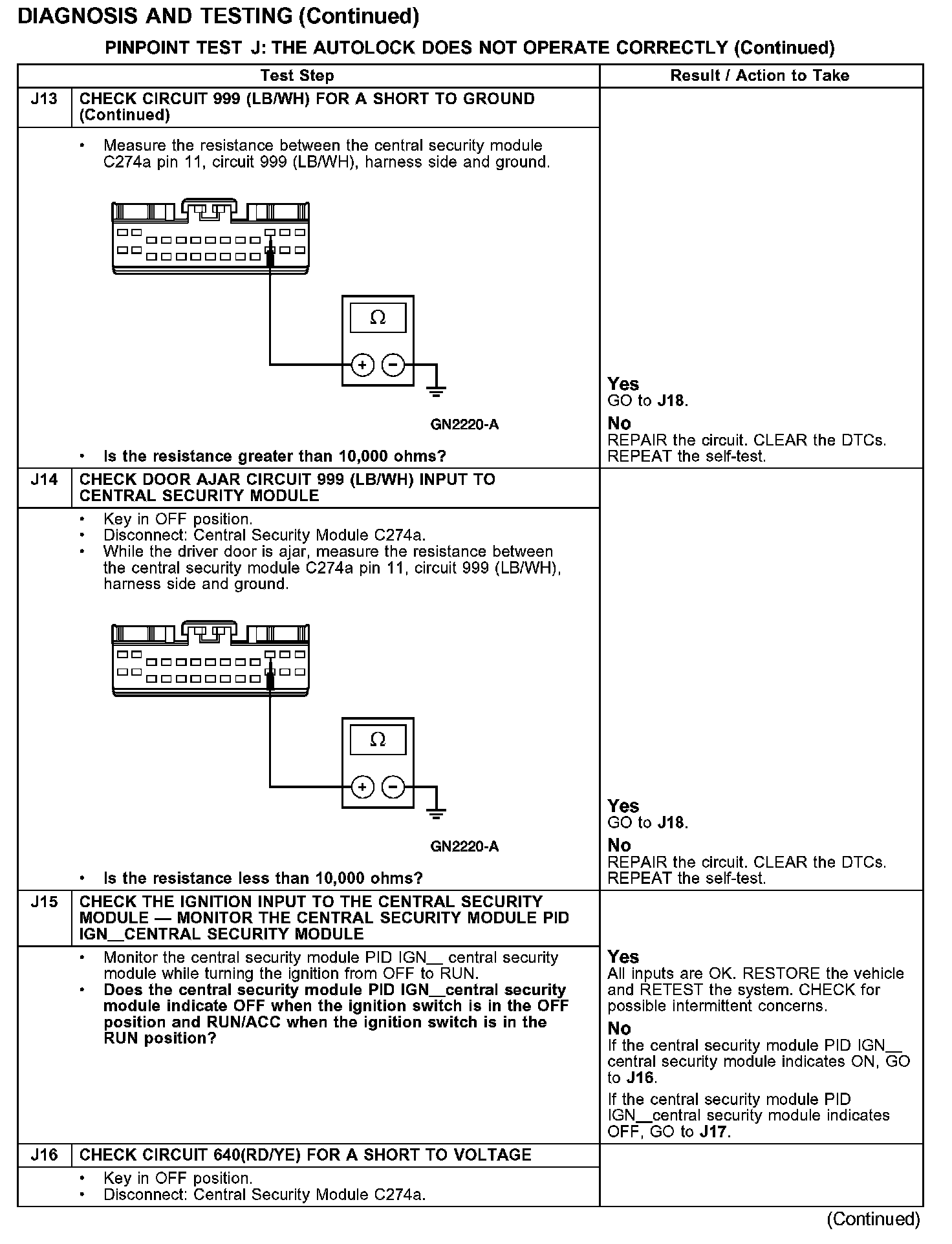

Test J13-J16:

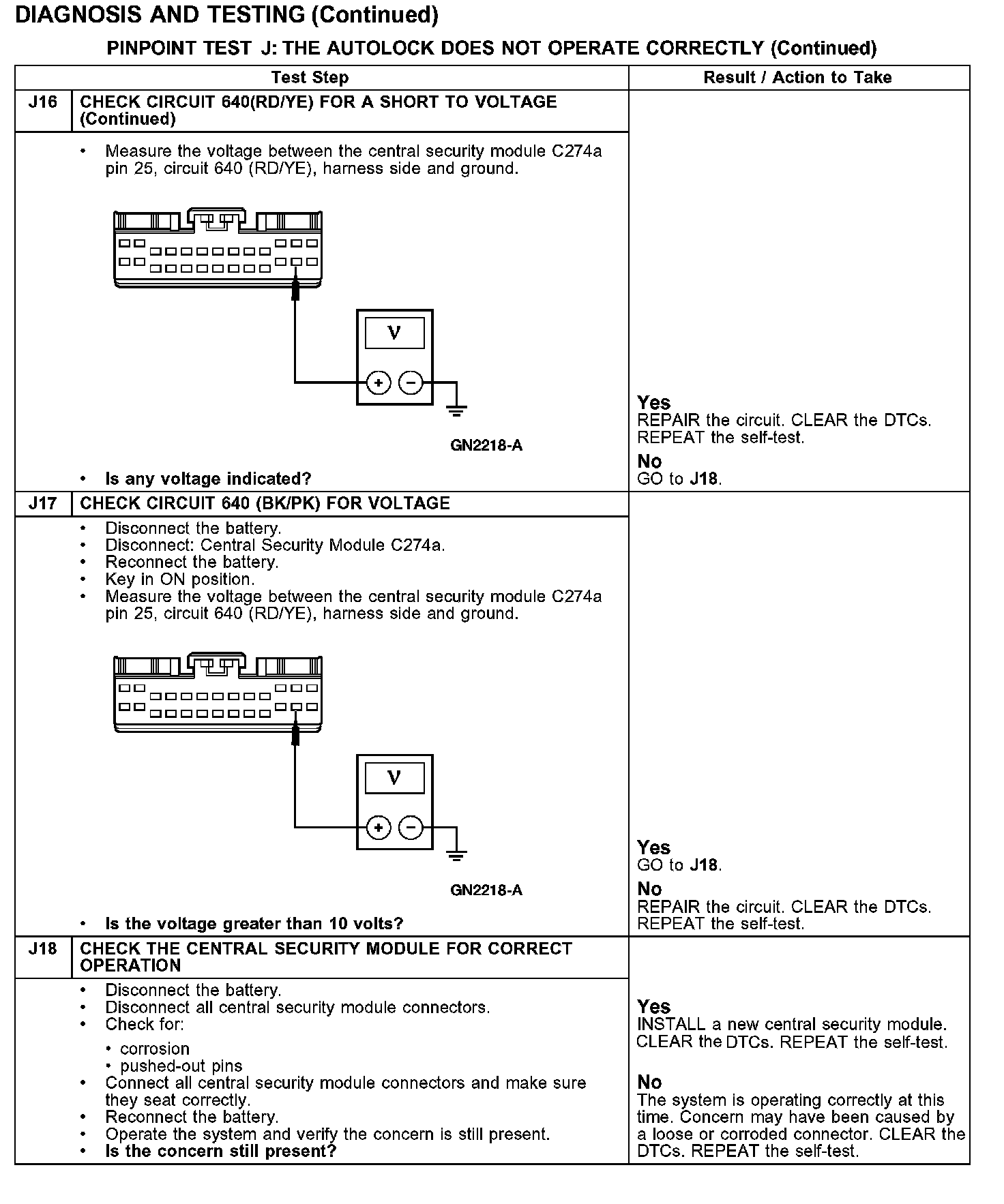

Test J16-J18:
