PINPOINT TEST K: THE DOORS DO NOT LOCK/UNLOCK USING THE
KEYLESS ENTRY
KEYPAD

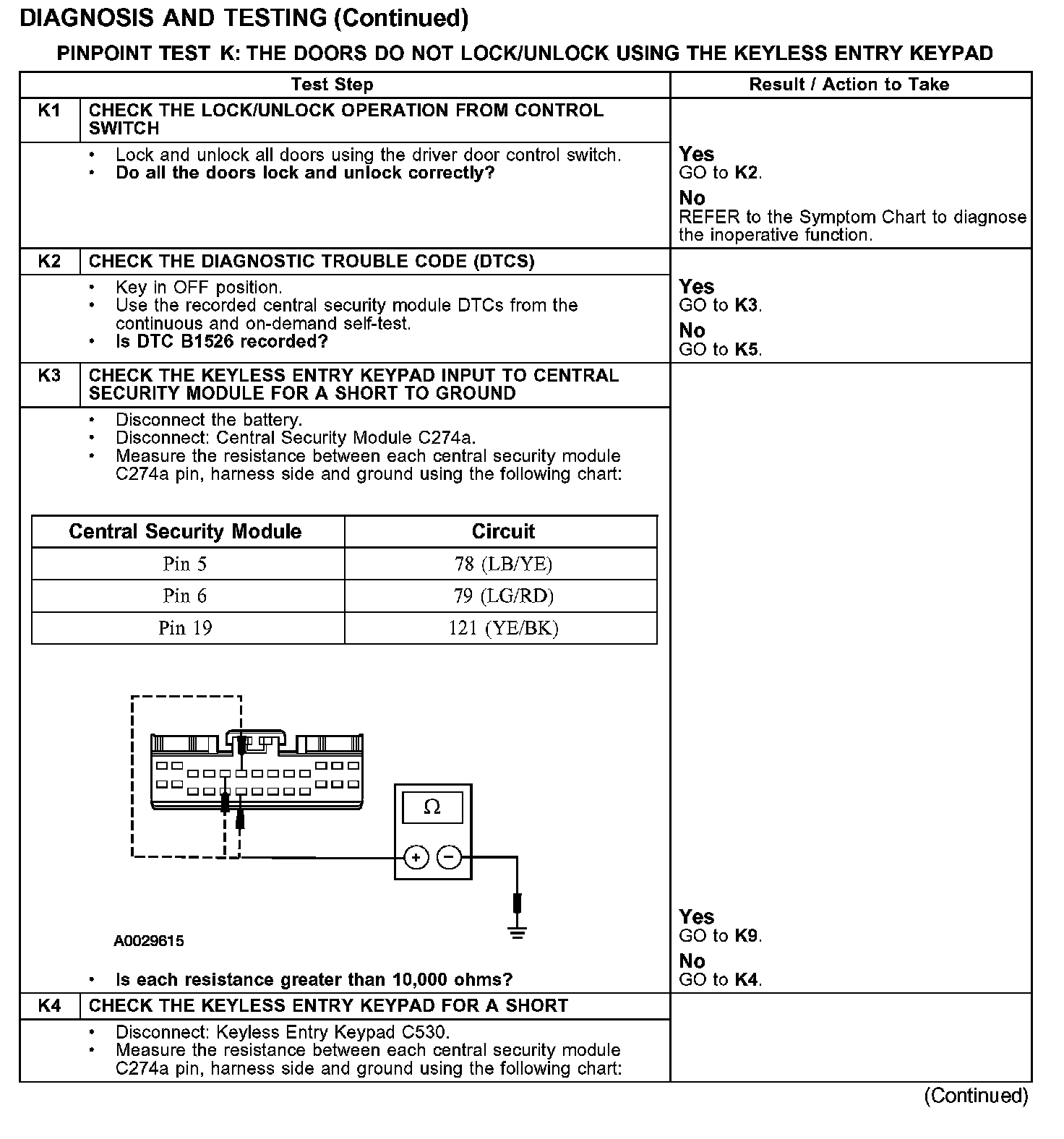

Test K1-K4:

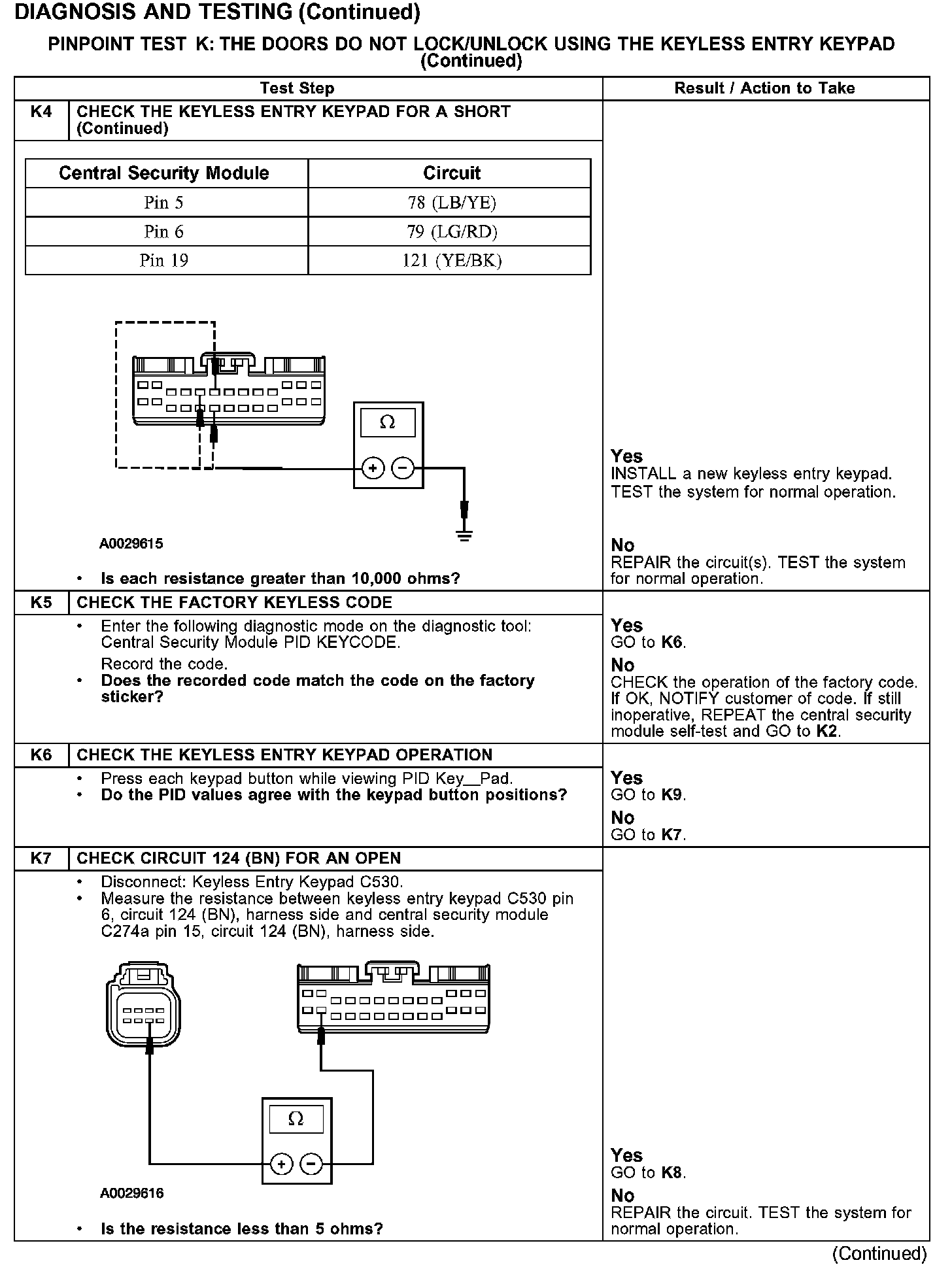

Test K4-K7:

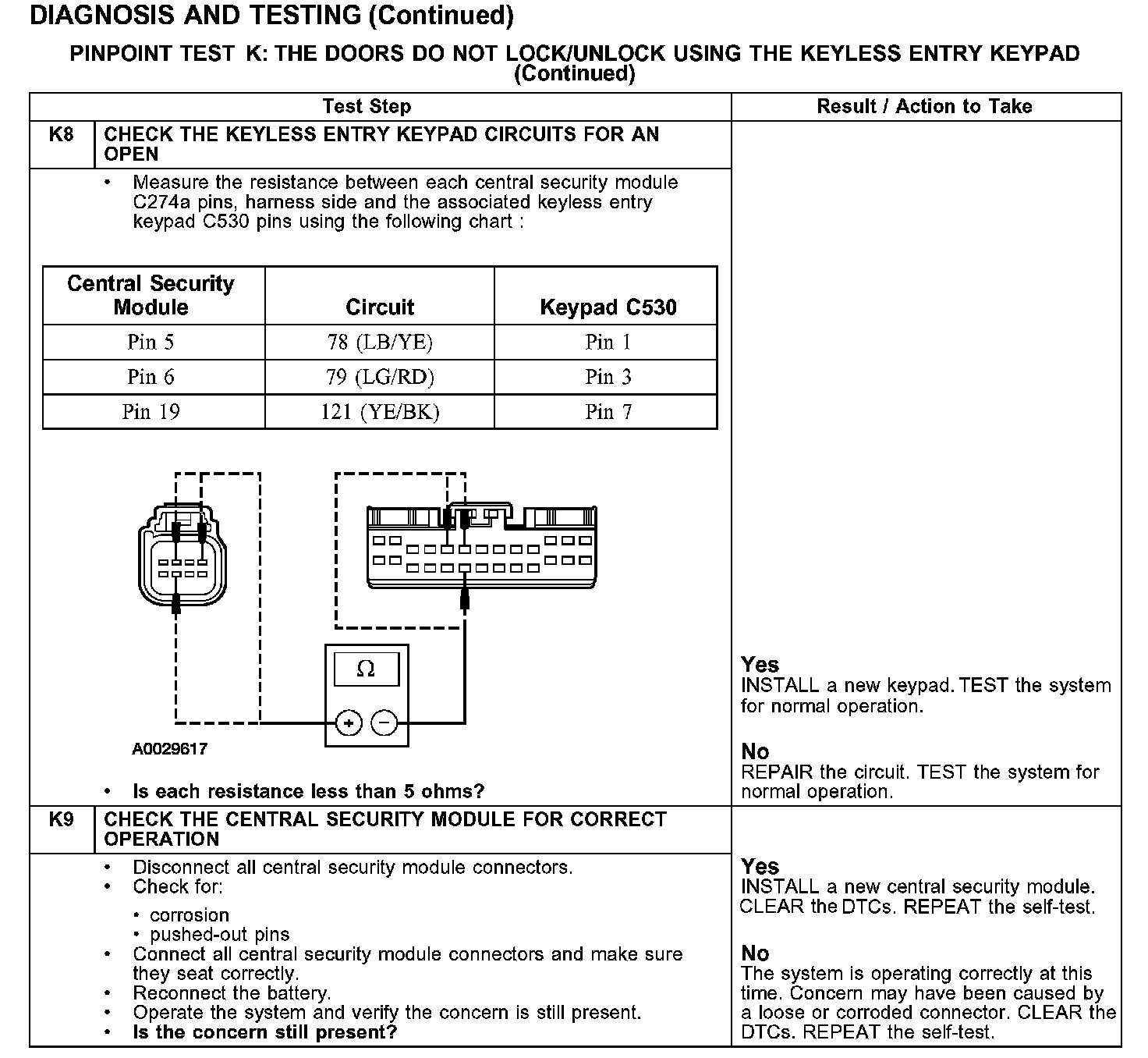

Test K8-K9:
