PINPOINT TEST L: THE DOORS DO NOT LOCK / UNLOCK USING THE REMOTE TRANSMITTER
Test L1:

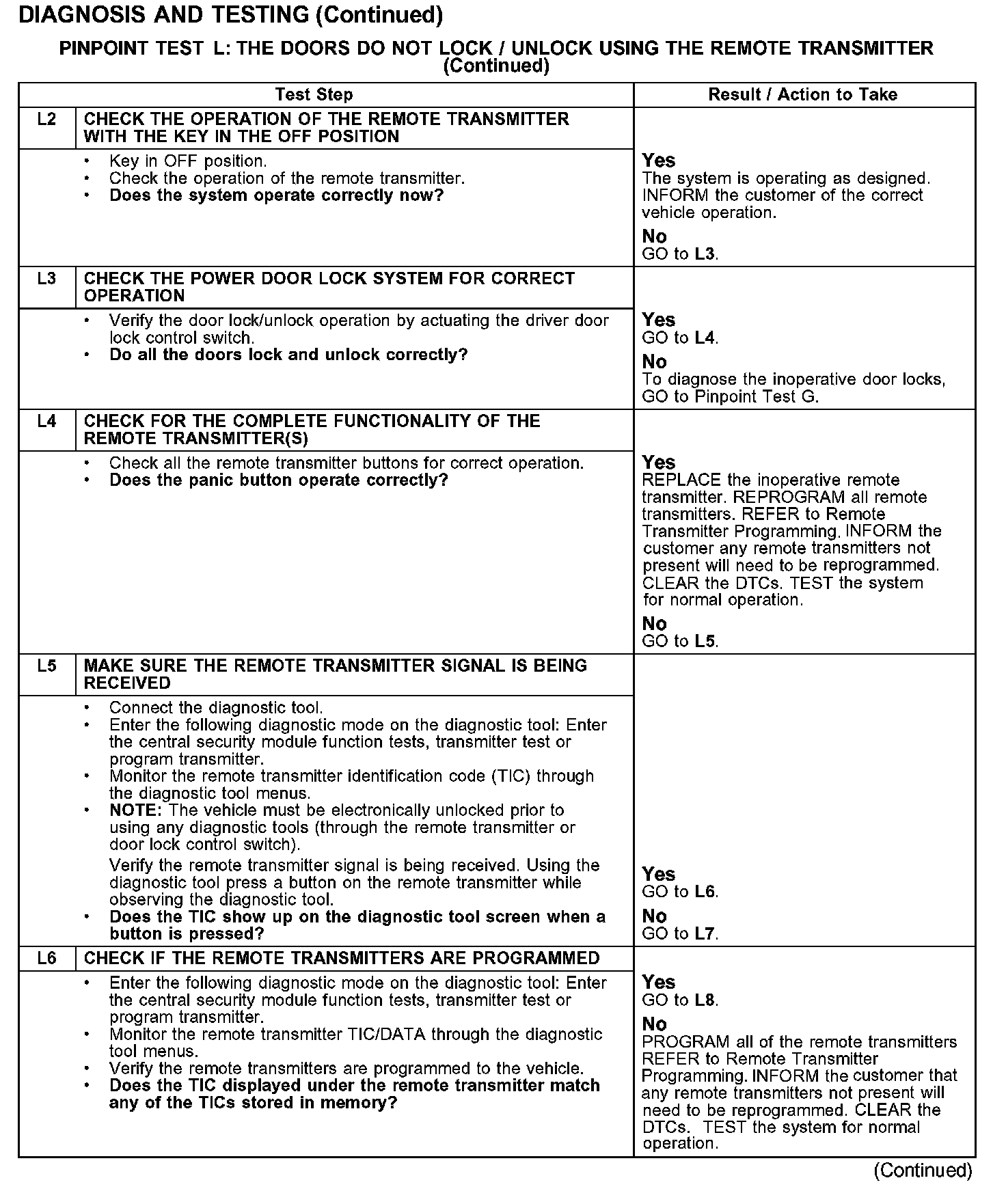

Test L2-L6:

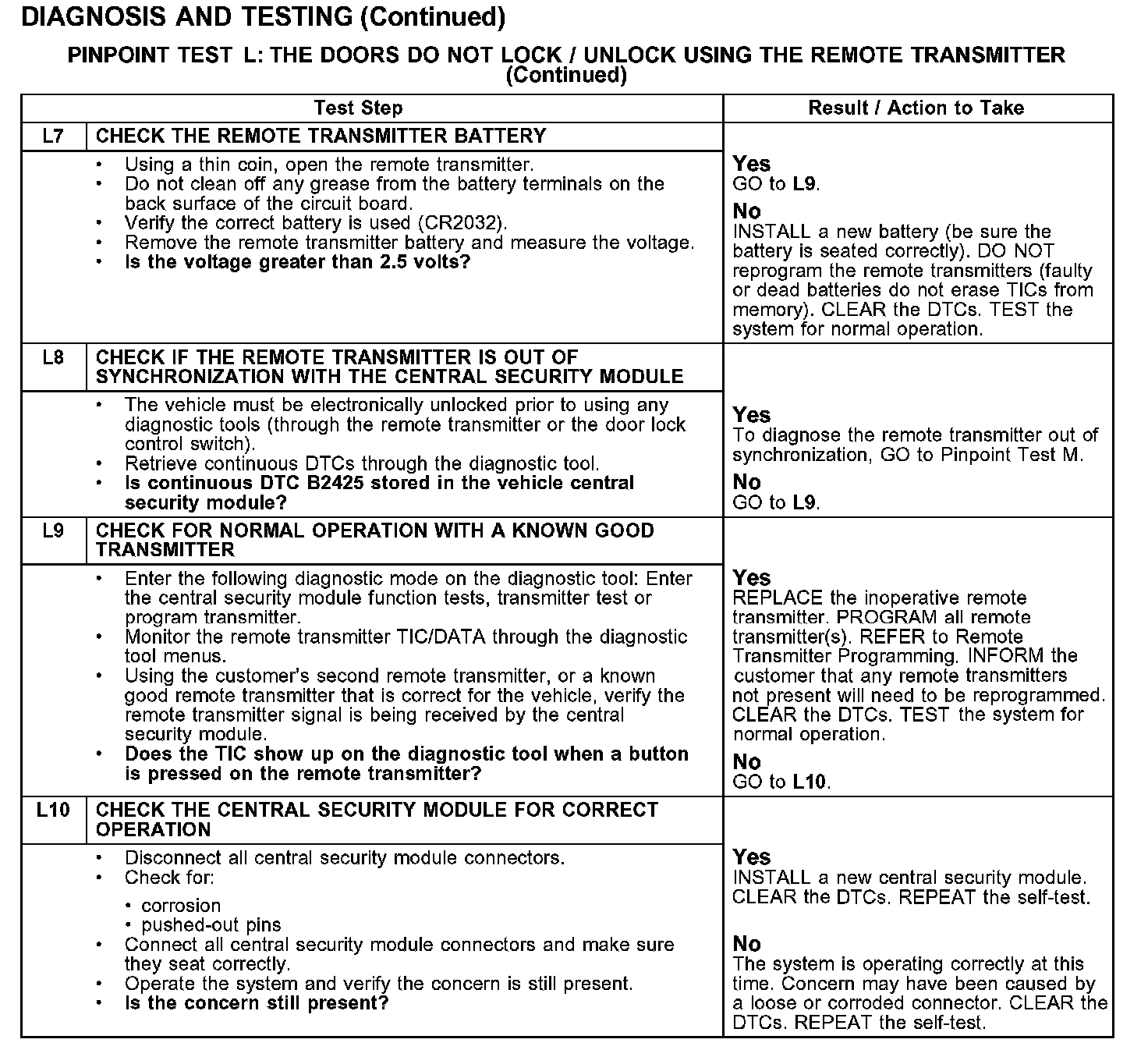

Test L7-L10:
