Test O

PINPOINT TEST O: THE KEYLESS ENTRY KEYPAD ILLUMINATION IS INOPERATIVE

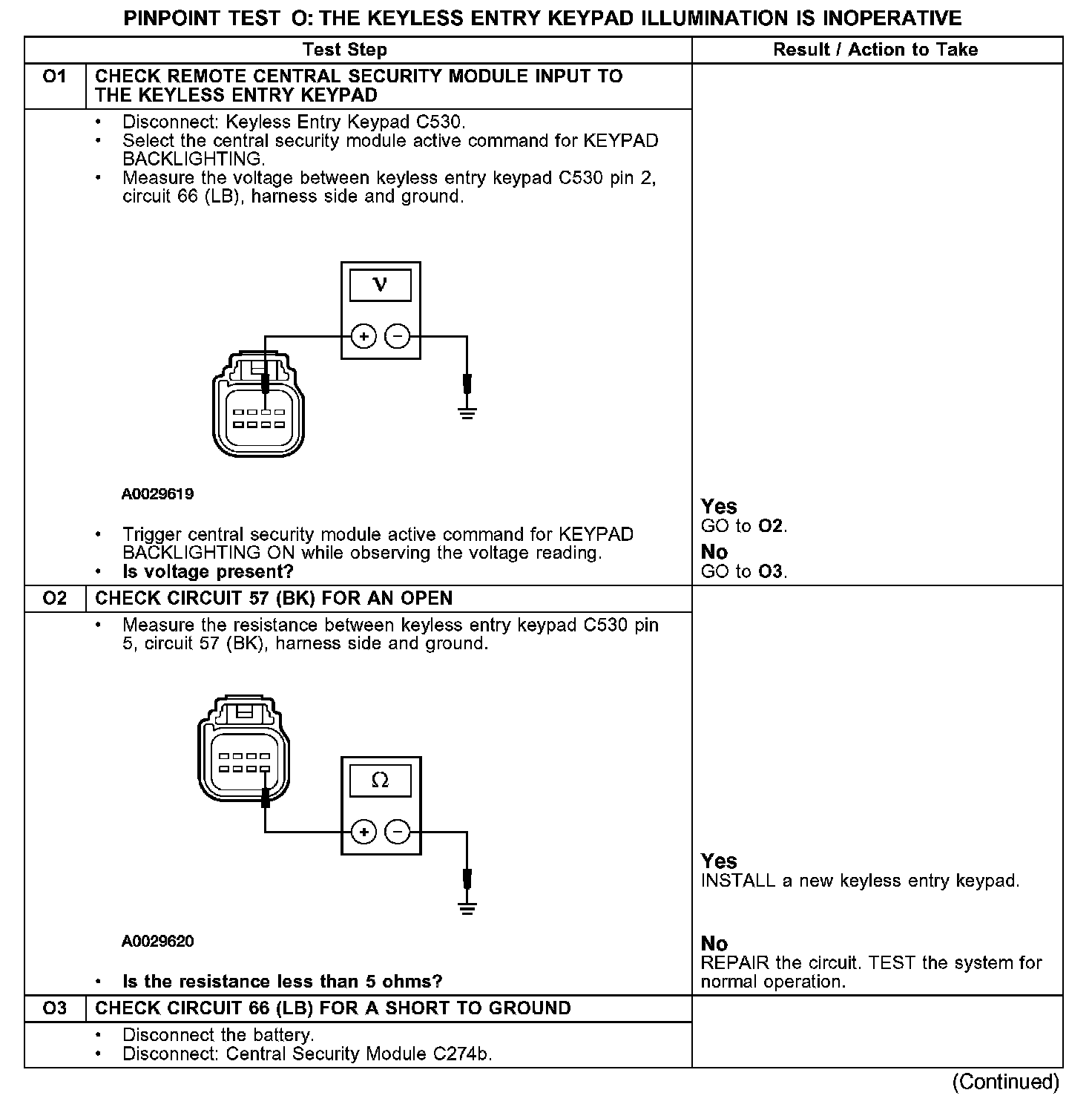

Test O1-O3:

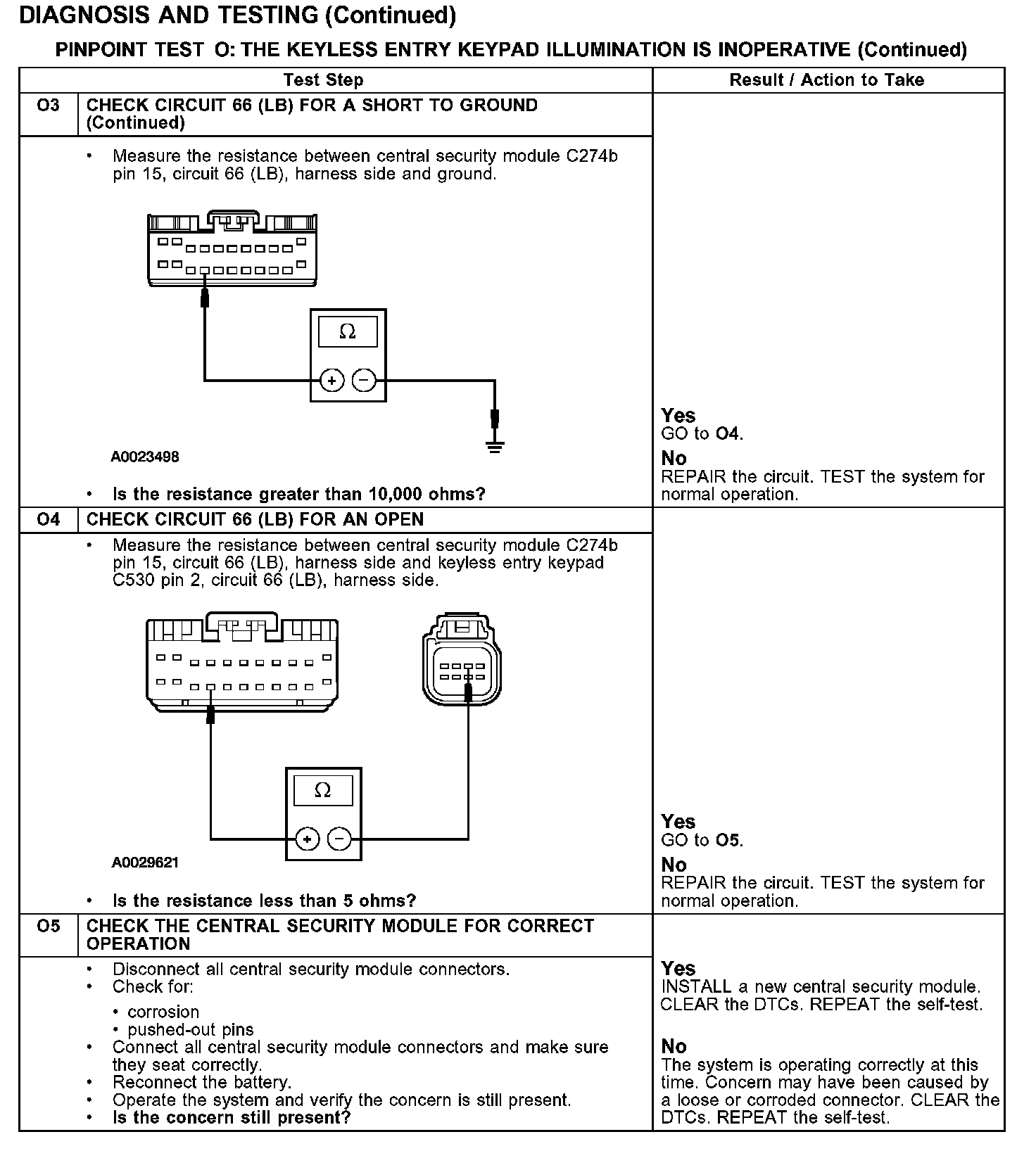

Test O3-O5:
