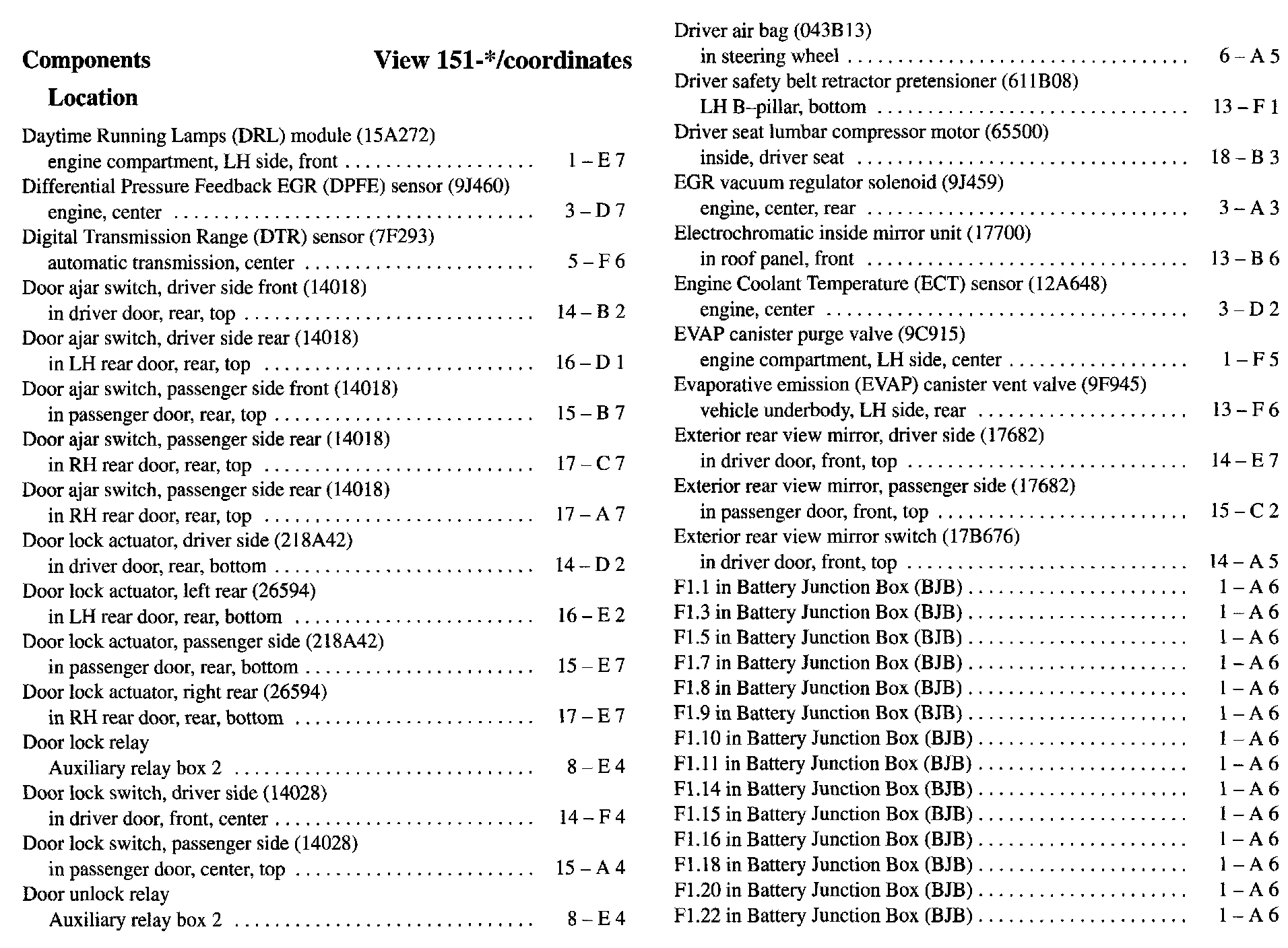

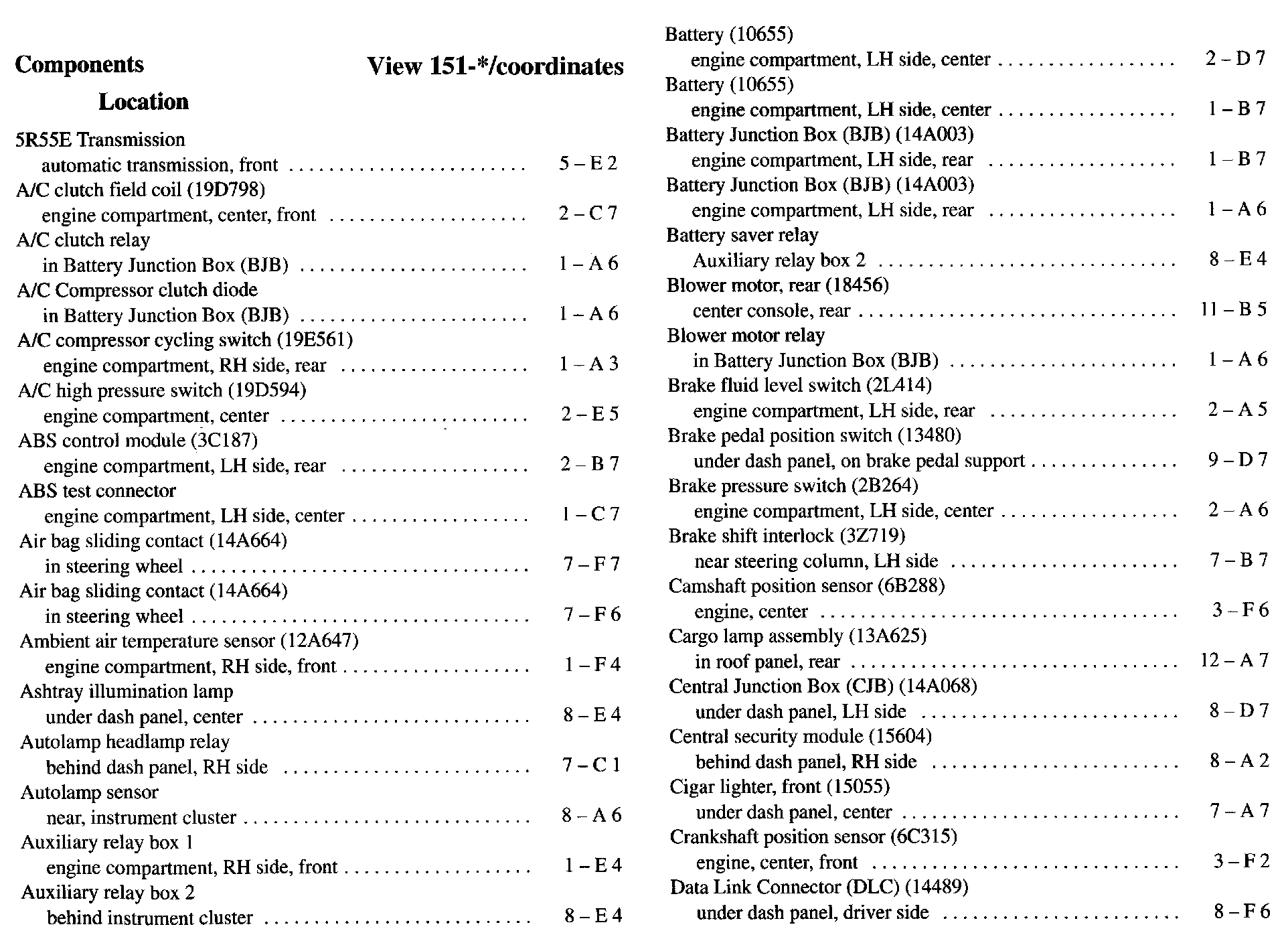

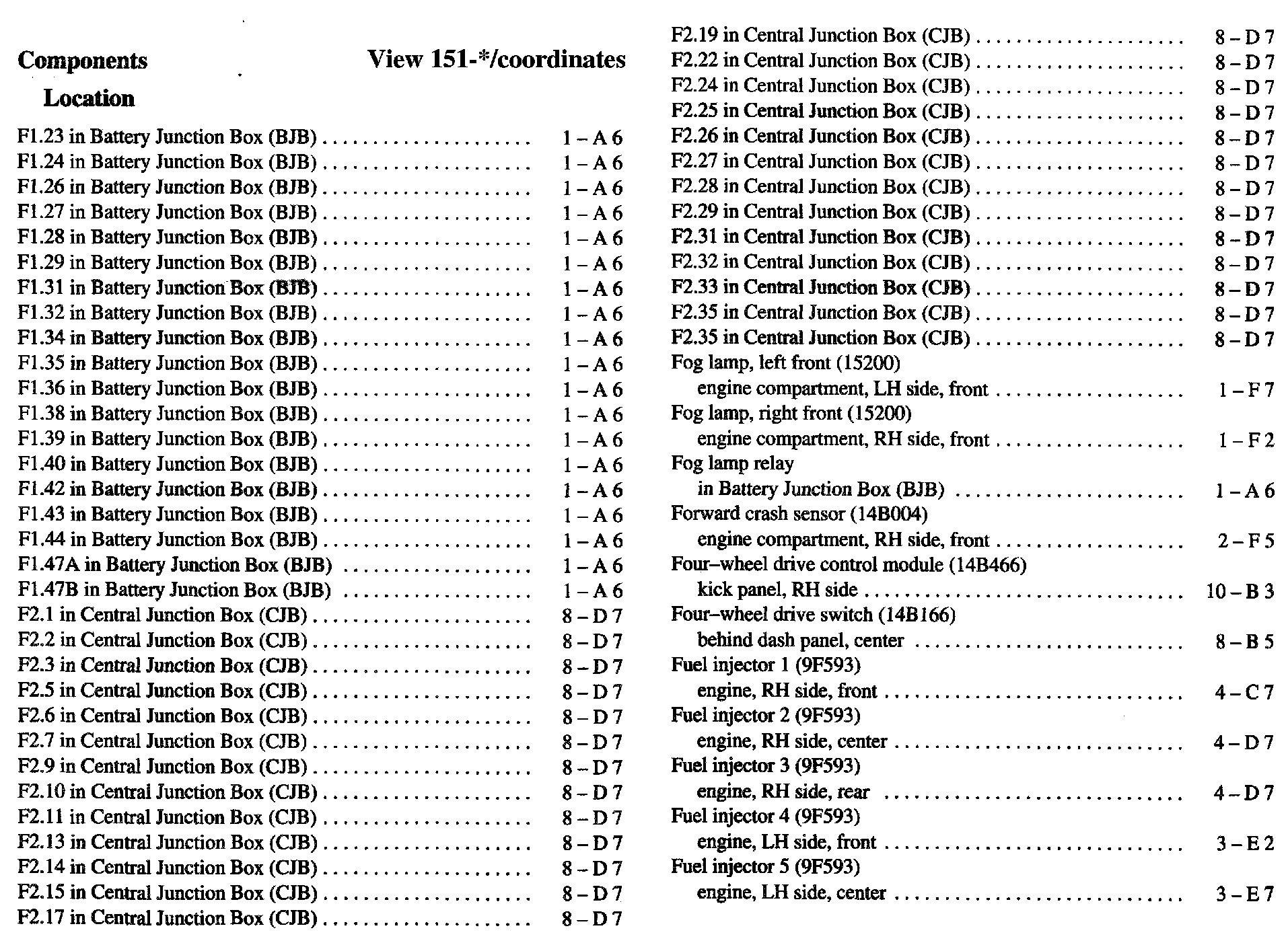

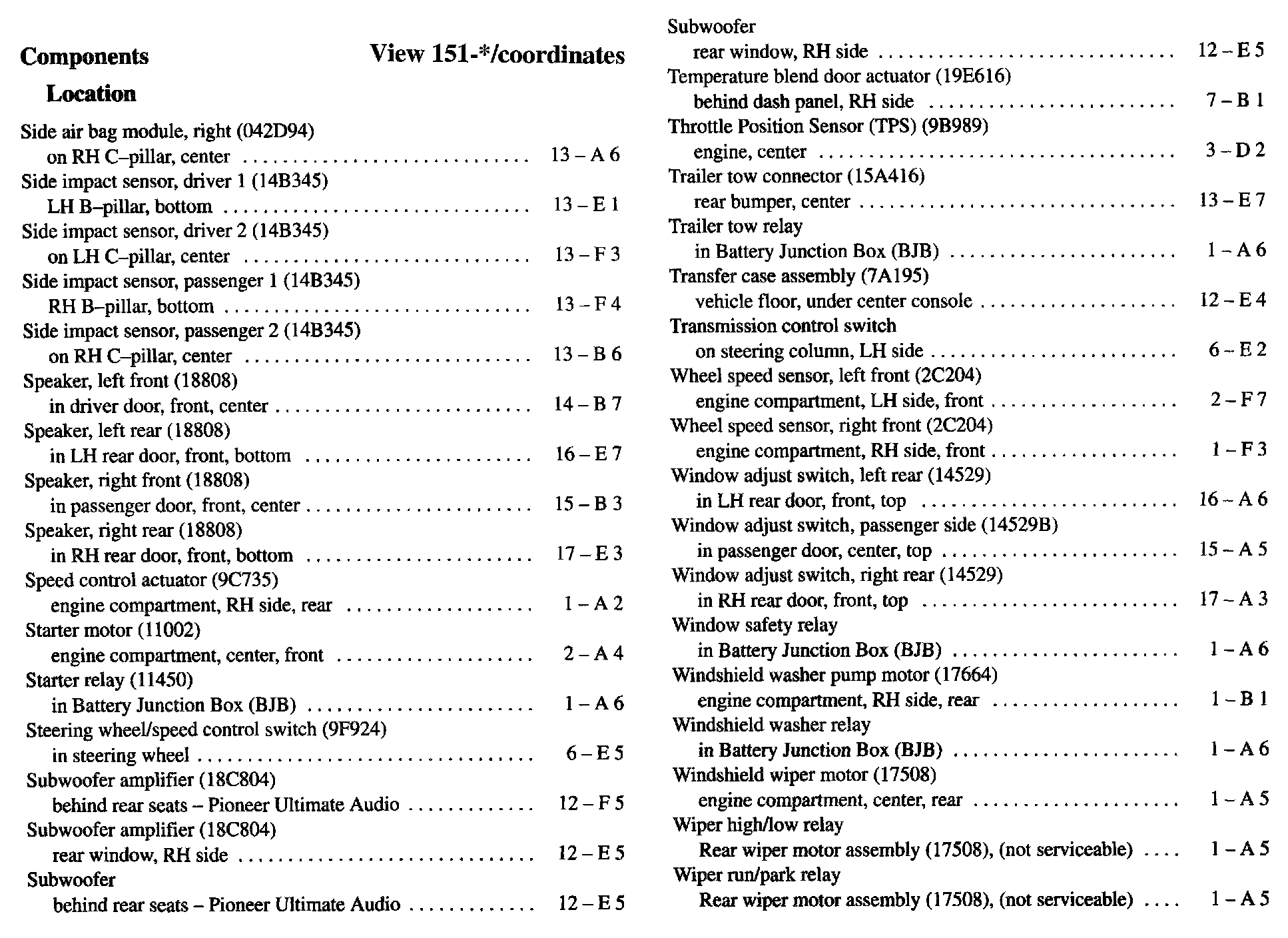

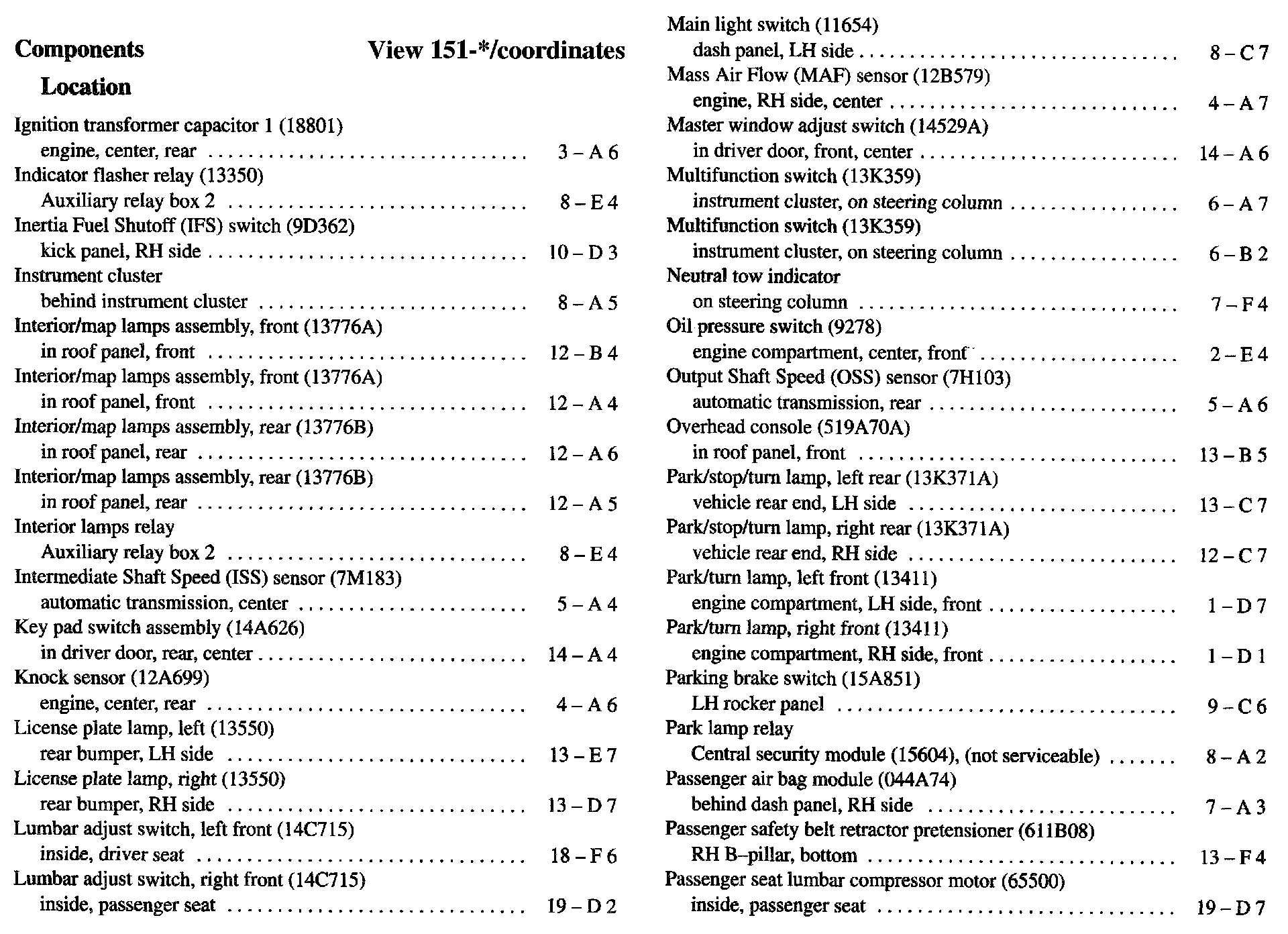

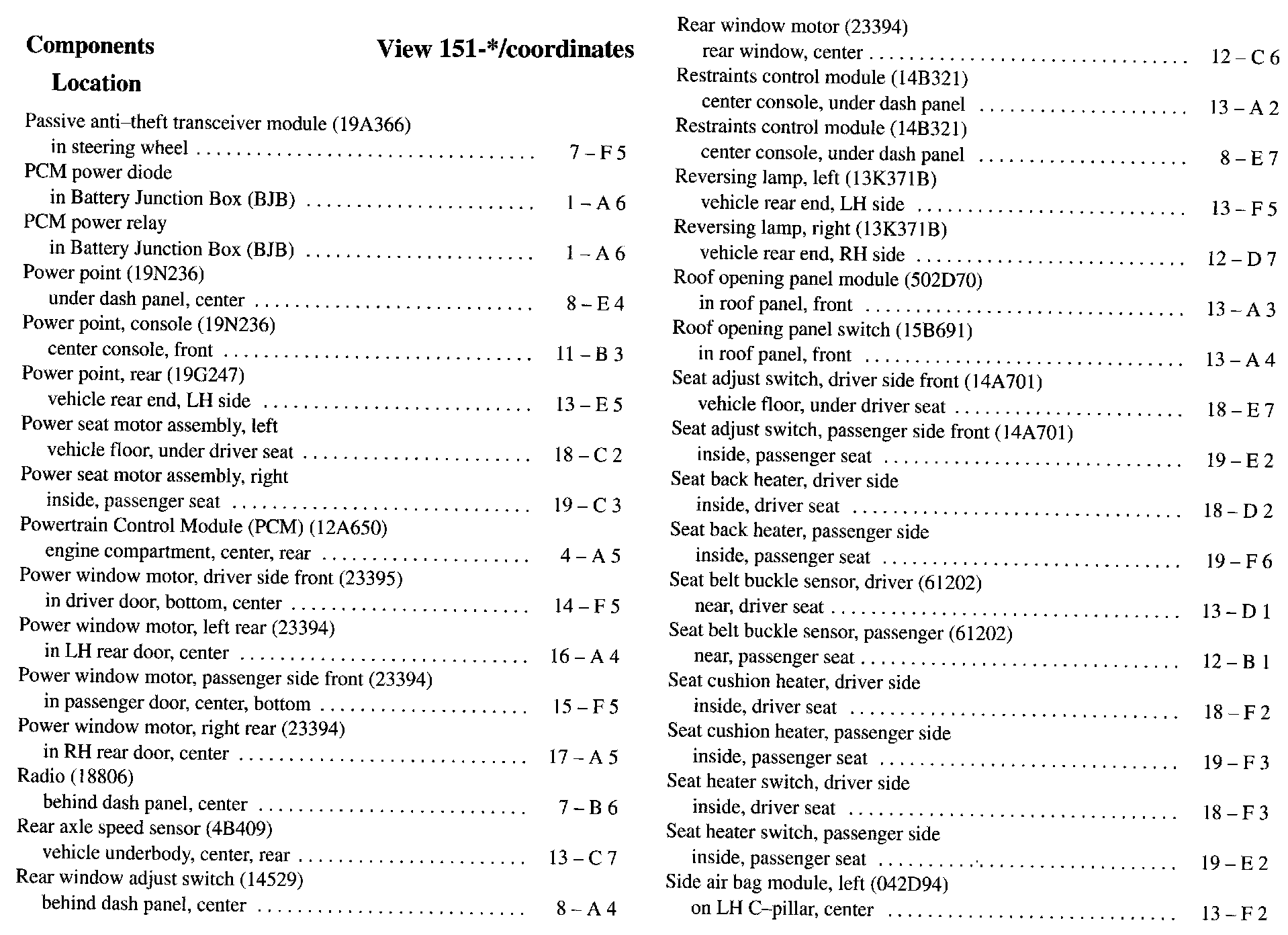

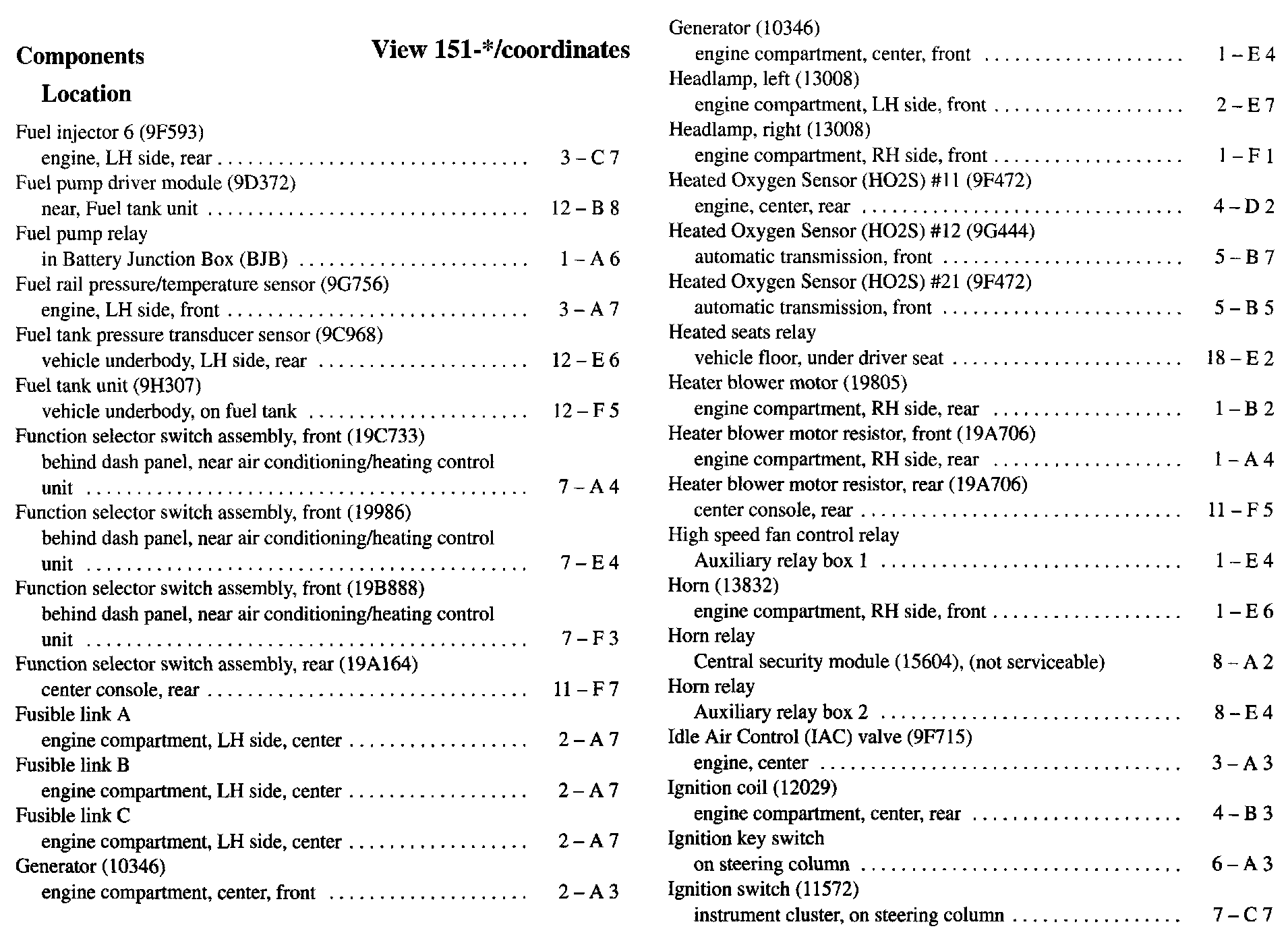

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.
5R-Da:
Da-F1.22:
F1.23-Fu:
Fu-Ig:
Ig-Pa:
Pa-Si:
Si-Wi:
