Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2004
>>
Explorer Sport Trac 2WD V6-4.0L VIN K Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
Differential Assembly
Rear Drive Axle and Differential

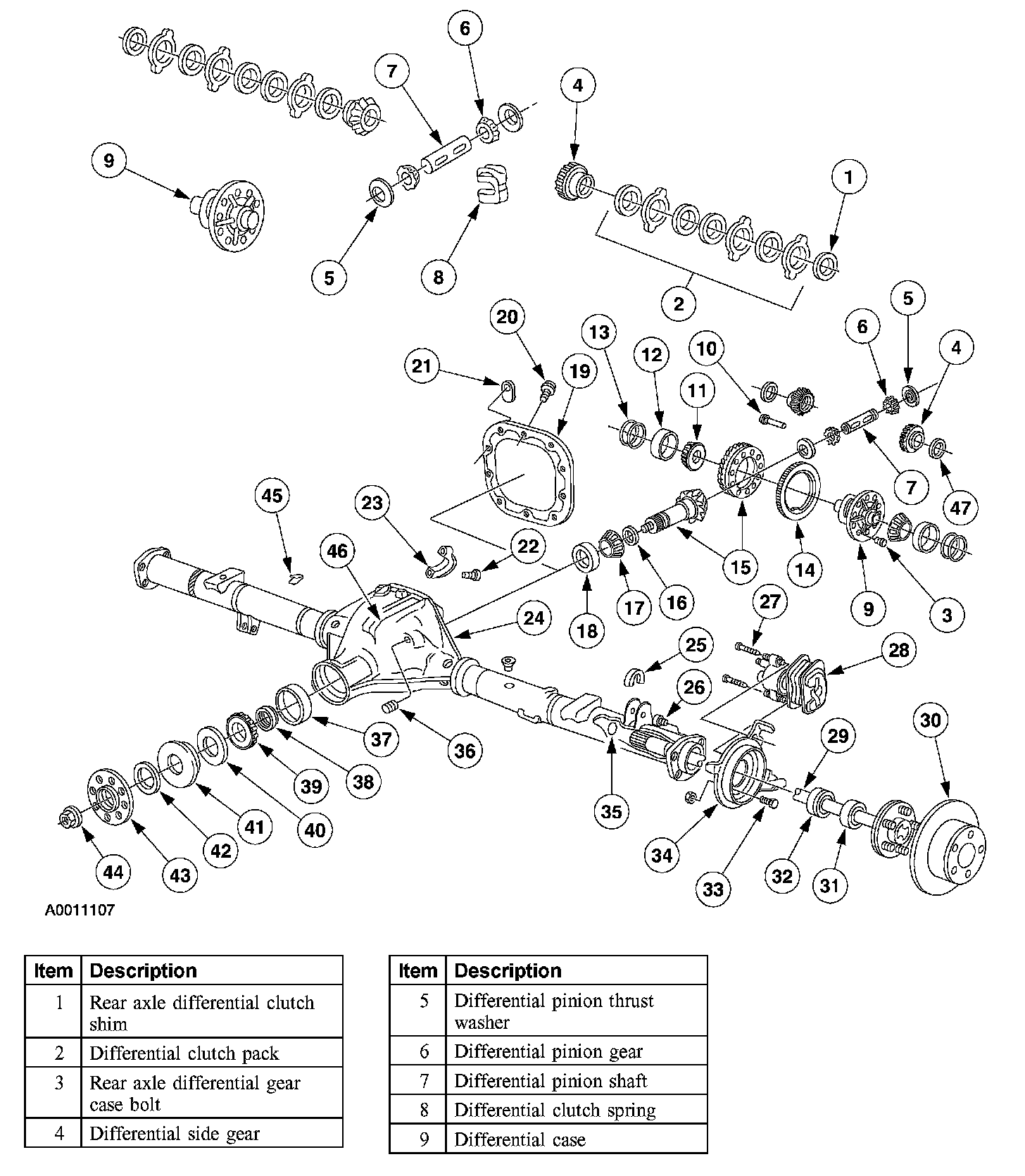

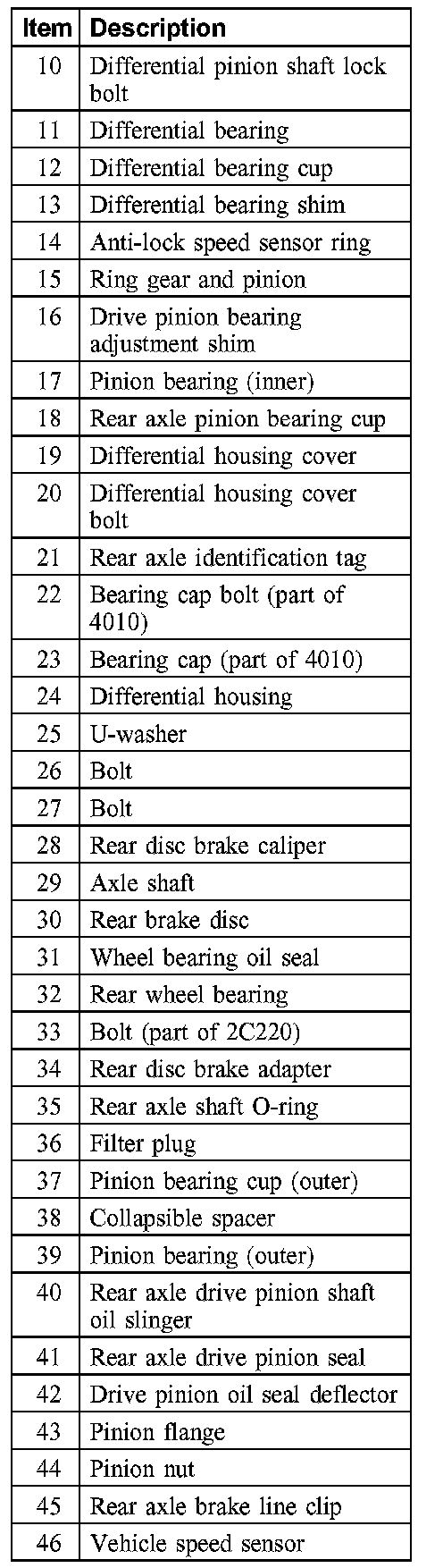

8.8-Inch Rear Axle
