Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2004
>>
Explorer Sport Trac 2WD V6-4.0L VIN K Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Front and Rear Components
Front and Rear Components

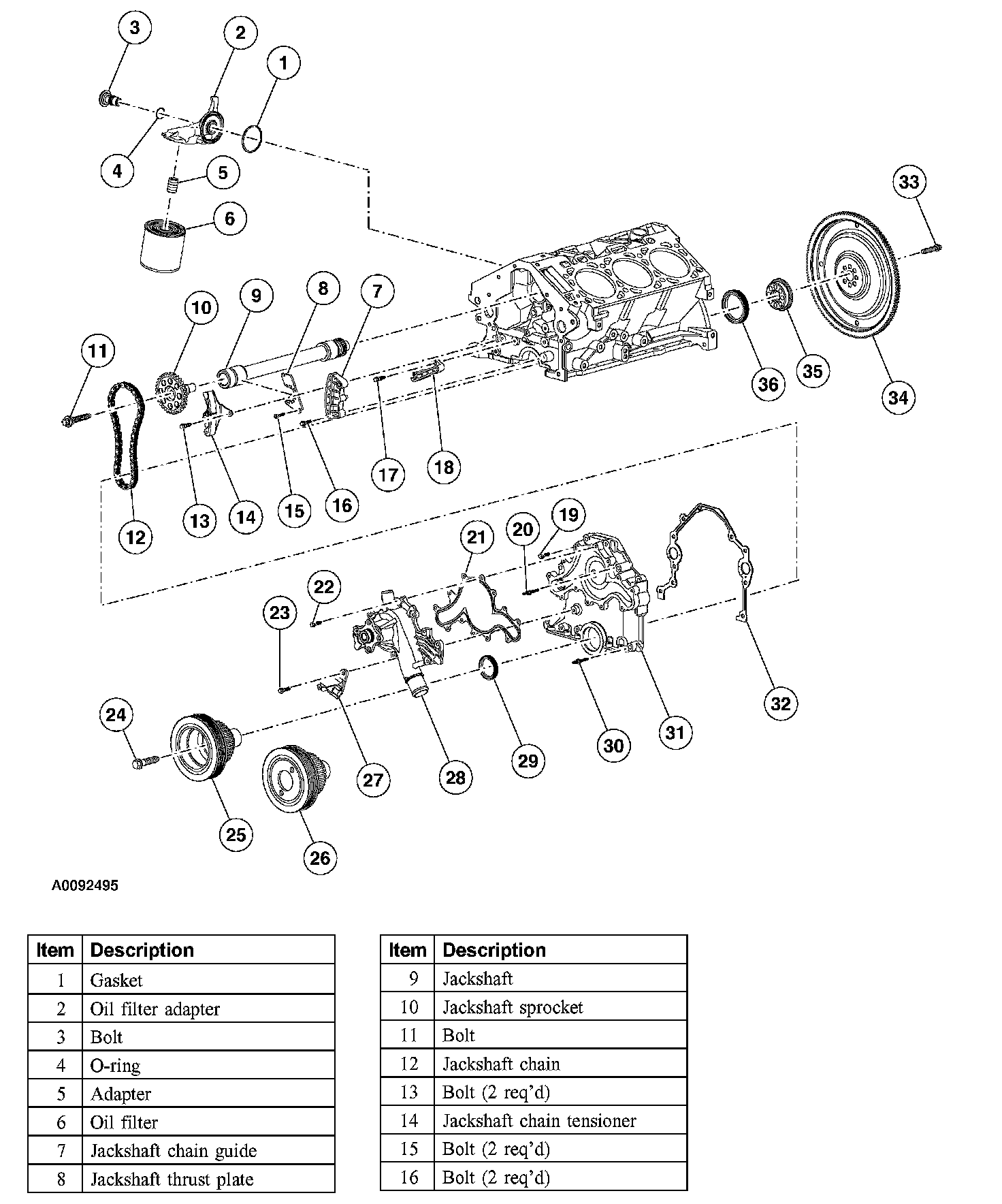

Front and Rear Components Part 1 of 2:

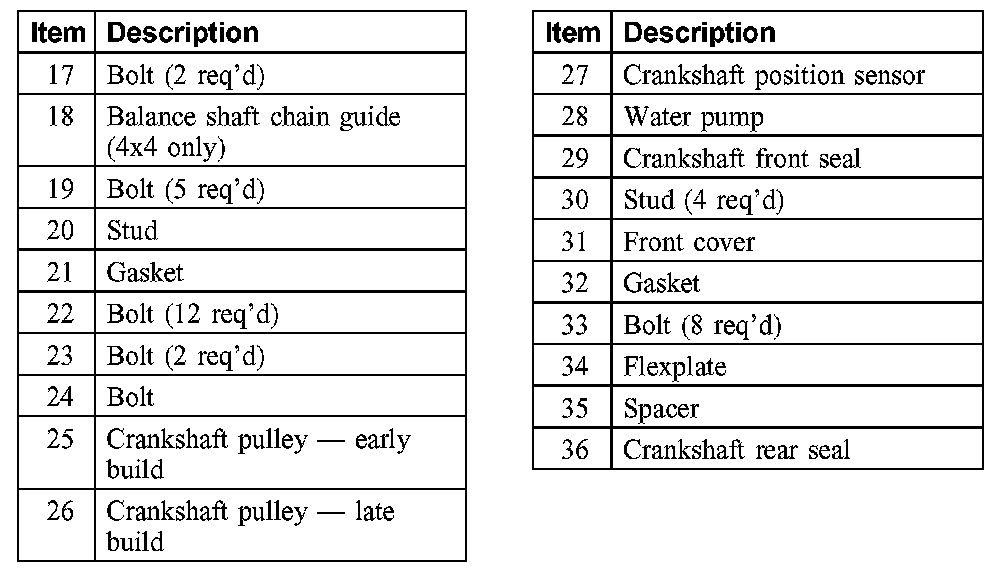

Front and Rear Components Part 2 of 2:
