Front Climate Control Assembly Illumination Bulbs

CLIMATE CONTROL ASSEMBLY ILLUMINATION BULBS - FRONT

REMOVAL
1. Remove the climate control assembly.

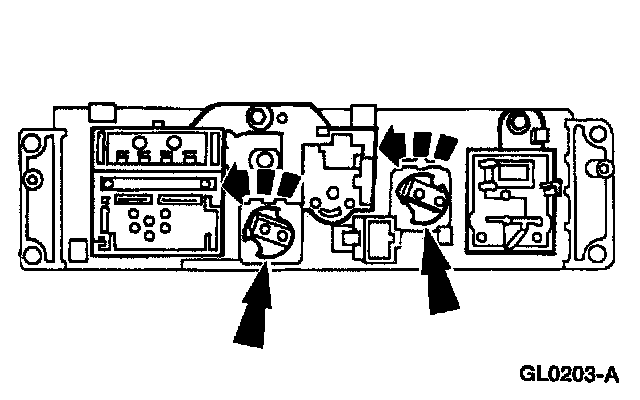

2. Turn and pull the lamp socket.
- Install a new bulb in the socket.

INSTALLATION
1. To install, reverse the removal procedure.
