Engine Control Module: Service and Repair

ENGINE CONTROL MODULE (PCM)

REMOVAL
1. Disconnect the battery ground cable.

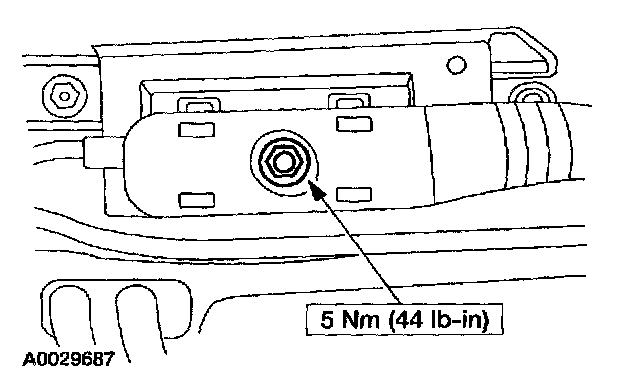

2. Disconnect the powertrain control module (PCM) electrical connector.

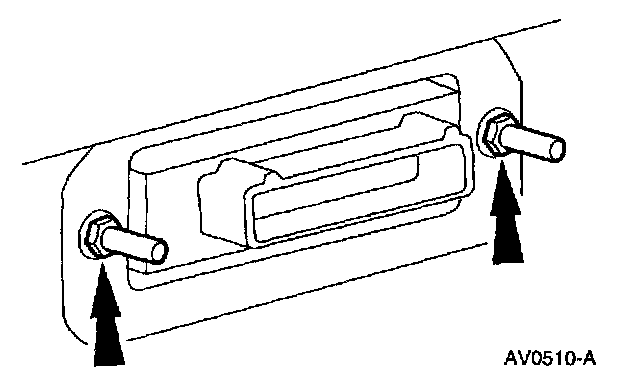

3. Remove the nuts and the PCM cover.

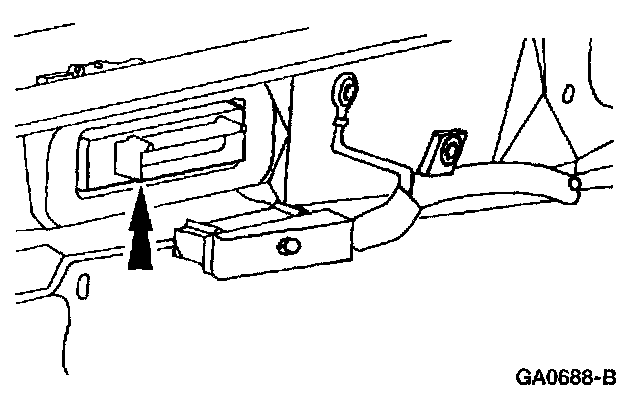

4. Remove the PCM.

INSTALLATION
1. To install, reverse the removal procedure.
