System Specifications
Cylinder Head and Valve TrainCylinder head gasket surface flatness mm (inch) 0.08 (0.003) Total
Combustion chamber volume (cc) 65.197 ± 2.068-2.018
Valve arrangement (front to rear) LH-I-E-I-E-I-E RH-E-I-E-I-E-I Valve guide bore diameter mm (inch) 7.00-7.018 (0.276)
Valve stem diameter intake mm (inch) 6.965-6.98 (0.274-0.275)
Valve stem diameter exhaust mm (inch) 6.95-6.965 (0.274)
Valve stem-to-guide clearance exhaust mm (inch) 0.035-0.068 (0.001-0.003)
Valve stem-to-guide clearance intake mm (inch) 0.020-0.053 (0.001-0.002)
Valve head diameter intake mm (inch) 45.9-46.1 (1.807-1.815)
Valve head diameter exhaust mm (inch) 38.9-39.1 (1.531-1.539)
Valve face runout 0.03 (0.001)
Valve face angle (degrees) 45°
Valve seat width (exhaust and intake) mm (inch) 1.556-2.404 (0.06-0.094) 1.273-2.121 (0.05-0.083)
Valve seat runout (TIR maximum) mm (inch) 0.059 (0.002)
Valve seat angle (degrees) 45°
Valve spring free length intake mm (inch) 43.1 (1.7)
Valve spring free length exhaust mm (inch) 43.1 (1.7)
Valve spring compression pressure intake (at specified height) (lbs.) 275-305 Nm at 35.9-36.7 mm (202.84-224.968 ft. lbs. at 1.413- 1.445 inch) Valve spring compression pressure exhaust (at specified height) (lbs.) 275-305 Nm at 35.9-36.7 mm (202.84-224.968 ft. lbs. at 1.413-1.445 inch) Valve spring installed height intake mm (inch) 39.86-40.86 (1.569-1.601)
Valve spring installed height exhaust mm (inch) 39.86-40.68 (1.569-1.601)
Exhaust manifold nuts 22 Nm (16 ft. lbs.)
Exhaust manifold to exhaust pipe bolts 40 Nm (30 ft. lbs.)
Intake manifold bolts 10 Nm (89 inch lbs.)
Camshaft sprocket bolt 85 Nm (63 ft. lbs.)
Camshaft sprocket bolt (w/sst) 61 Nm (45 ft. lbs.)
Cassette and sprocket to jackshaft bolt a Part 1
Camshaft Bearing Cap
Tighten the camshaft bearing cap bolts in two stages in the sequence shown.
Tighten to 6 Nm (53 inch lbs.).
Tighten to 16 Nm (12 ft. lbs.).

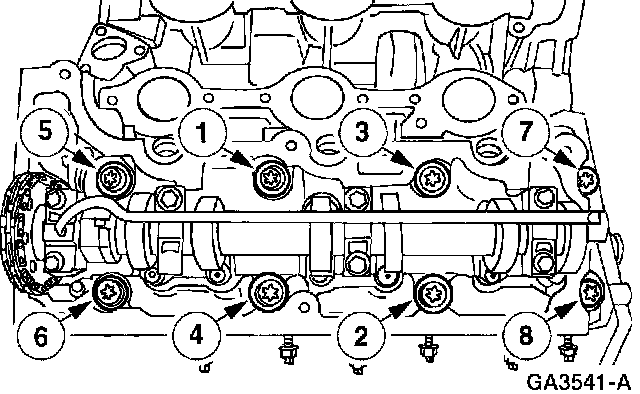

Cylinder head bolts
Tighten the 12 mm (0.47 inch) bolts in two stages in the sequence shown.
Tighten bolts 80 degrees.
Tighten bolts additional 80 degrees.
NOTE: LH shown, RH similar.
NOTE: Cylinder head bolts are a torque-to-yield design. New bolts must be installed.
