Torque Specifications
Torque SpecificationsCylinder Head
CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are tighten-to-yield designed and cannot be reused.

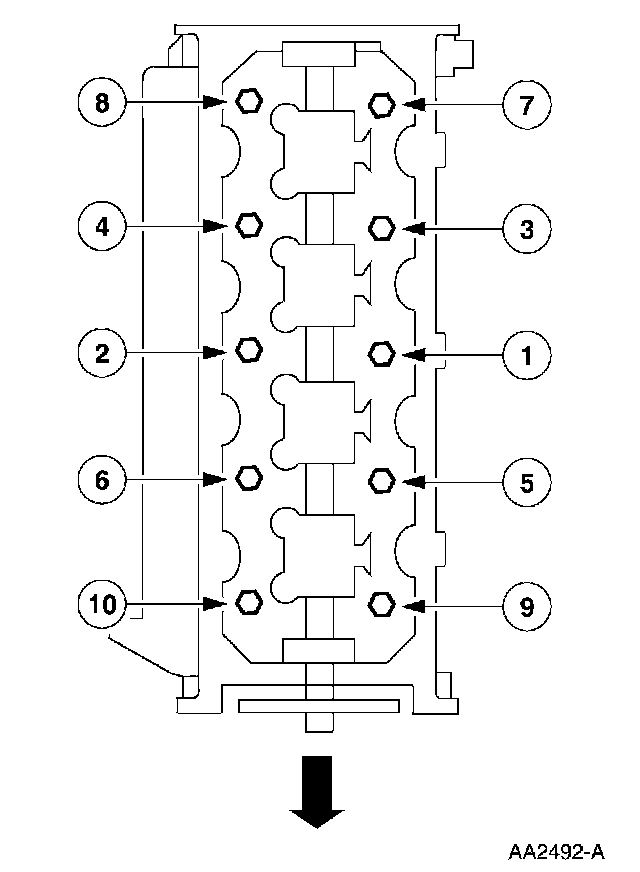

LH Cylinder Head Bolts
Stage 1 Tighten to 40 Nm (30 ft. lbs.).
Stage 2 Tighten an additional 90 degrees.
Stage 3 Tighten an additional 90 degrees.

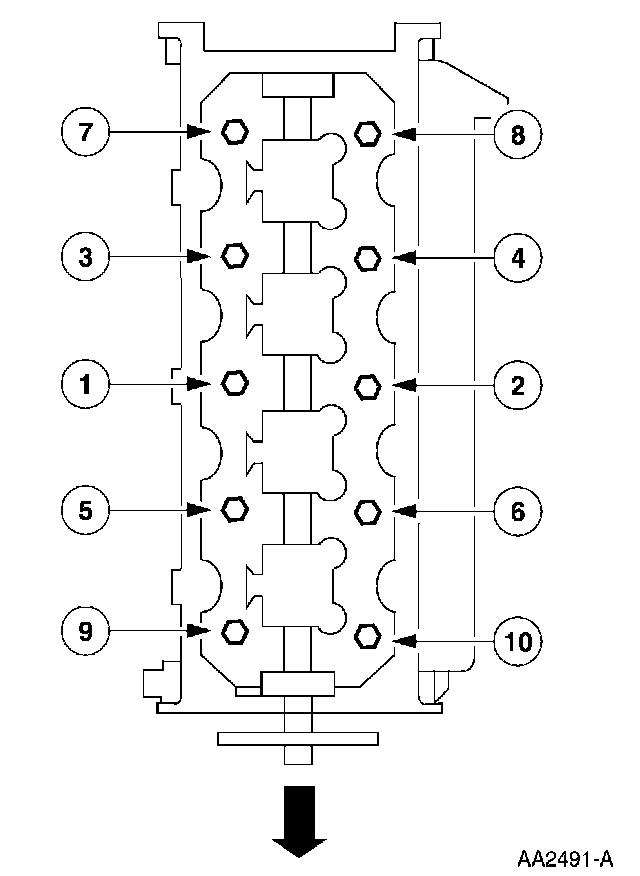

RH Cylinder Head Bolts
Stage 1 Tighten to 40 Nm (30 ft. lbs.).
Stage 2 Tighten an additional 90 degrees.
Stage 3 Tighten an additional 90 degrees.
Camshaft

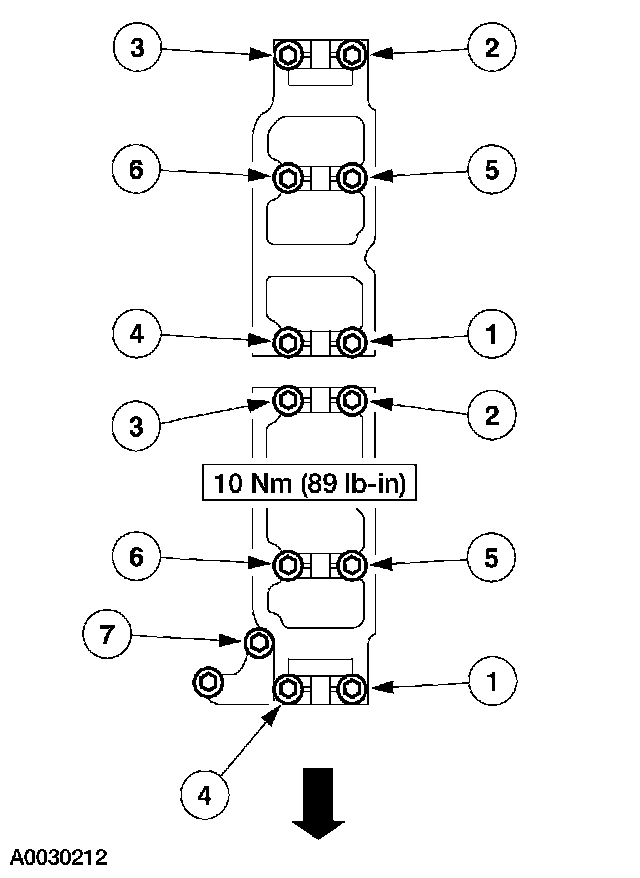

Camshaft Bearing Cap Bolt 10 Nm (89 in lbs)
Intake Manifold

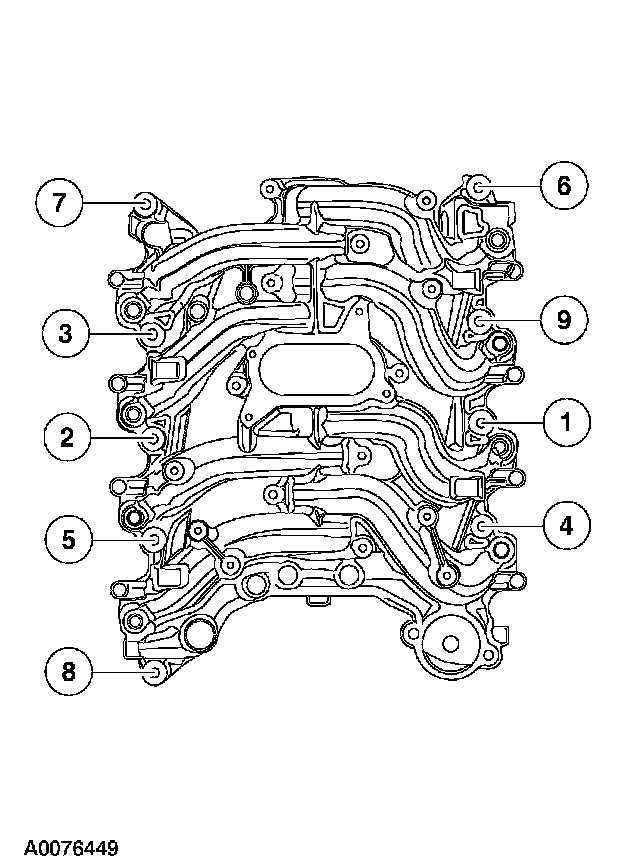

Intake Manifold Bolts 10 Nm (89 in lbs.)
Exhaust Manifold

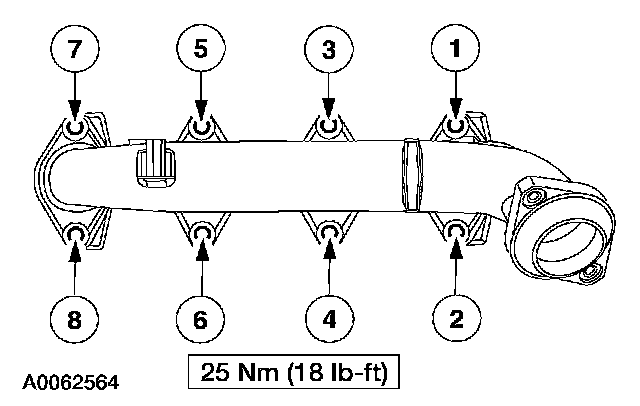

RH Exhaust Manifold Bolts 25 Nm (18 ft lbs.)

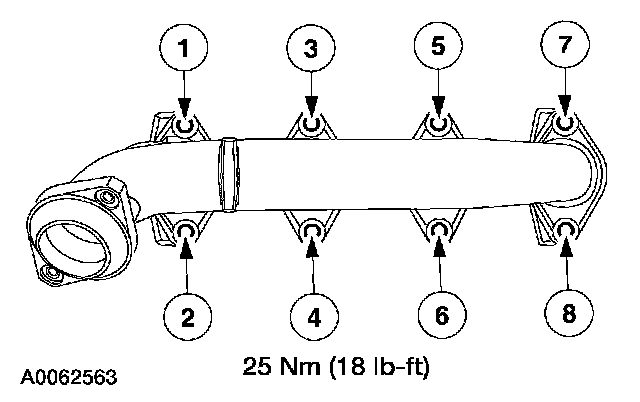

RH Exhaust Manifold Bolts 25 Nm (18 ft lbs.)

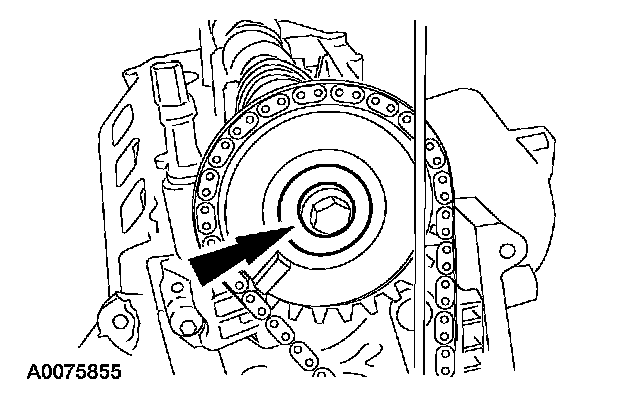

Camshaft Sprocket Bolt
Stage 1 40 Nm (30 ft. lbs.)
Stage 2 Tighten an additional 90 degrees.
