Oil Temperature Sensor For ECM: Service and Repair
OIL TEMPERATURE SENSORREMOVAL
1. Disconnect the battery ground cable.
2. With the vehicle in neutral, position it on a hoist.
3. Drain the engine oil.

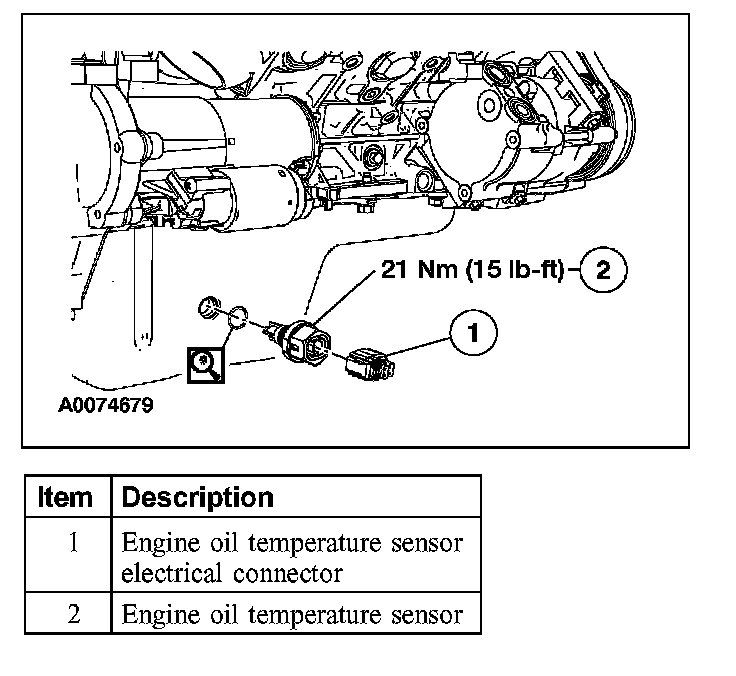

4. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
