Reactivation
Supplemental Restraint System (SRS) Deactivation and ReactivationReactivation
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the deactivation procedure.
NOTE: Make sure the battery negative cable is still disconnected before proceeding with the reactivation portion of this procedure.
All vehicles
1. Remove the restraint system diagnostic tool from the seat harness side of the front driver safety belt buckle pretensioner electrical connector.
2. Connect the front driver safety belt buckle pretensioner electrical connector.
3. Remove the restraint system diagnostic tool from the seat harness side of the front passenger safety belt buckle pretensioner electrical connector.
4. Connect the front passenger safety belt buckle pretensioner electrical connector.
Vehicles with a 20 percent seat
5. Align the 20 percent seat cushion to the frame and push down seating the retainers.
All vehicles
6. Remove the restraint system diagnostic tool from the vehicle harness side of the RH passenger air bag module electrical connector.

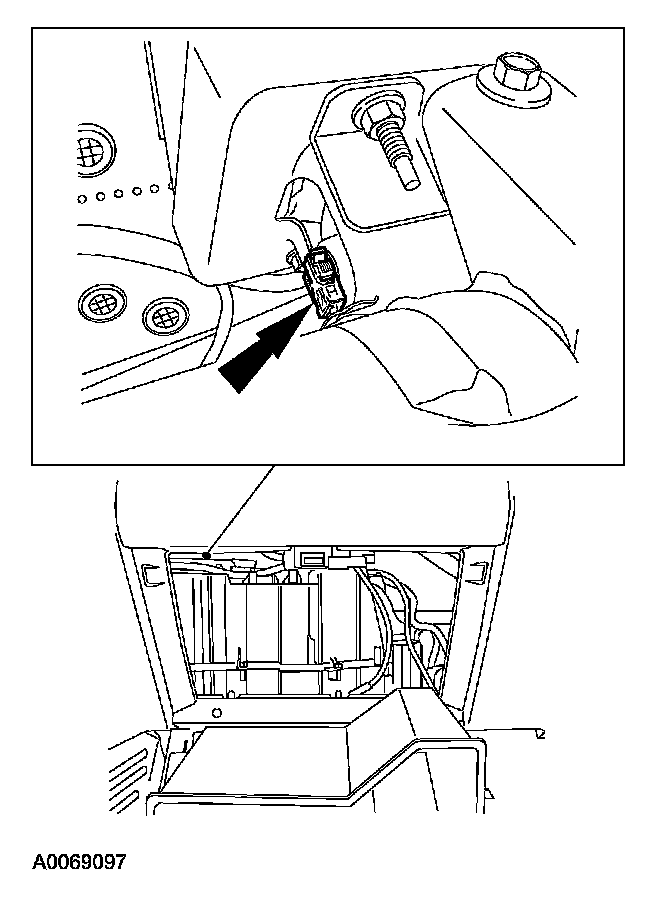

7. Through the glove compartment opening, connect the RH passenger air bag module electrical connector.
8. Remove the restraint system diagnostic tool from the vehicle harness side of the LH passenger air bag module electrical connector.
9. Through the glove compartment opening, connect the LH passenger air bag module electrical connector.
10. Close the glove compartment.
11. Remove the restraint system diagnostic tools from the clockspring electrical connectors at the top of the steering column.
12. CAUTION: The clockspring electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the driver air bag module. Do not force the electrical connectors into the driver air bag module.
Install the driver air bag module.
1 Connect the two electrical connectors (one shown).
2 Connect the driver air bag module electrical connectors as noted during removal.
3 Position the driver air bag module to the steering wheel.
13. Install the two driver air bag module bolts (one shown).
14. Install the two steering wheel back cover plugs (one shown).
15. Connect the battery.
16. WARNING: Restraint system diagnostic tools are for service only. Tools must be removed prior to operating the vehicle over the road. Failure to remove restraint system diagnostic tools could result in injury and possible violation of vehicle safety standards.
With all the restraint system diagnostic tools removed, prove out the Supplemental Restraint System (SRS).
17. Check the active restraint system for correct operation.
