Initial Inspection - External Controls

Inspection and Verification
1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage. Refer to the chart:

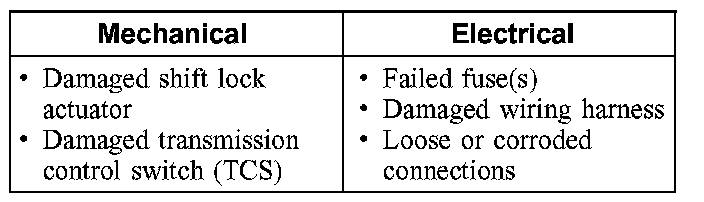

Visual Inspection Chart

3. If the fault is not visually evident, determine the symptom.
