Vacuum and Vapor Hose Diagrams

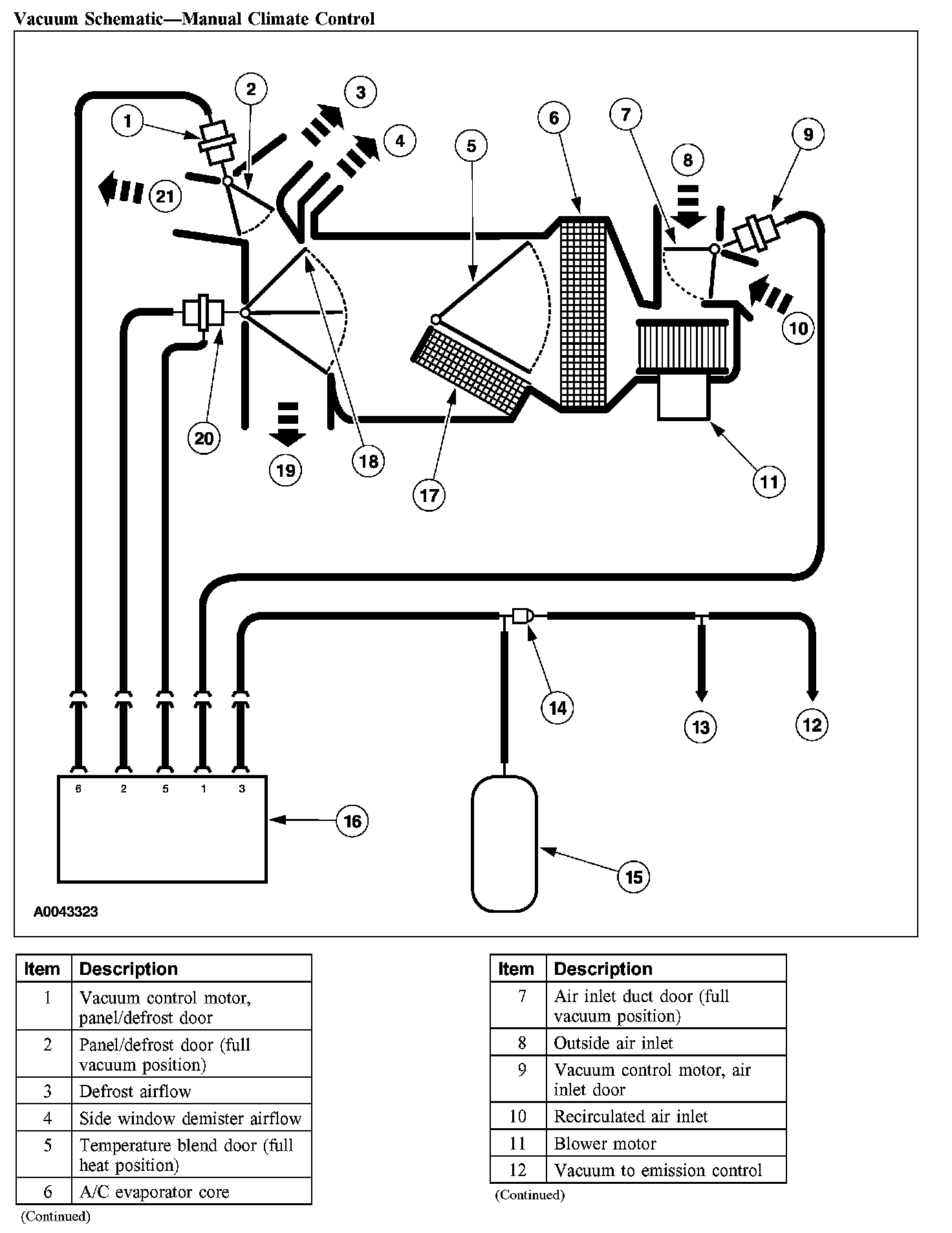

Vacuum Schematic - Manual Climate Control, Part 1:

Vacuum Schematic - Manual Climate Control, Part 2:

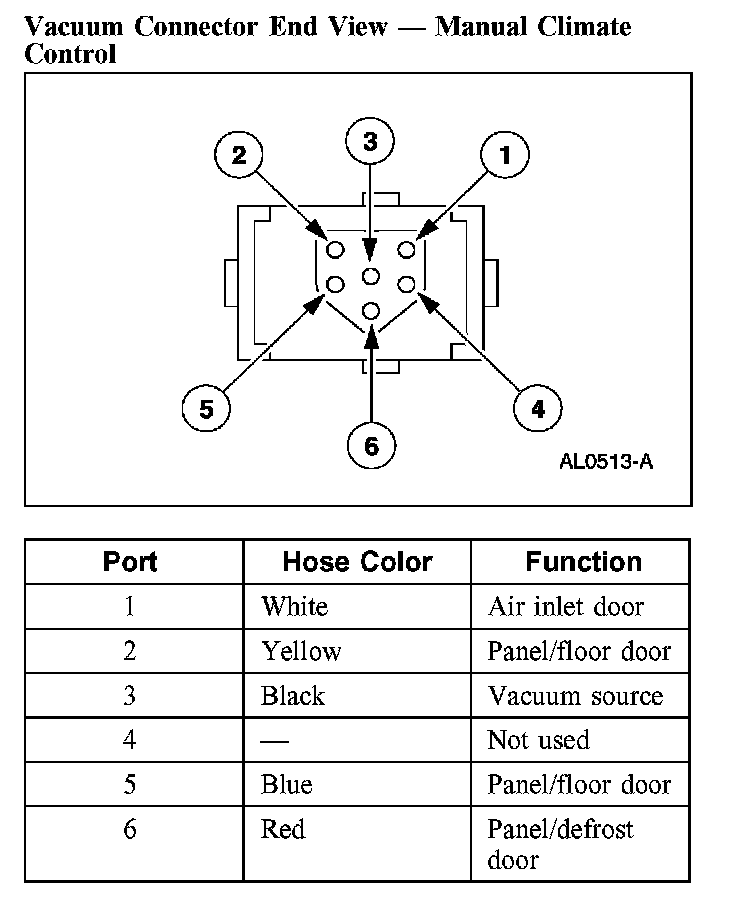

Vacuum Connector End View - Manual Climate Control:

Vacuum Application Chart - Manual Climate Control:
