PINPOINT TEST F: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - VEHICLES WITH SIR, PASSENGER SIDE
Test F1:
Test F2-F3:
Test F4-F6:
Test F6-F7:
Test F8-F9:

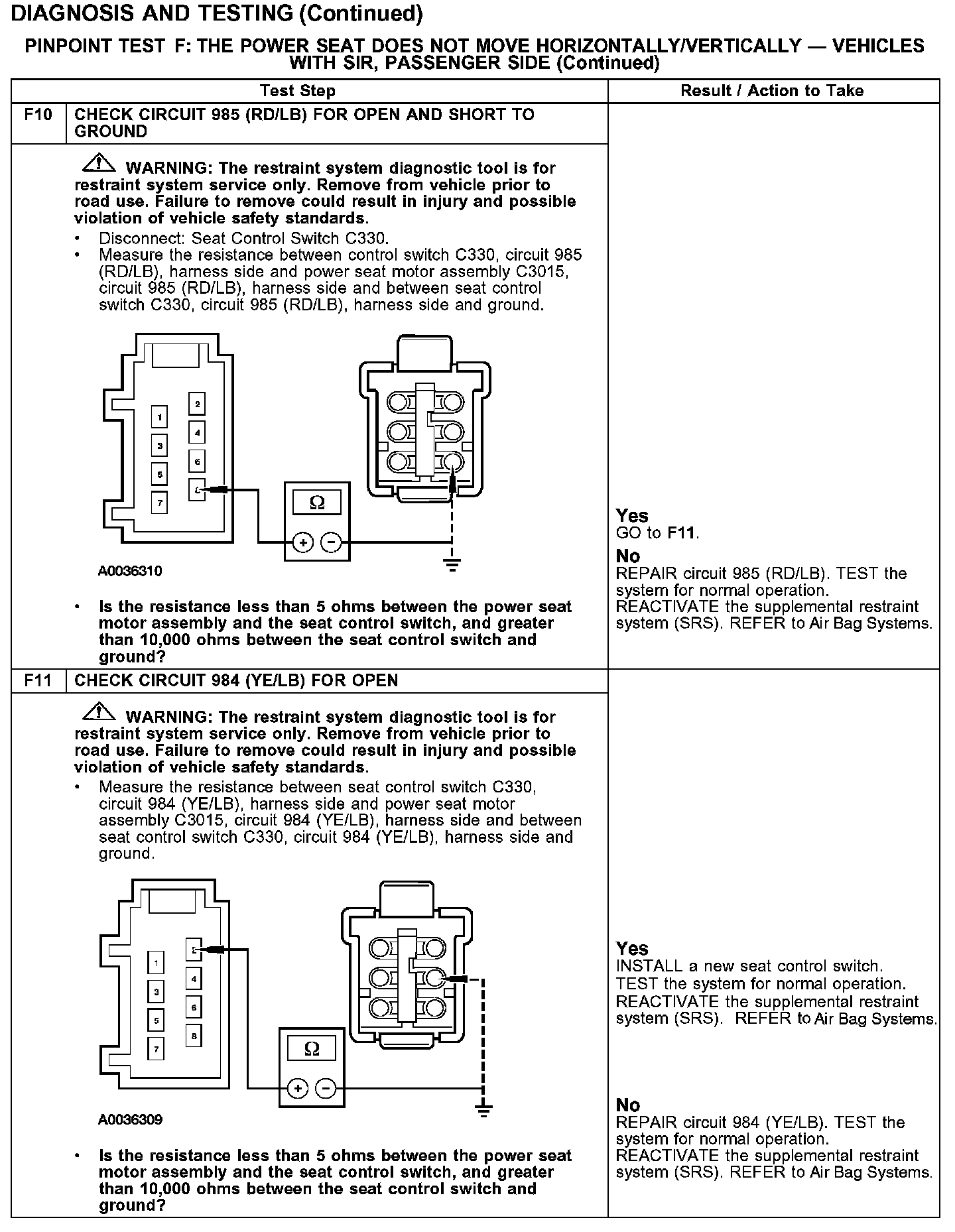

Test F10-F11:
