Crew Cab, Quad Bucket

REAR SEAT CUSHION - CREW CAB, QUAD BUCKET

DISASSEMBLY
1. Remove the rear seat quad bucket backrest.

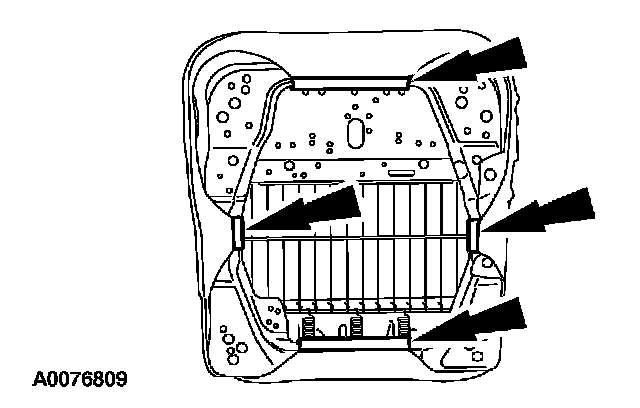

2. Release the J-clips.







3. Remove the two pin-type retainers.







4. Remove the seat cushion pan from the cushion trim cover and foam pad assembly.







5. Invert the seat cushion trim cover and remove all the hog rings and remove the trim cover from the cushion foam pad.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
