PINPOINT TEST F: DTC C1230 REAR ANTI-LOCK SPEED SENSOR INPUT CIRCUIT FAILURE
Tests F1 - F2:
Tests F2 (continued) - F3:

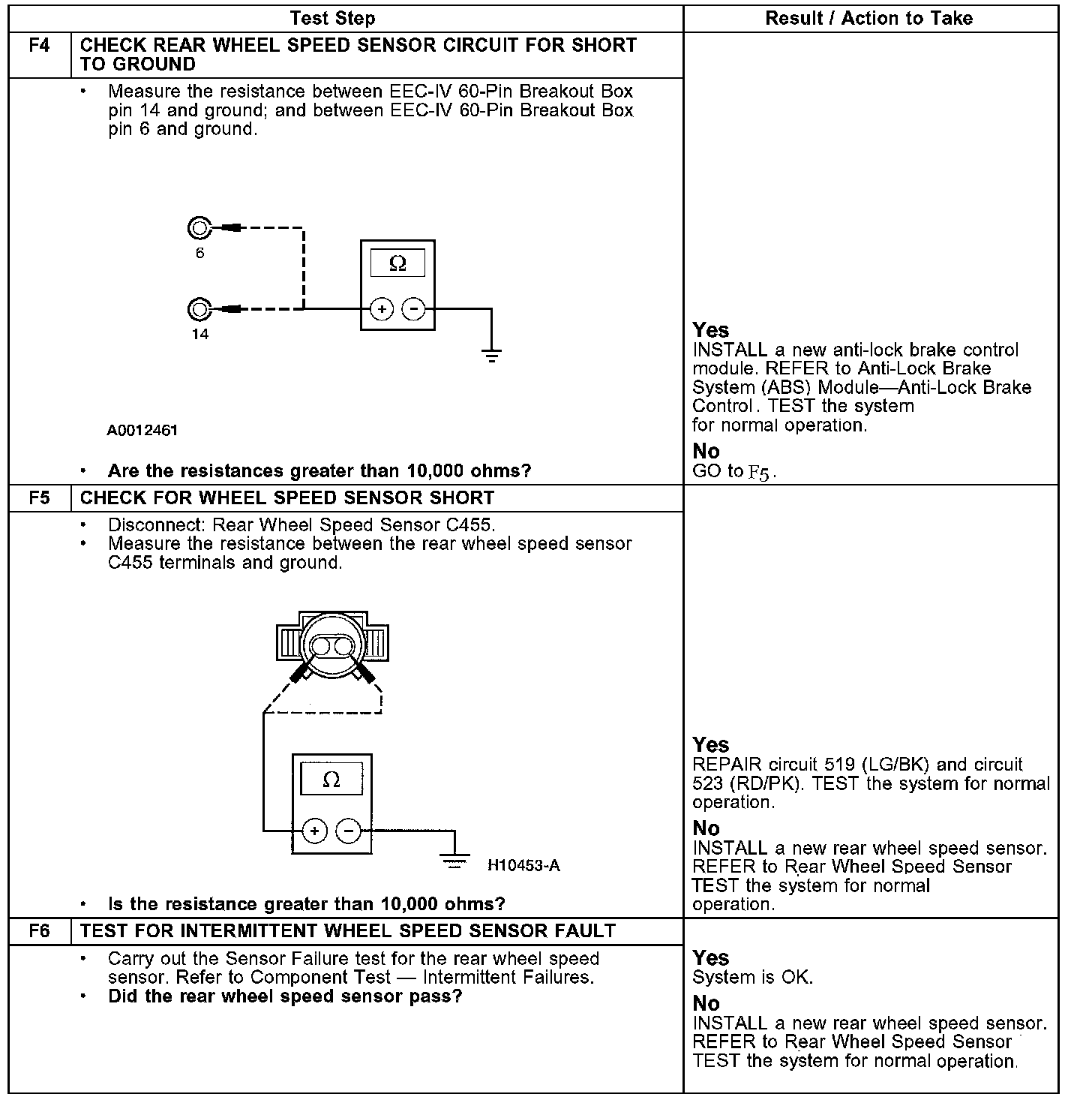

Tests F4 - F6:
