Test L

PINPOINT TEST L: TEMPERATURE CONTROL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY - MANUAL CLIMATE CONTROL

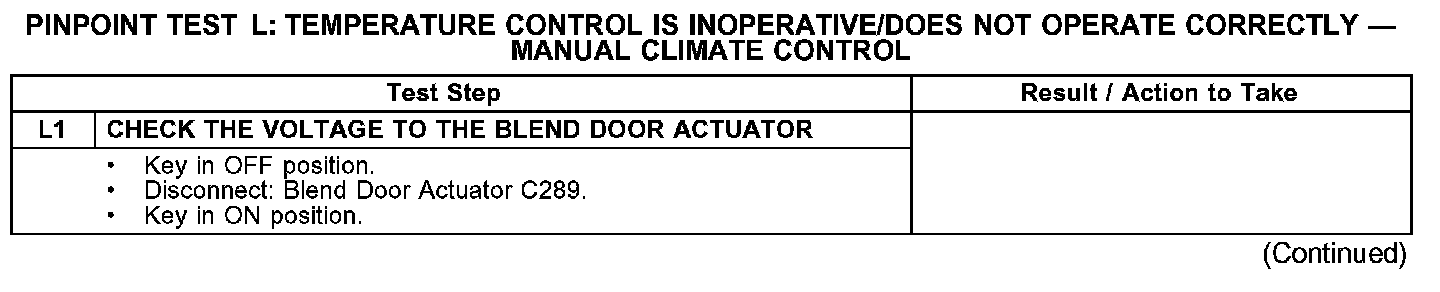

Test L1:






Test L1-L2:

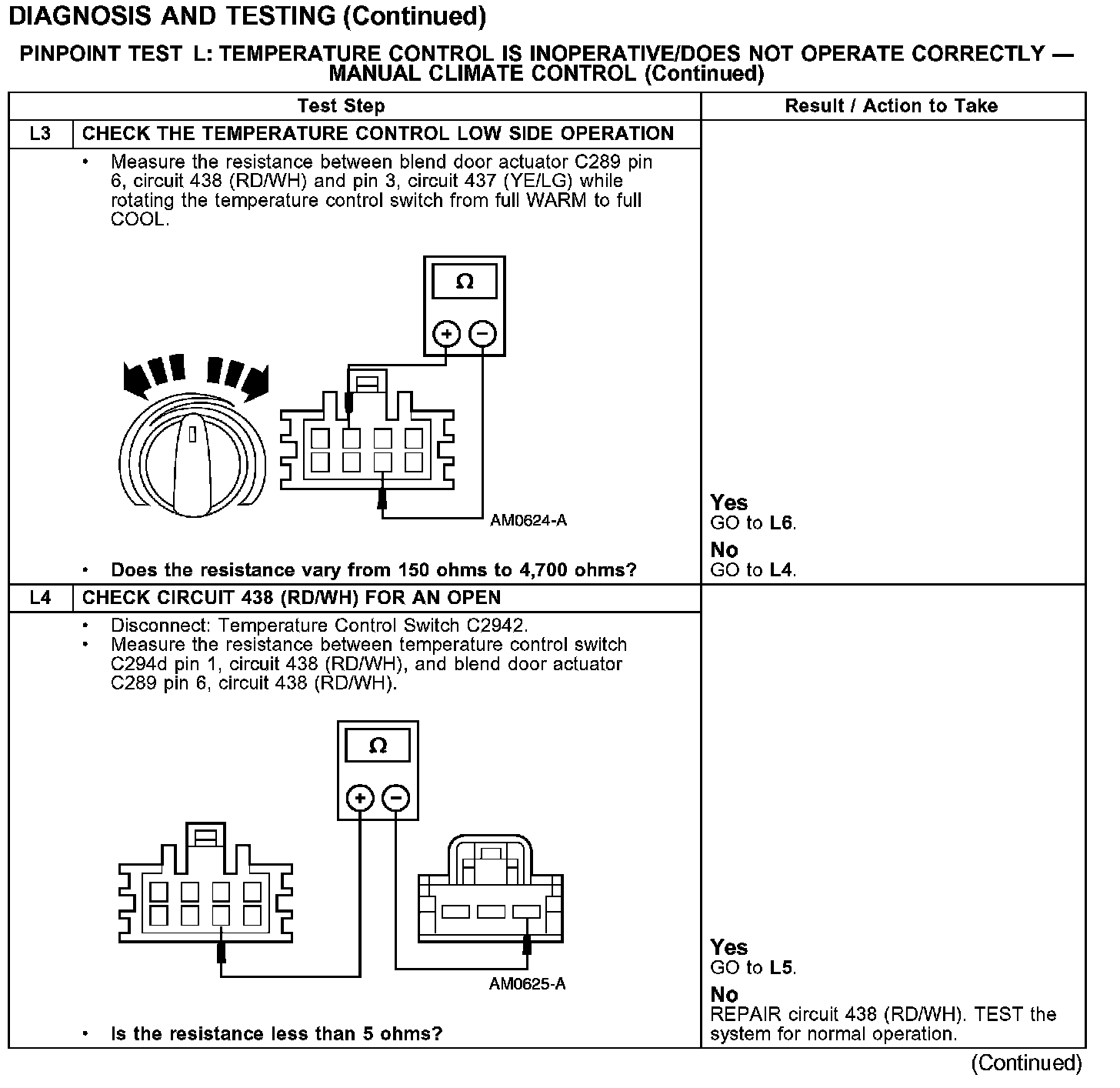

Test L3-L4:






Test L5-L7:






Test L7-L9:






Test L10-L11:
