Test D

PINPOINT TEST D: ONE LOW BEAM HEADLAMP IS INOPERATIVE


Test D1:

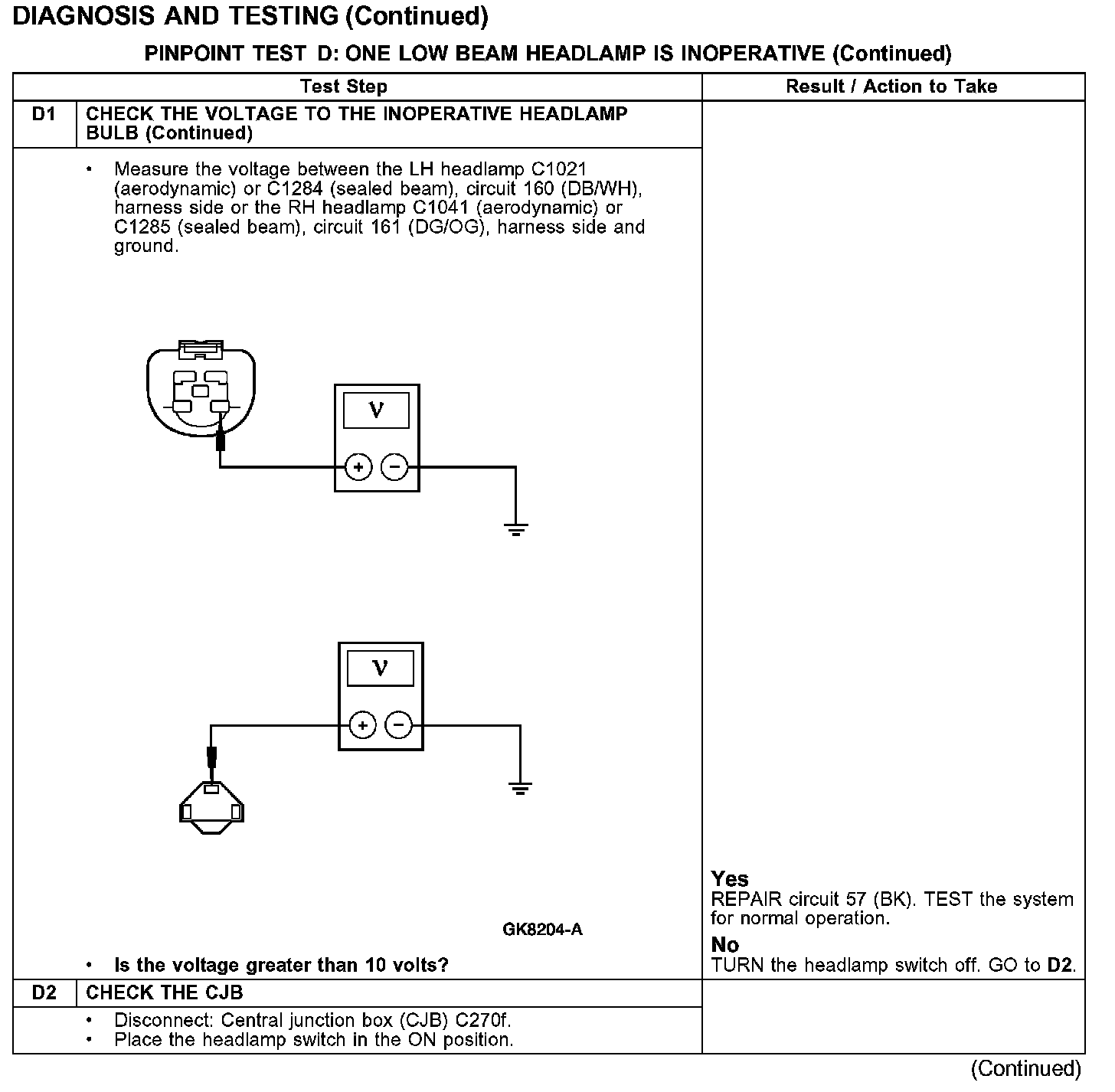

Test D1-D2:






Test D2 Continued:
