Steel Fuel Tank Pump

PUMP - STEEL FUEL TANK

REMOVAL

1. NOTE:
- The fuel tank must be drained completely. Upon removal of the pump/sender, the tank must be inspected for contamination.
- For diesel engine applications, follow this procedure, Steps 1-3 to remove the diesel fuel level sensor.

Remove the fuel tank.







2. CAUTION: The fuel pump module must be handled carefully to avoid damage.

Remove the top of the fuel pump.
1 Clean the surface.

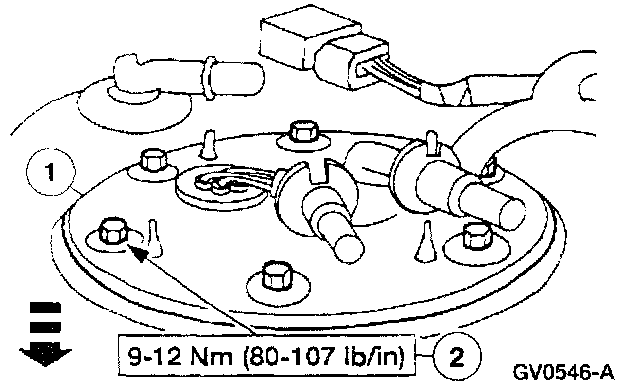

2 Remove the bolts.







3. Remove the fuel pump assembly.

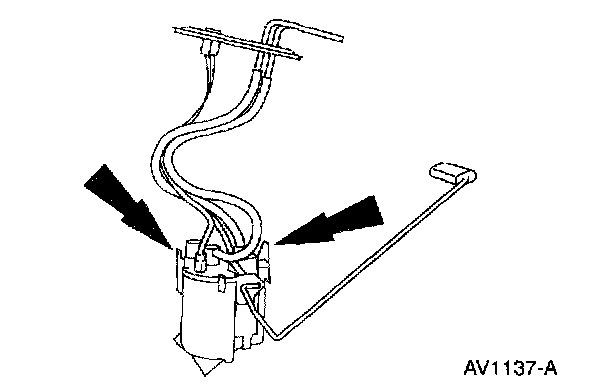

- Squeeze the locking tabs while pushing down.

4. Remove and discard the fuel pump mounting gasket.

INSTALLATION
1. To install, reverse the removal procedure.
