Bearing Inspection

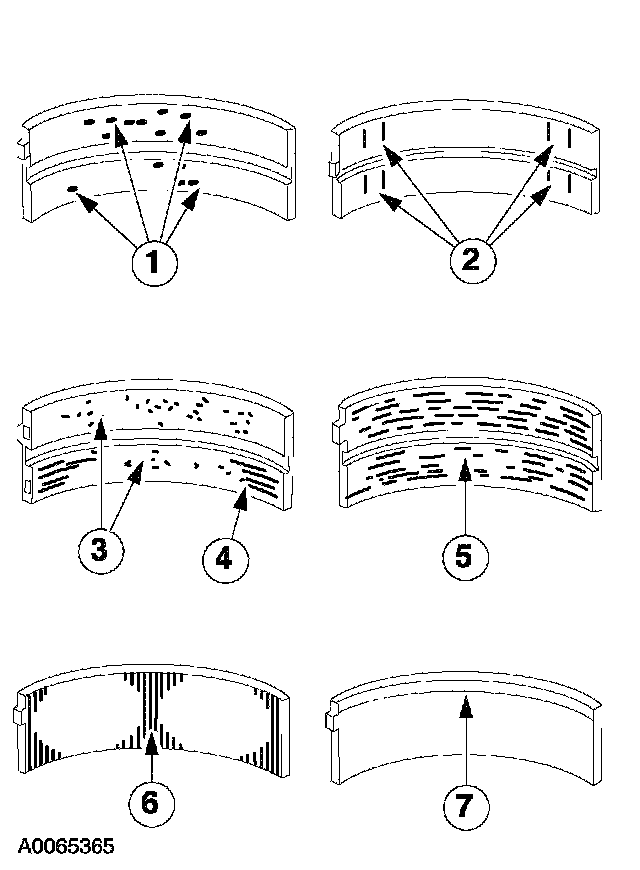

Bearing Inspection 1.
Inspect bearings for the following defects.
1.
Cratering - fatigue failure
2.
Spot polishing - incorrect seating.
3.
Imbedded dirt engine oil.
4.
Scratching - dirty engine oil.
5.
Base exposed - poor lubrication.
6.
Both edges worn journal damaged.
7.
One edge worn - journal tapered or bearing not seated.
