Test D
Test D
PINPOINT TEST D: ONE LOW BEAM
HEADLAMP
IS INOPERATIVE (HIGH BEAMS OK)

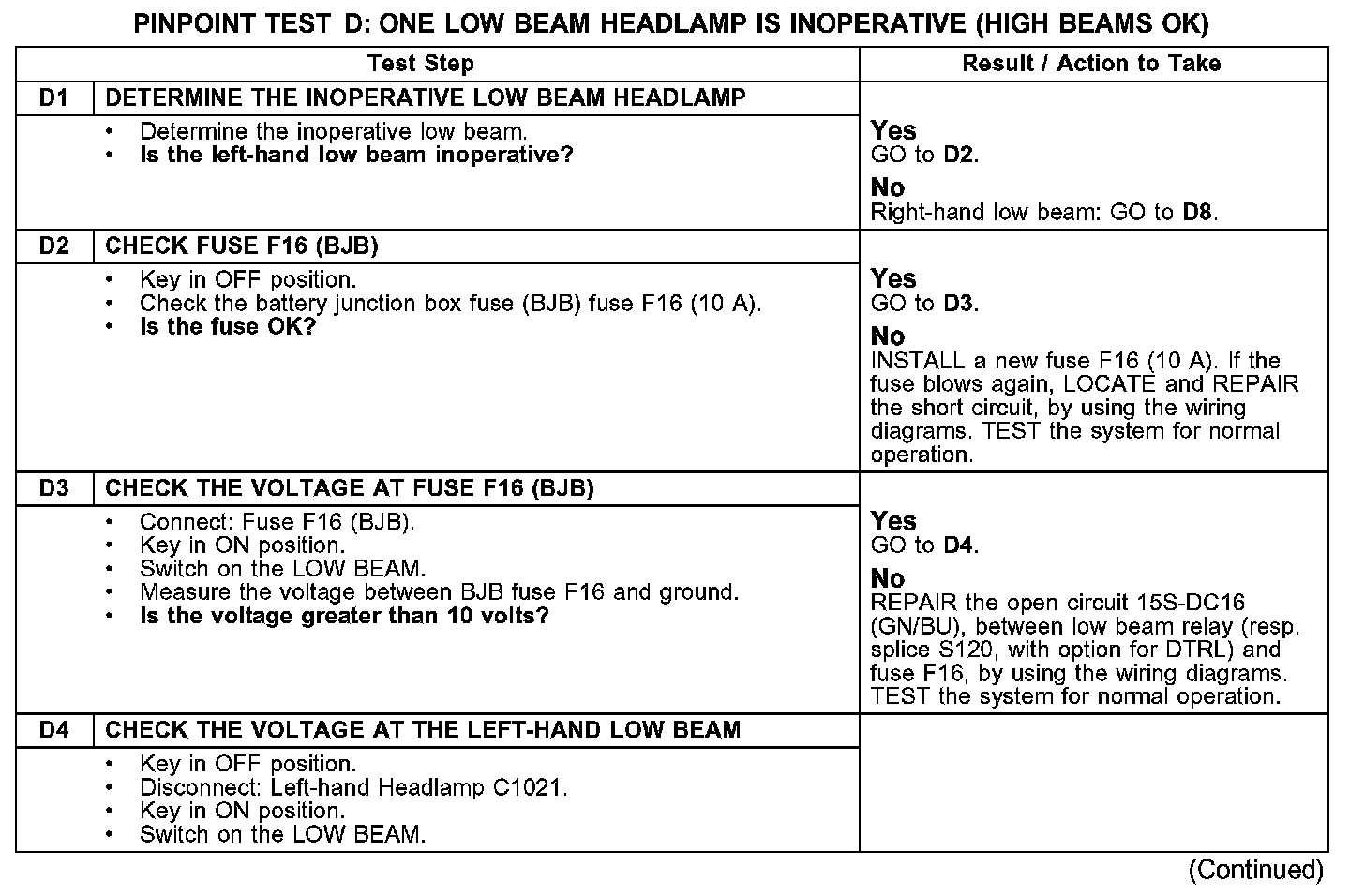

Test D1-D4:
Test D4-D5:

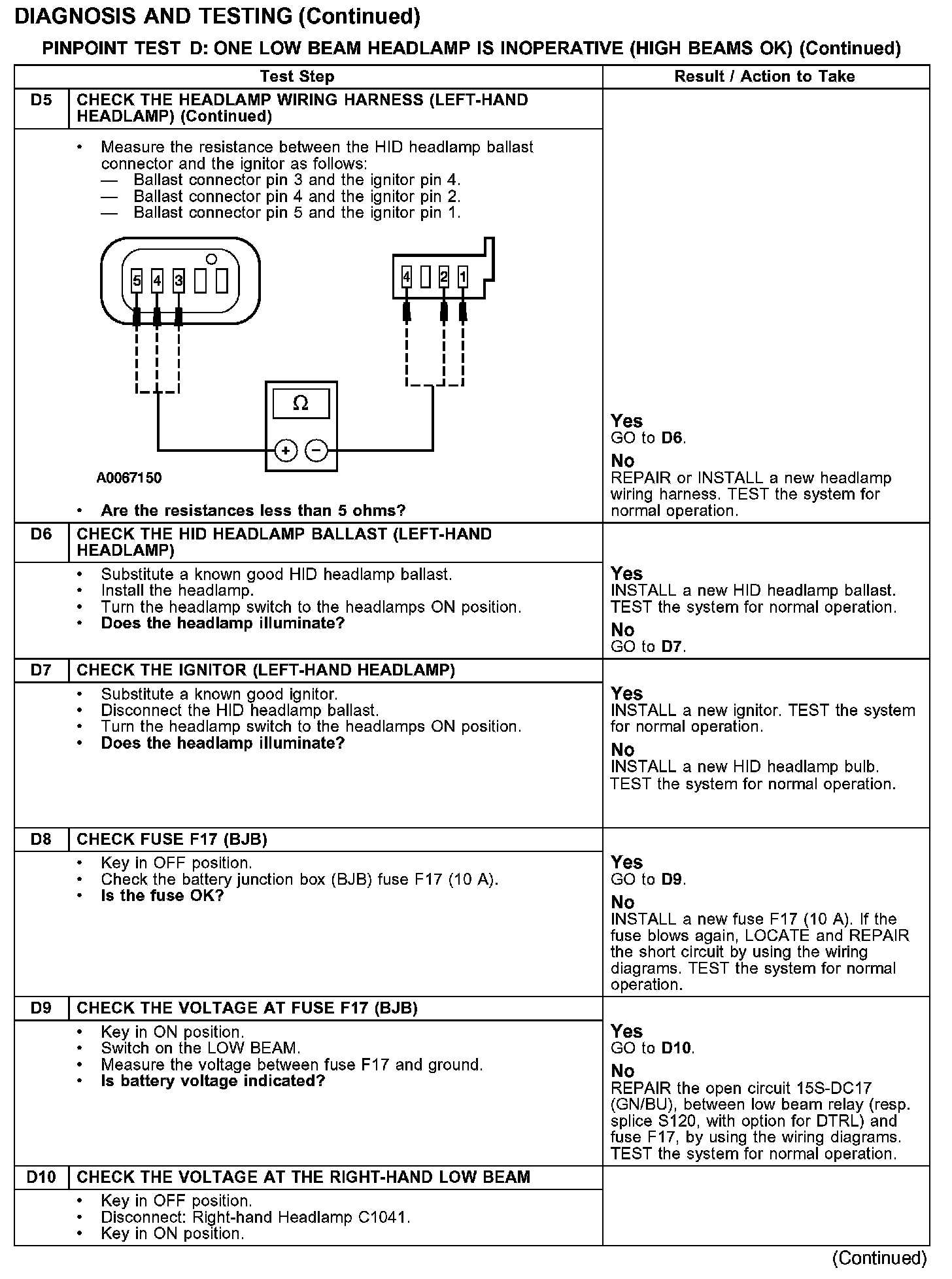

Test D5-D10:

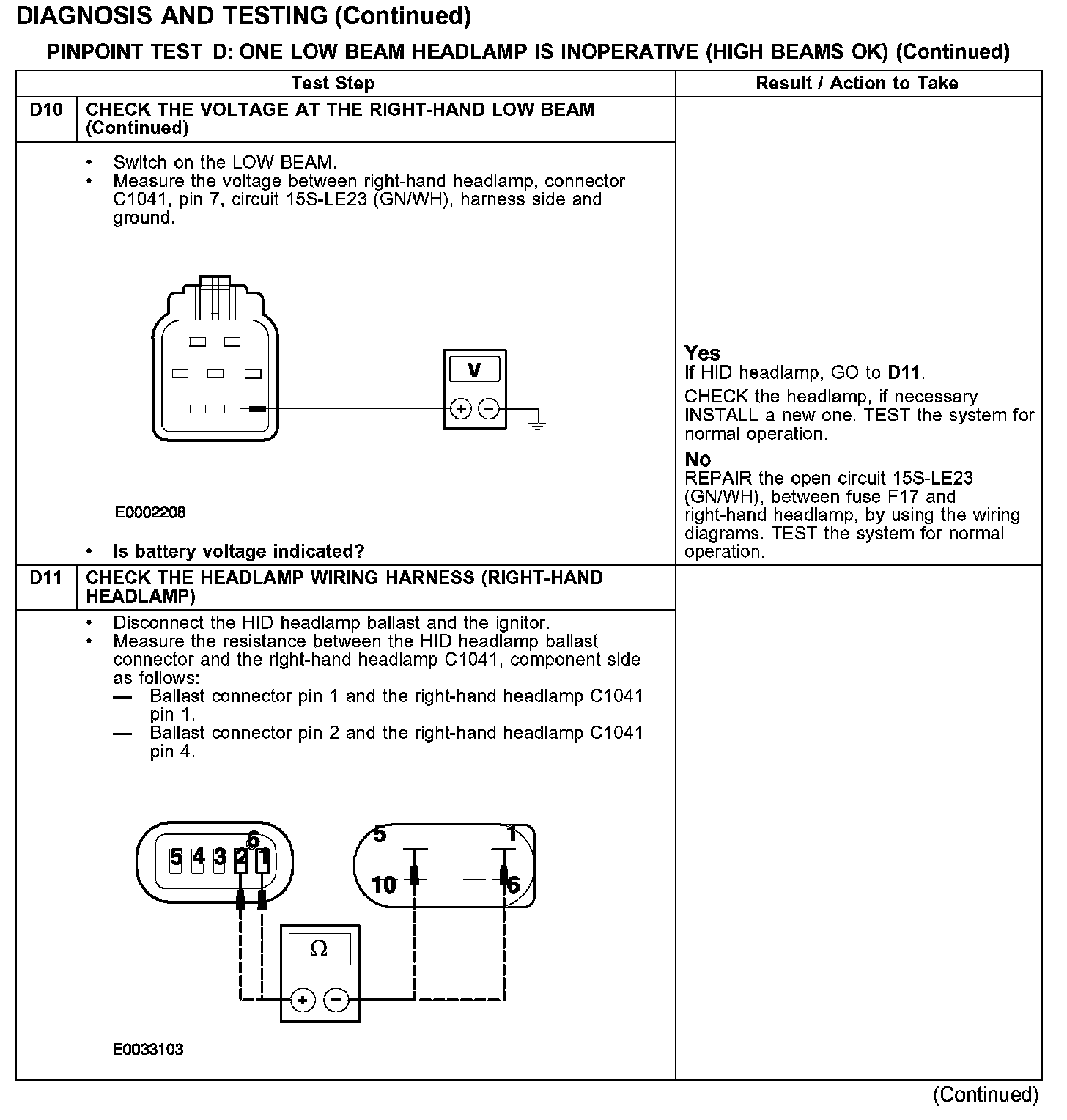

Test D10-D11:

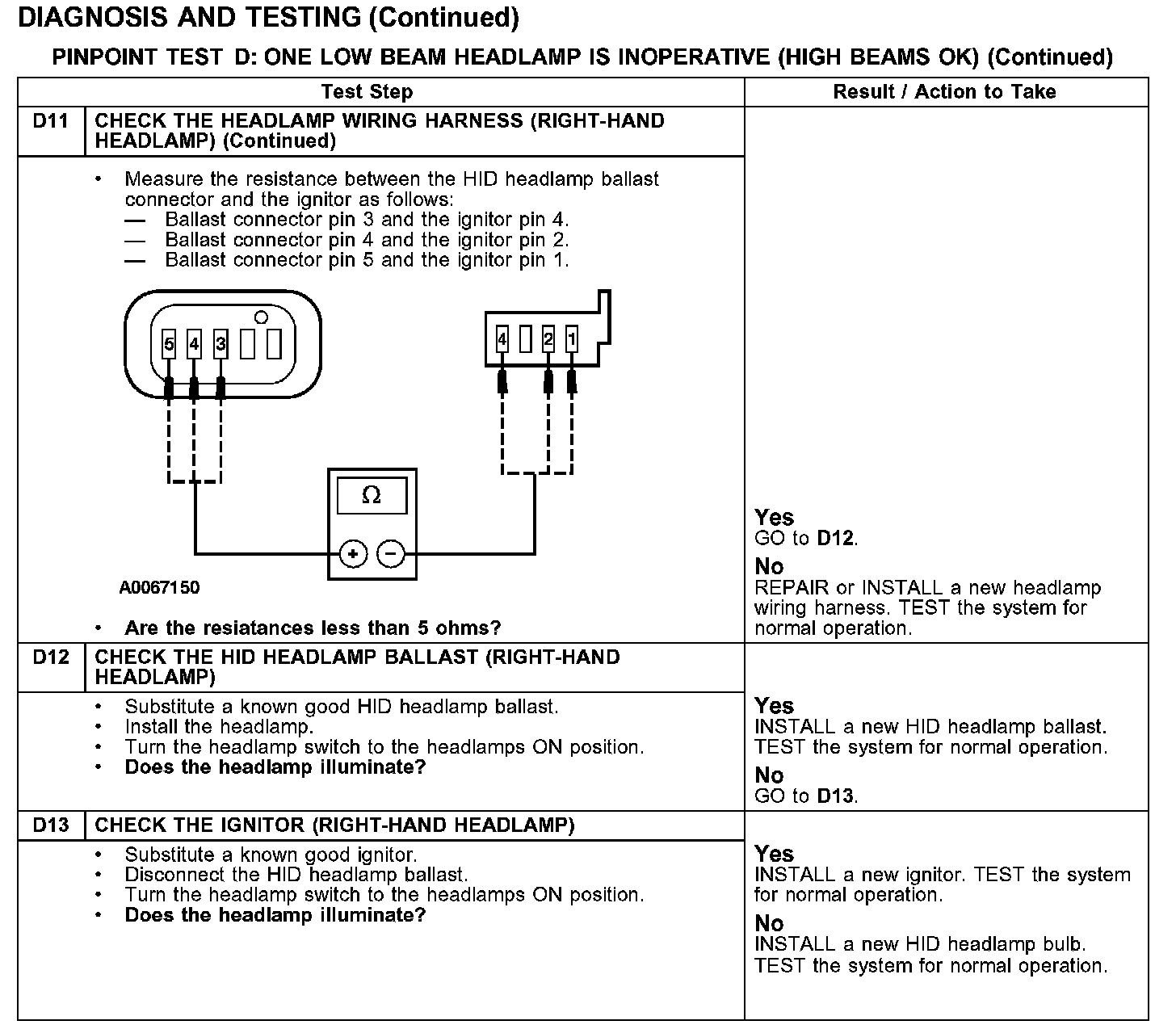

Test D11-D13:
