Central Junction Box (CJB)



Central Junction Box (CJB), Top:





Central Junction Box (CJB), Rear:

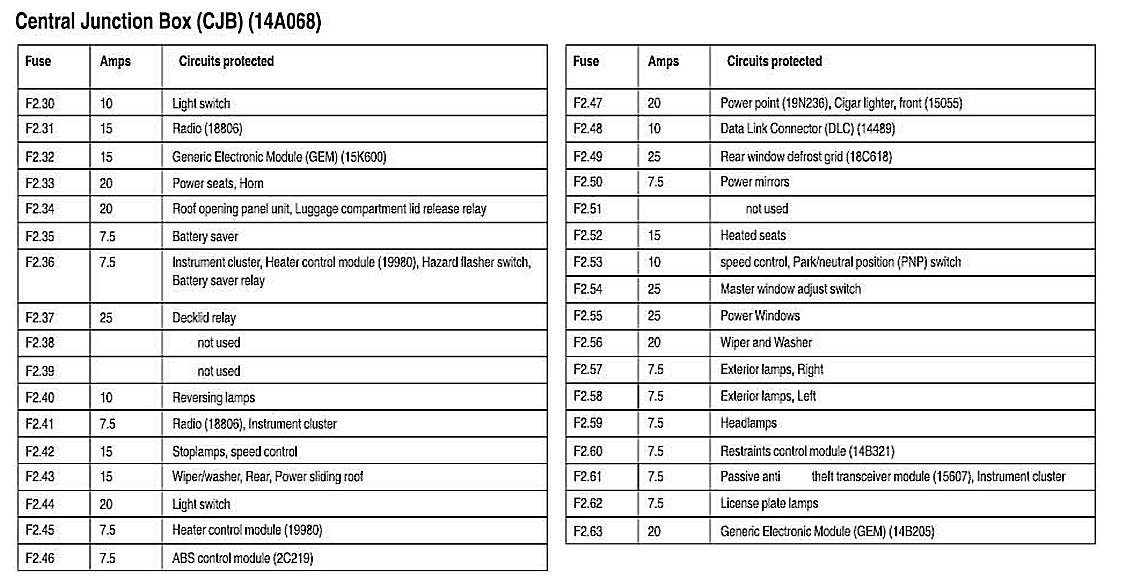

Central Junction Box (CJB):
