Rear Toe Adjustment

Rear Toe Adjustment





General Equipment

Adjustment

1. NOTE: This operation should be carried out on a flat surface and in accordance with the manufacturers instructions for the particular wheel alignment equipment used.

Examine all suspension components for signs of damage or wear.
2. Check and, if necessary, adjust the tire pressures to specification.
3. Make sure the vehicle is at curb weight and that the spare wheel, Jack and vehicle tools are stowed in their designated positions. Additional items should be removed from the vehicle.
4. Bounce the vehicle to make sure that the suspension is in its normal resting position.
5. Using suitable Four wheel alignment equipment, check the toe setting.
6. Raise and support the vehicle.

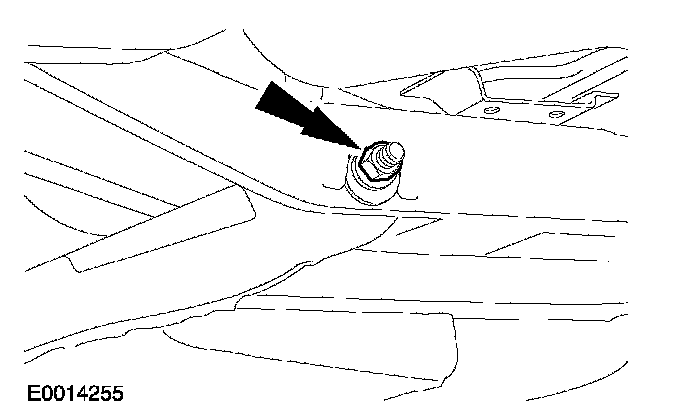

7. Loosen the nut.

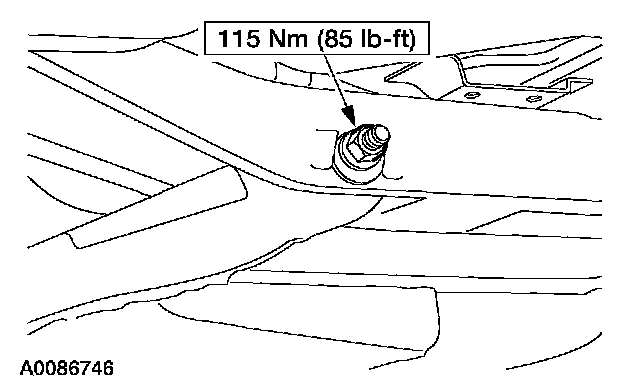

8. Tighten the nut.
9. Lower the vehicle.
^ Bounce the vehicle to make sure that the suspension is in its normal resting position.





10. Adjust the toe setting.

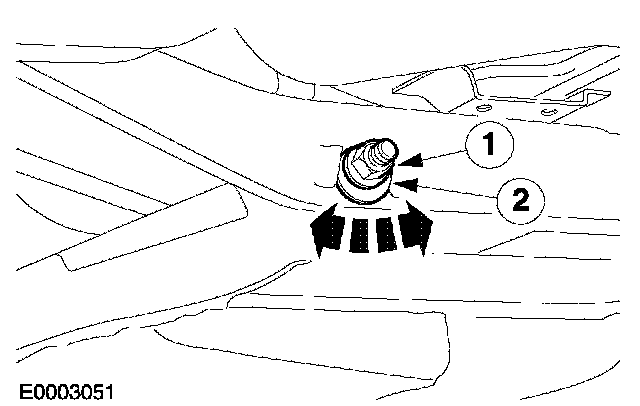

^ Rotate the bolt and eccentric washer to achieve the required setting.

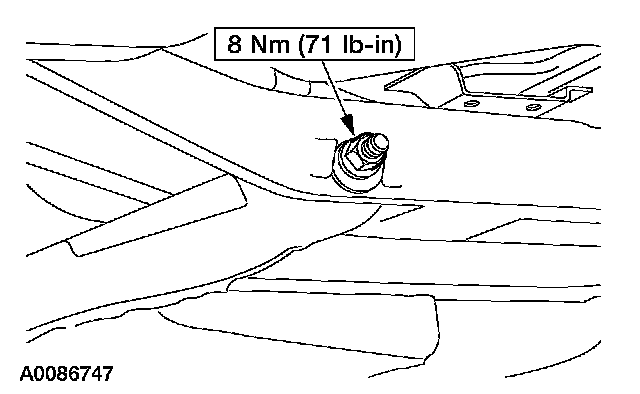

11. Tighten the nut.
