Home >> Ford >> 2004 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C

PINPOINT TEST C: NO POWER IN RUN

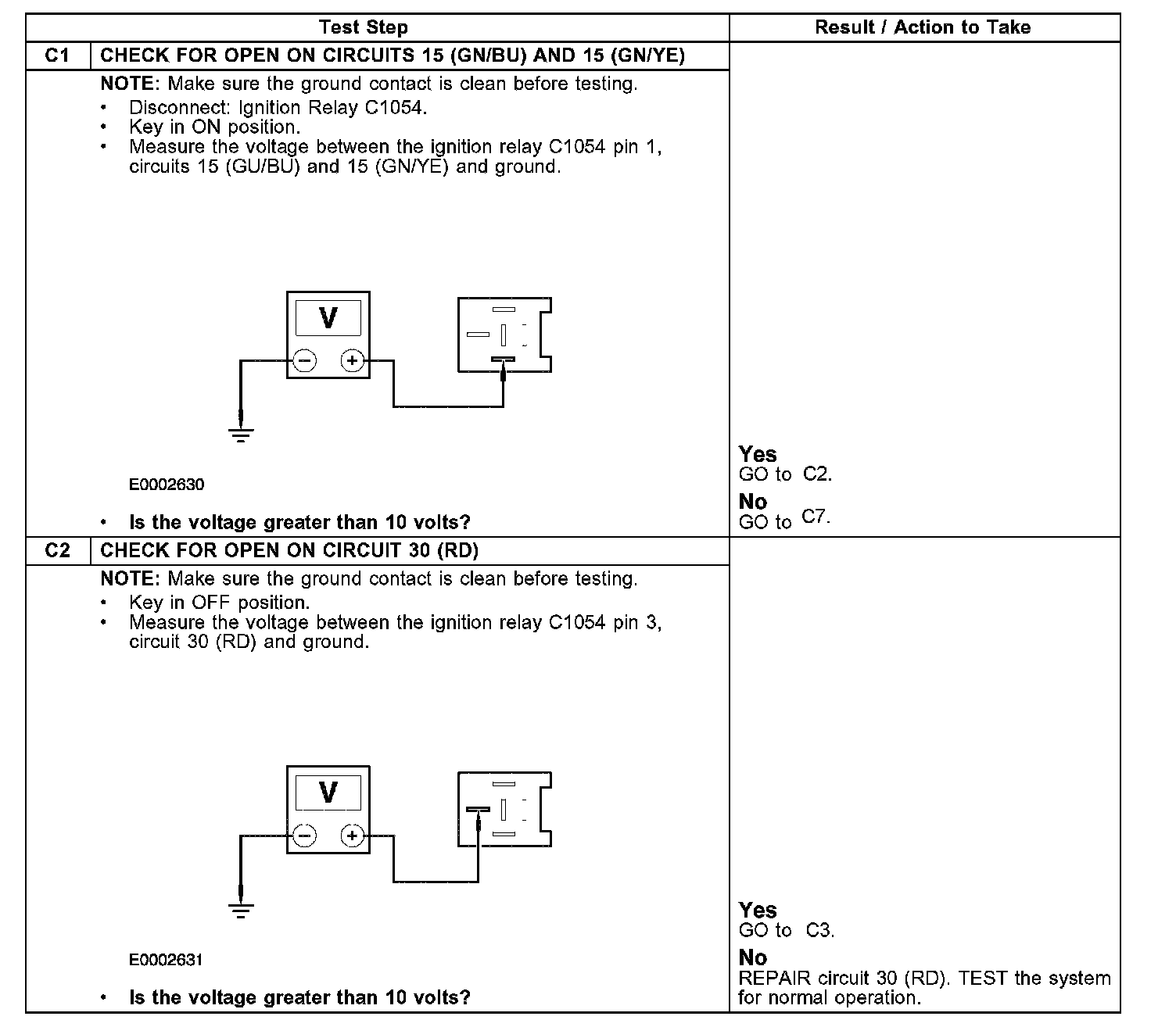

Tests C1 - C2:

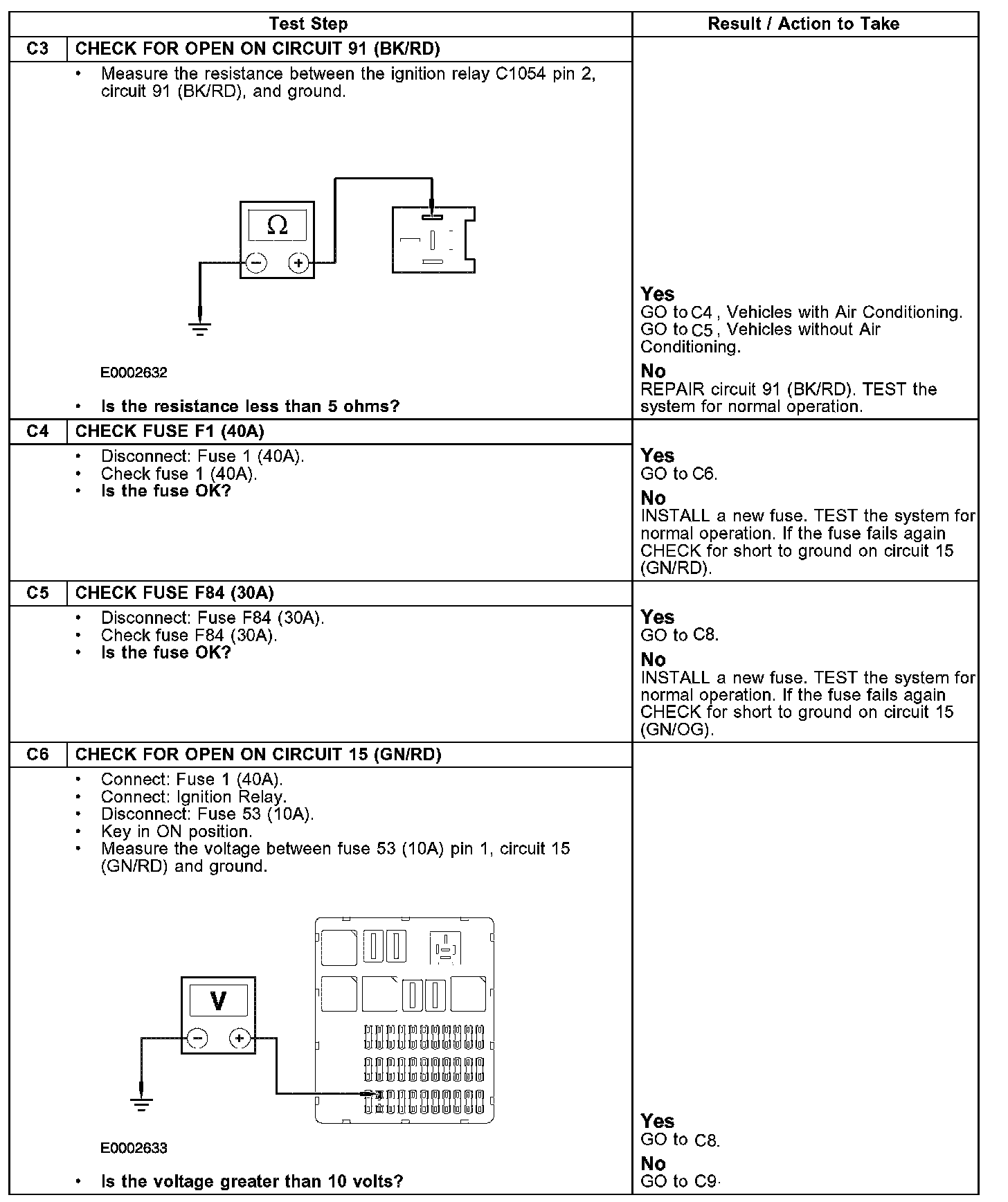

Tests C3 - C6:

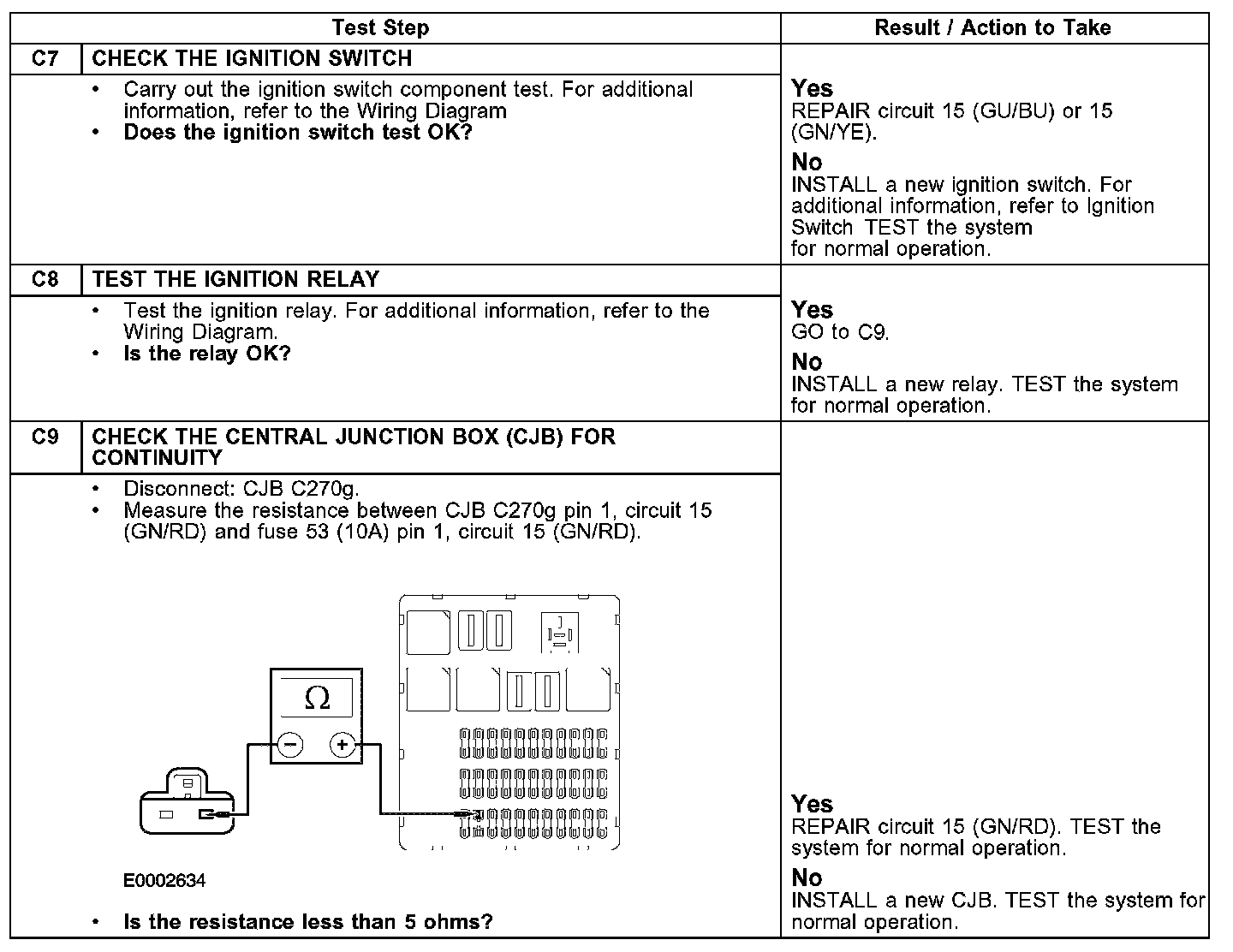

Tests C7 - C9:
