Auxiliary

BLOWER MOTOR RESISTOR - AUXILIARY

REMOVAL
1. Remove the LH quarter trim panel.

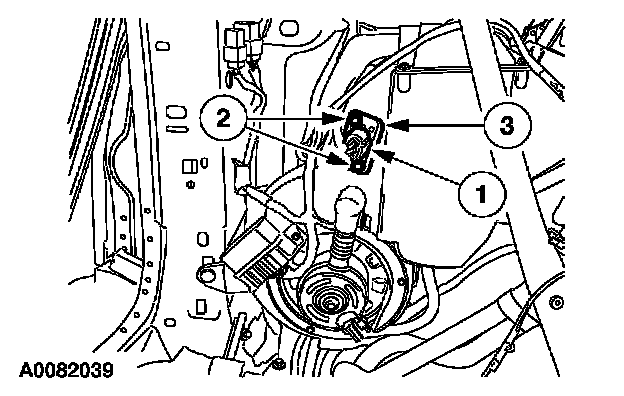

2. Remove the auxiliary blower motor resistor.
1 Disconnect the auxiliary blower motor resistor electrical connector.
2 Remove the screws.
3 Remove the auxiliary blower motor resistor.

INSTALLATION
1. To install, reverse the removal procedure.
