Housing Assembly HVAC: Service and Repair

PLENUM CHAMBER, ASSEMBLY AND COMPONENTS

REMOVAL

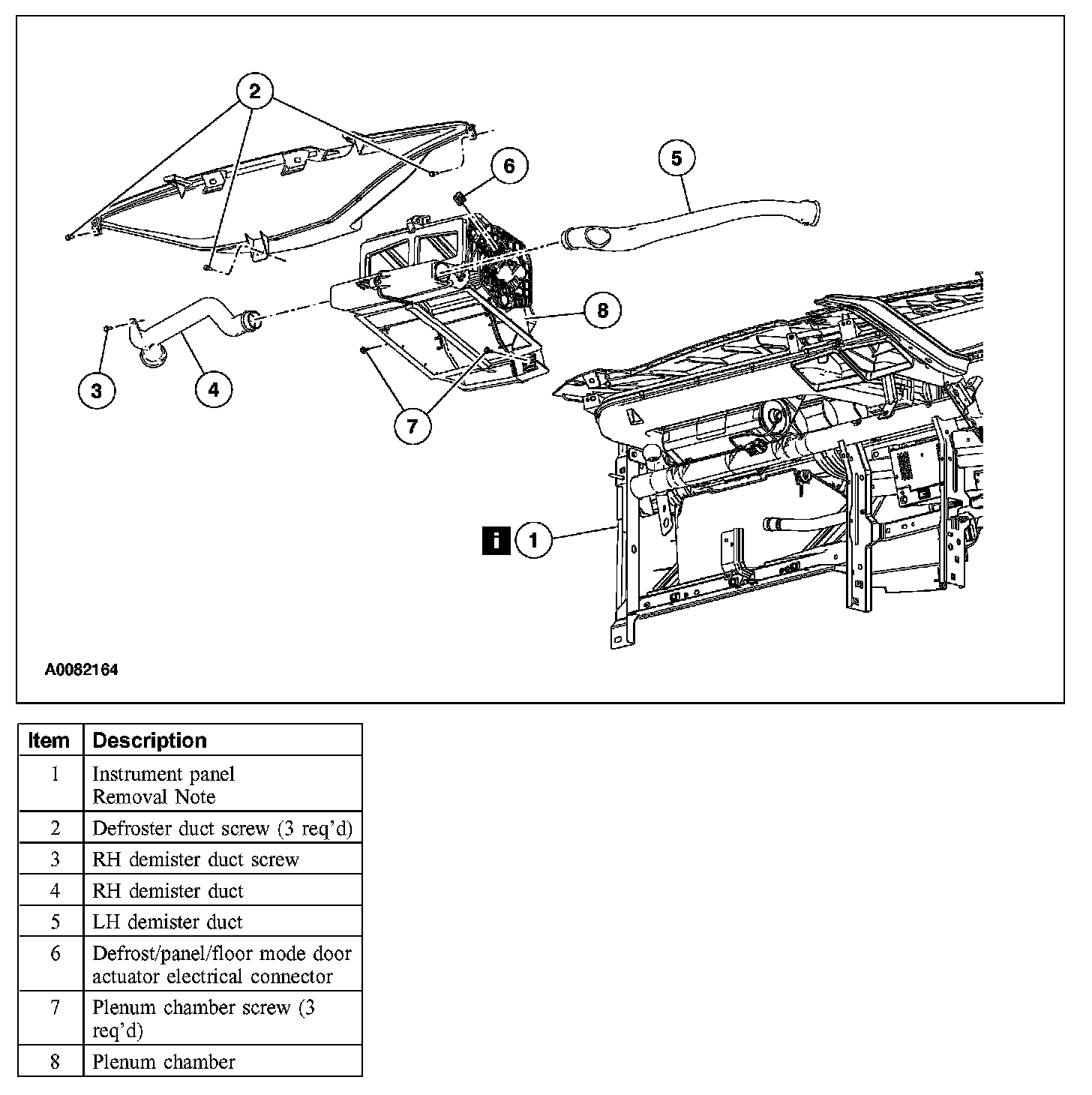

1. Remove the parts in the order indicated in the illustration and table.

Item 1: Instrument Panel Removal Note
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Service and Repair

INSTALLATION
1. To install, reverse the removal procedure.
