Test F

PINPOINT TEST F: THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

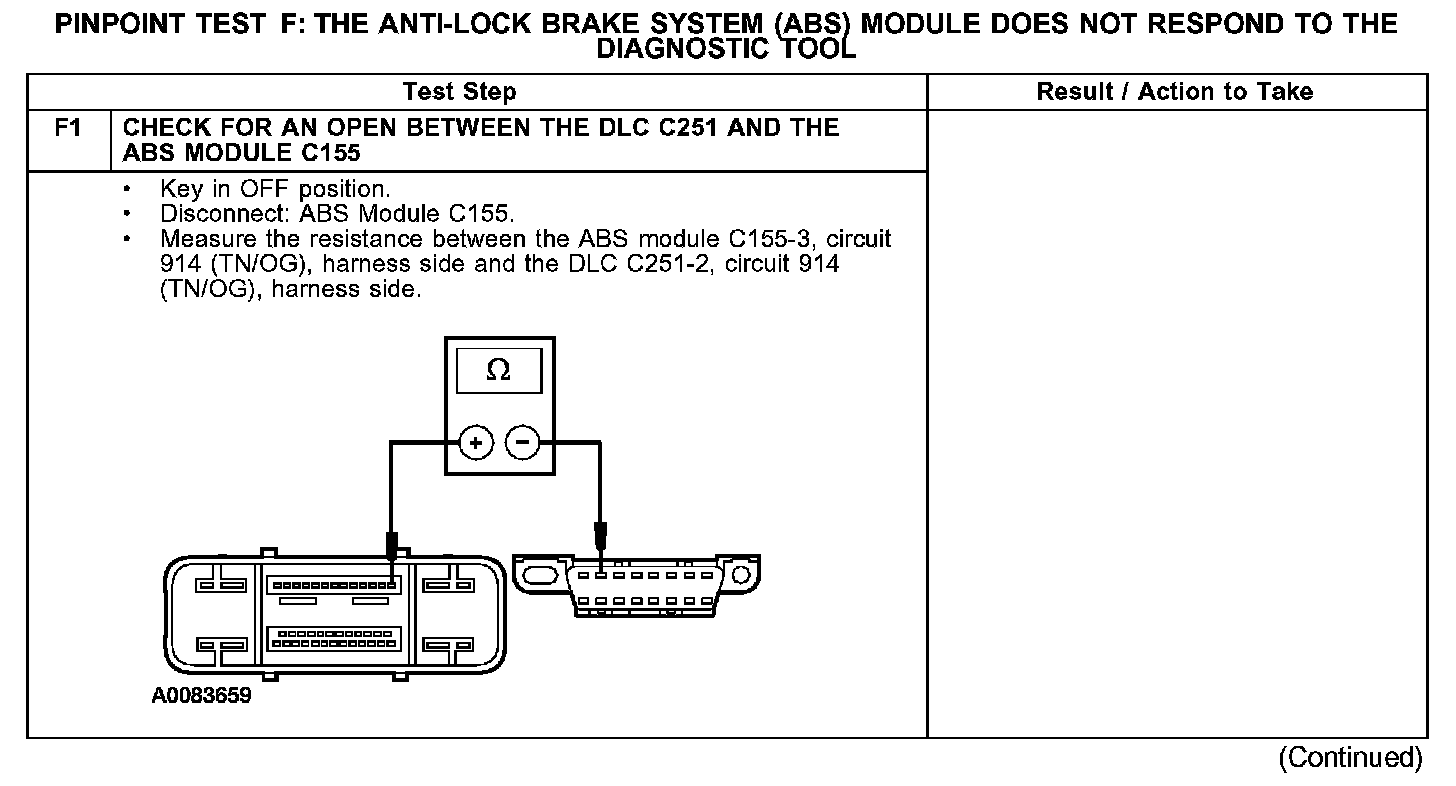

Test F1:

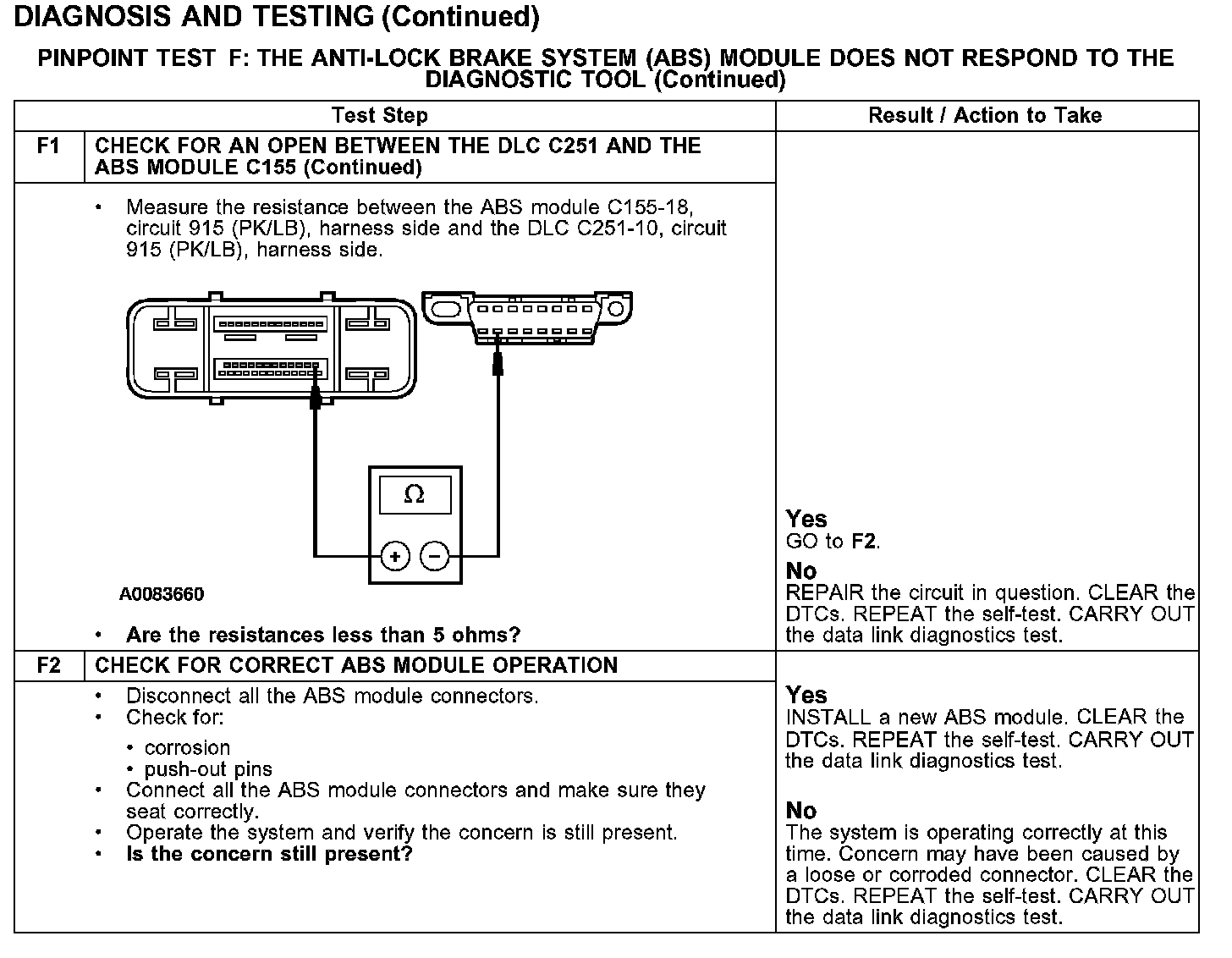

Test F1-F2:

Normal Operation
The ABS module communicates with the diagnostic tool through the SCP communications network circuits 914 (TN/OG) and 915 (PK/LB). If one of the bus wires becomes shorted to ground or voltage, or if some but not all termination resistors are lost, communications can continue at a degraded level. Check circuits 914 (TN/OG) and 915 (PK/LB) between the ABS module C155 and the DLC C251. Total resistance values must not be more than 5 ohms. If the resistance is more than 5 ohms, there is an open in SCP network circuits, damage to the DLC C251, damage to the ABS module C155, or a problem in the in-line connectors.

Possible Causes
- SCP circuits 914 (TN/OG) and 915 (PK/LB), shorted to ground or open
- DLC C251
- ABS Module
