Safety Canopy Module
SAFETY CANOPY MODULESpecial Tool(S):

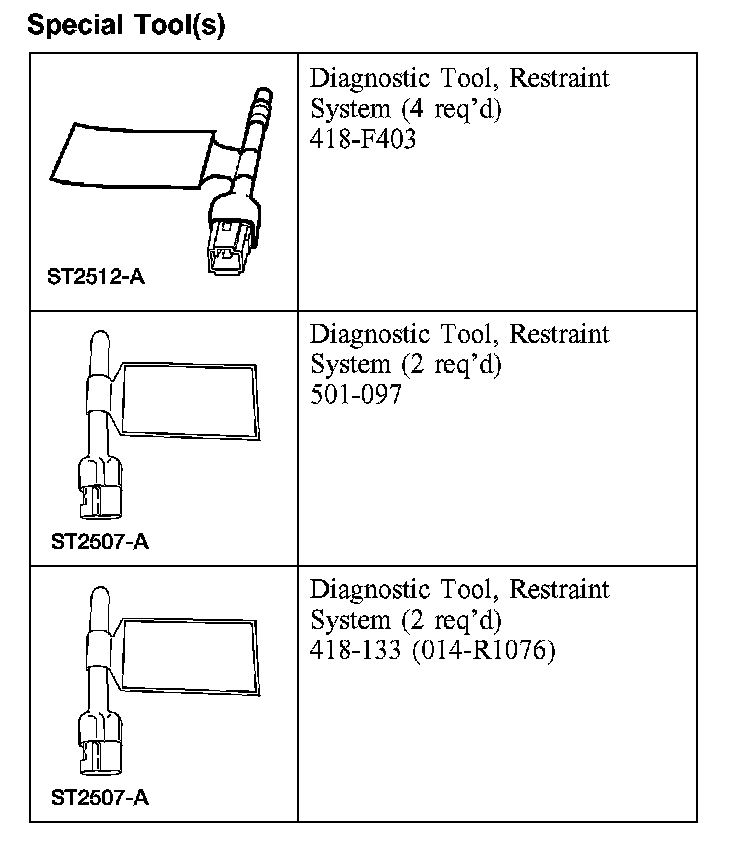

SPECIAL TOOL(S)
REMOVAL
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- To reduce the risk of personal injury from an accidental deployment, always carry or place a live safety canopy module with the safety canopy and tear seam pointed away from your body. Failure to do so can result in personal injury in the event of a safety canopy module deployment.
- After deployment, the surface of the safety canopy can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connector on the safety canopy module. Doing so can result in side safety canopy deployment which can result in personal injury.
- Anytime the safety canopy has deployed, the headliner, and all A, B, C, and D pillar upper trim panels and attaching hardware must be replaced along with any other damaged components and hardware. Failure to do so can result in personal injury in the event of a safety canopy deployment.
- Vehicles equipped with safety canopy modules require a specific headliner. When installing a new headliner on a vehicle equipped with safety canopy modules, make sure a headliner for safety canopy modules is being used. The word "AIRBAG" will appear on the headliner where it meets each B-pillar trim panel. Failure to do so can result in personal injury in the event of a safety canopy module deployment.
- Before installing a safety canopy module, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. All damaged fasteners must be replaced and any foreign objects removed. Failure to do so may result in personal injury in the event of a safety canopy deployment.
- The safety canopy must be installed in the vehicle using new torque-prevailing type J-nuts, part number W709759. Use of this J-nut is mandatory so as to reduce the risk of loss of fastener effectiveness. Failure to follow these instructions may result in personal injury in the event of a safety canopy deployment.
- Inspect the safety canopy before installation. If the safety canopy is damaged or the cover has separated and the canopy material has been exposed, a new safety canopy module must be installed. Do not attempt to repair the safety canopy module. Failure to follow these instructions can result in personal injury in the event of a safety canopy module deployment.
- To reduce the risk of injury, do not obstruct or place objects in the deployment path of the safety canopy module. Failure to follow these instructions can result in personal injury in the event of a safety canopy module deployment.
- Never put any type of fastener or tie strap around any part of the safety canopy module or interior trim panel. This will prevent the safety canopy module from deploying correctly. Failure to do so can result in personal injury in the event of a safety canopy module deployment.
- The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
NOTE:
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors or RCM, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The front impact severity sensor is located under the hood latch bracket.
The first row side impact sensors (if equipped) are located under the seat, beneath the carpet.
The second row side impact sensors (if equipped) are located at or near the base of the C-pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to Air Bag(s) Arming and Disarming.
Deactivate the supplemental restraint system (SRS). Refer to Air Bag(s) Arming and Disarming.
3. WARNING: Anytime the safety canopy has deployed, the headliner, and all A, B, C, and D pillar upper trim panels and attaching hardware must be replaced along with any other damaged components and hardware. Failure to do so may result in personal injury in the event of a safety canopy deployment.
Remove the headliner.
4. WARNING: The safety canopy must be installed in the vehicle using new torque-prevailing type J-nuts, part number W709759. Use of this J-nut is mandatory so as to reduce the risk of loss of fastener effectiveness. Failure to follow these instructions may result in personal injury in the event of a safety canopy deployment.
NOTE: The LH side safety canopy module is shown, the RH side is similar.

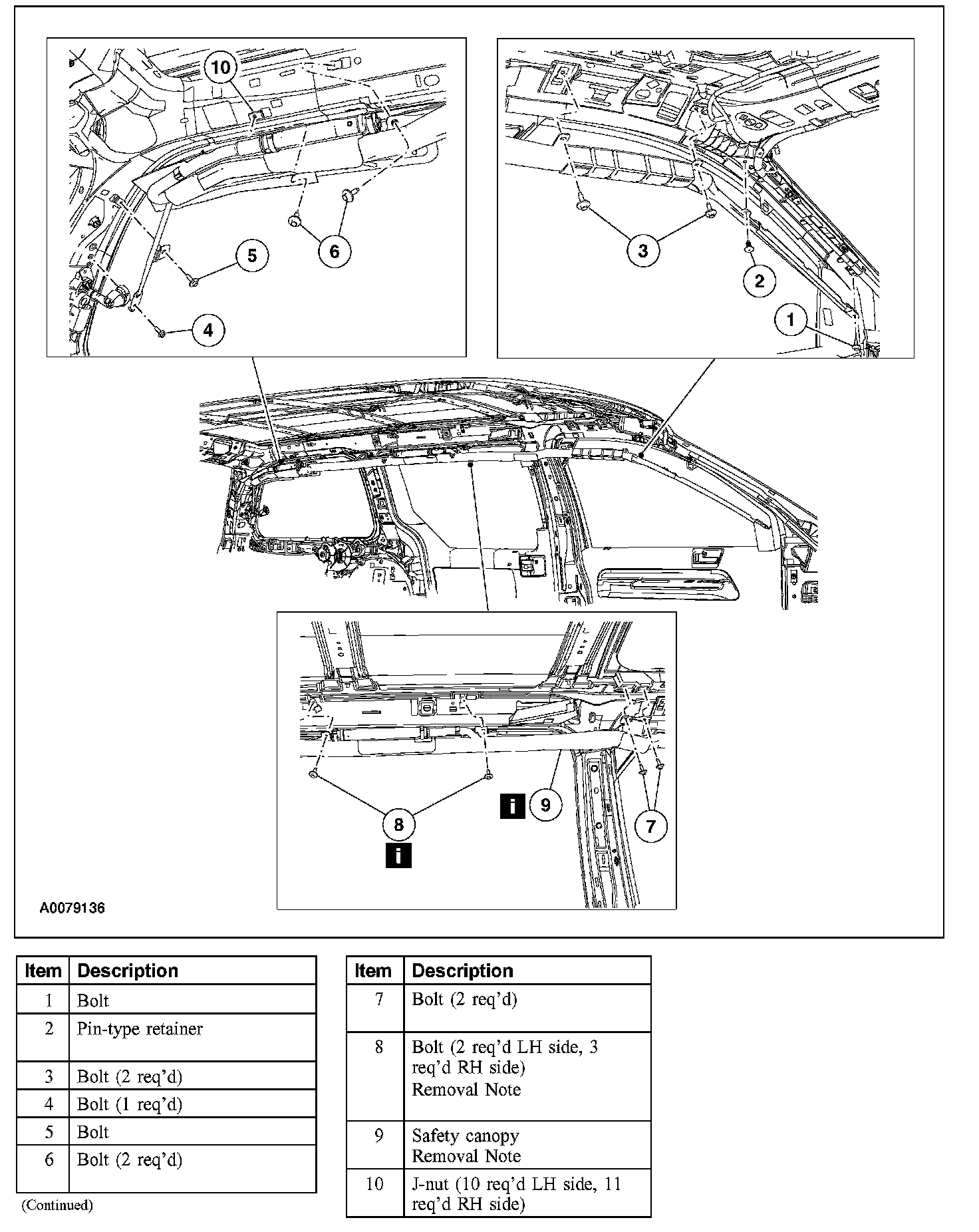

Remove the parts in the order indicated in the illustration and table.
Item 8: Bolt Removal Note

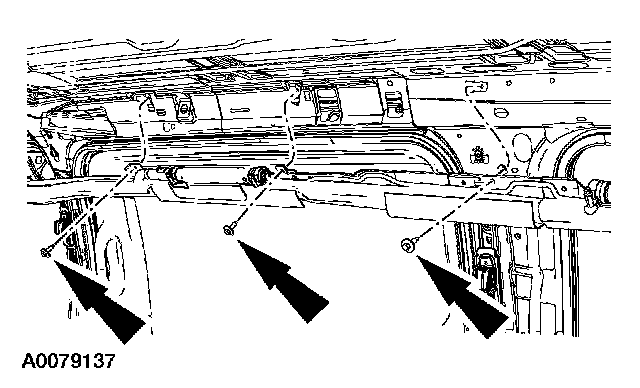

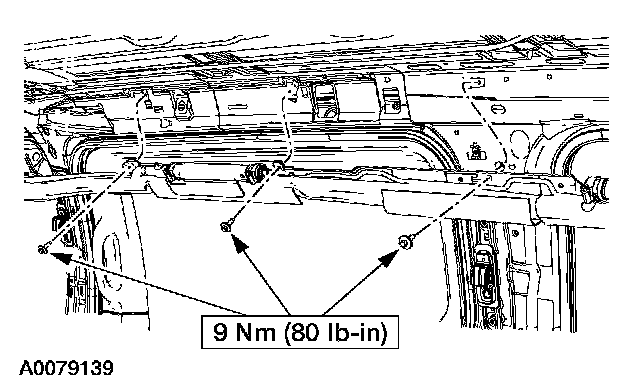

1. Remove the three bolts on the passenger side.
Item 9: Safety Canopy Removal Note

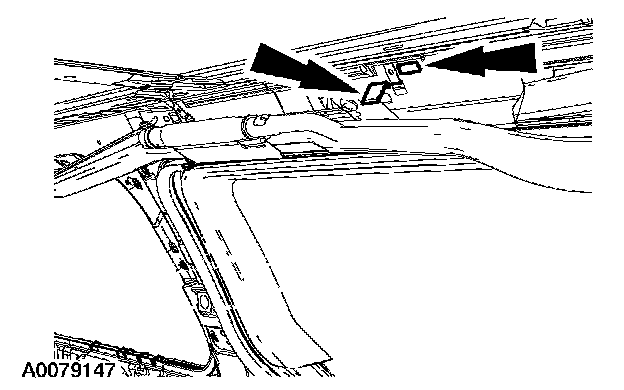

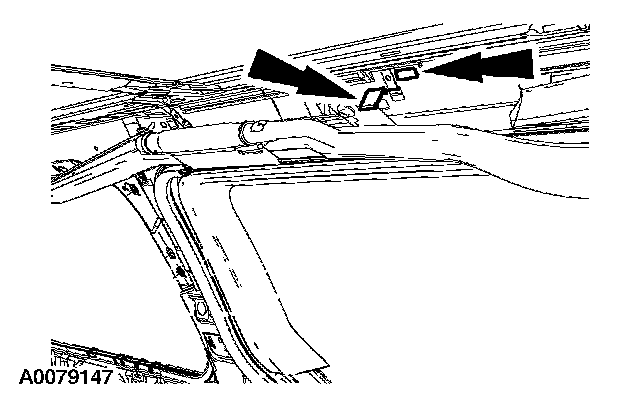

1. Just to the front of the B-pillar, slide the safety canopy module up and pull out to disengage the front retainer from the sheet metal.

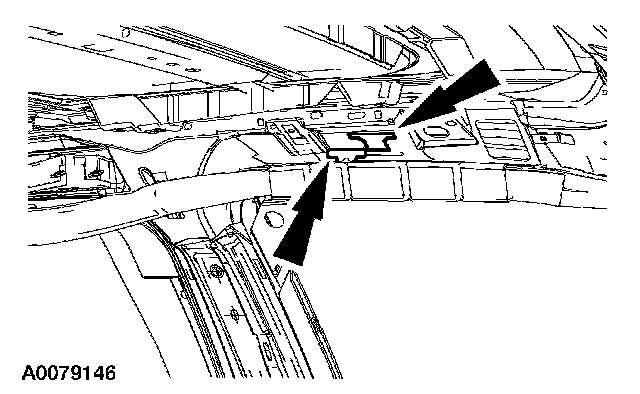

2. Between the B and C-pillars, slide the safety canopy module up and rotate the middle retainer out of the sheet metal.

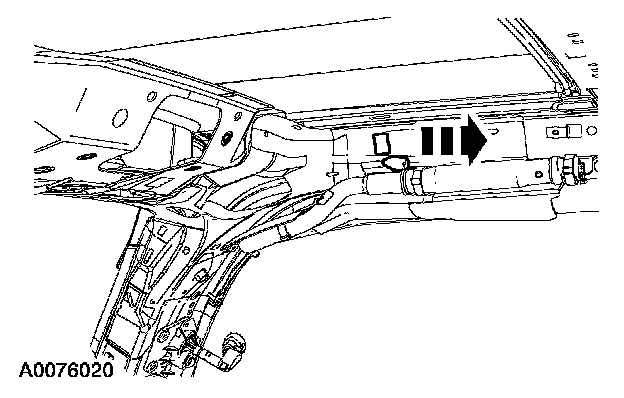

3. Angle the front of the safety canopy module to the opposite end of the vehicle, then slide forward, disengaging the rear retainer near the D-pillar from the sheet metal and remove the safety canopy module.
INSTALLATION
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
NOTE: Make sure the battery negative cable is still disconnected before proceeding with the installation portion of this procedure.
1. WARNING: The safety canopy must be installed in the vehicle using new torque-prevailing type J-nuts, part number W709759. Use of this J-nut is mandatory so as to reduce the risk of loss of fastener effectiveness. Failure to follow these instructions may result in personal injury in the event of a safety canopy deployment.
Remove all J-nut fasteners and install new.
2. WARNING:
- Before installing a safety canopy module, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign objects. Failure to do so can result in personal injury in the event of a safety canopy deployment.
- Inspect the safety canopy module before installation. If the safety canopy module is damaged or the cover has separated and the canopy material has been exposed, a new safety canopy module must be installed. Do not attempt to repair the safety canopy module. Failure to follow these instructions can result in personal injury in the event of a safety canopy module deployment.
- Never put any type of fastener or tie strap around any part of the safety canopy module or interior trim panel. This will prevent the safety canopy module from deploying correctly. Failure to do so can result in personal injury in the event of a safety canopy module deployment.
NOTE:
- The LH side safety canopy module is shown, the RH side is similar.
- Make sure the battery negative cable is still disconnected before continuing with the installation portion of this procedure.
Install the parts in the order indicated in the illustration and table.

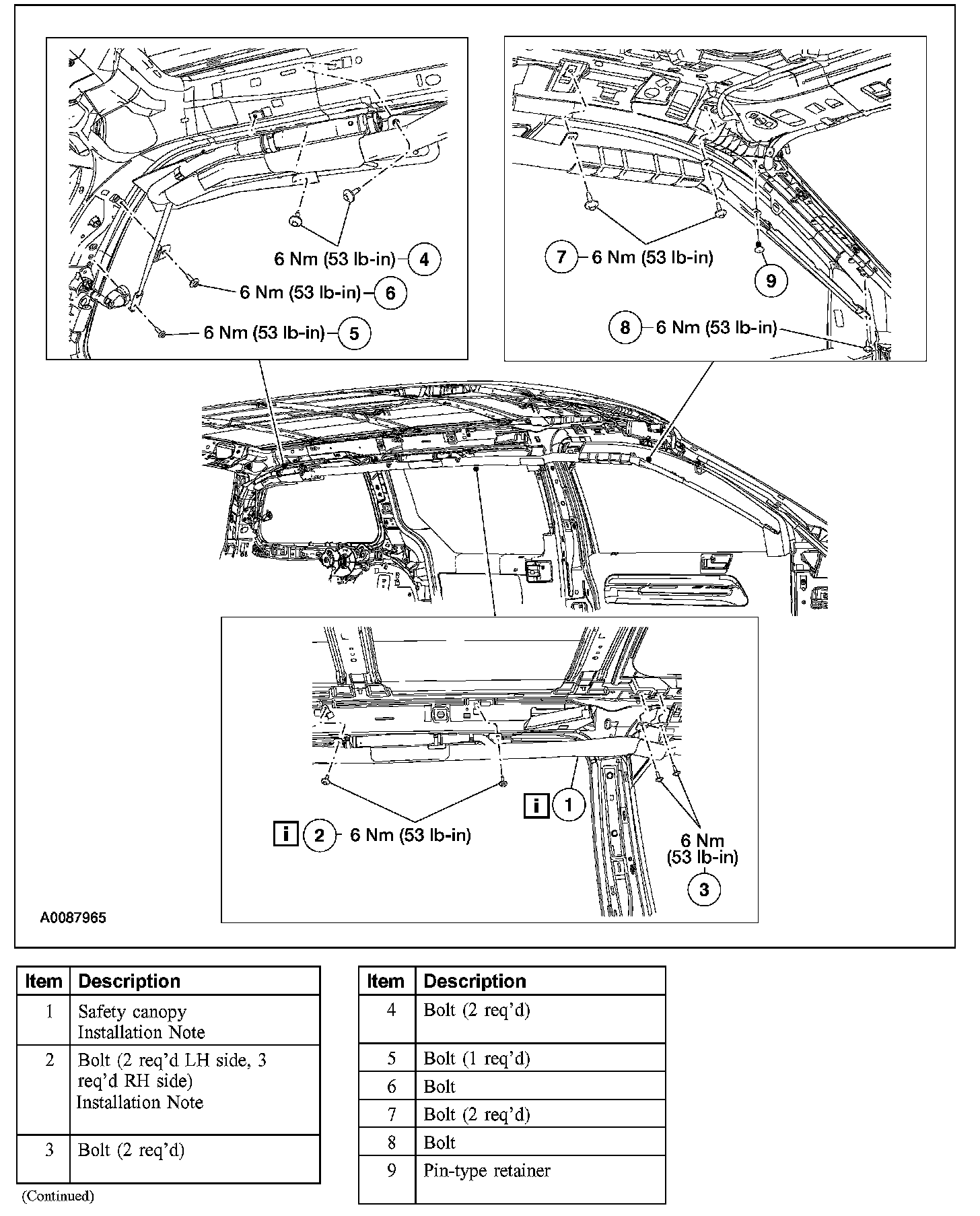

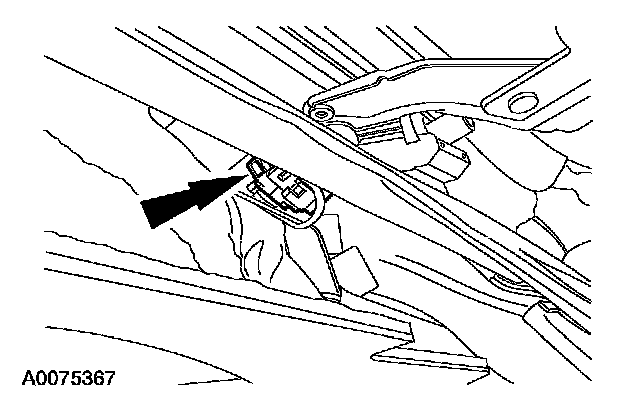

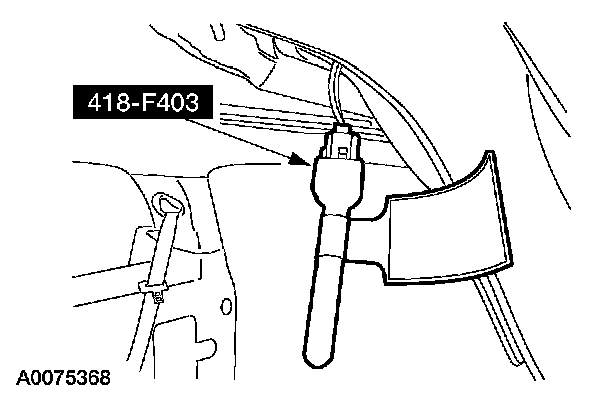

3. Remove the restraint system diagnostic tool from the vehicle harness side of the safety canopy module electrical connector.
4. Connect the safety canopy module electrical connector.
5. Connect the battery ground cable.
6. With the restraint system diagnostic tools still installed at the remaining deployable devices, prove out the supplemental restraint system (SRS). Prove Out Procedure
7. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors or RCM, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The front impact severity sensor is located under the hood latch bracket.
The first row side impact sensors (if equipped) are located under the seat, beneath the carpet.
The second row side impact sensors (if equipped) are located at or near the base of the C-pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
8. WARNING: Anytime the safety canopy has deployed, the headliner, and all A, B, C, and D pillar upper trim panels and attaching hardware must be replaced along with any other damaged components and hardware. Failure to do so may result in personal injury in the event of a safety canopy deployment.
Install the headliner.
9. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to Air Bag(s) Arming and Disarming.
Reactivate the supplemental restraint system (SRS). Refer to Air Bag(s) Arming and Disarming.
10. Connect the battery ground cable.
11. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Prove Out Procedure
12. Check the active restraint system for correct operation.
Item 1: Safety Canopy Installation Note
1. Near the D-pillar, angle the safety canopy module rear retainer into the sheet metal.

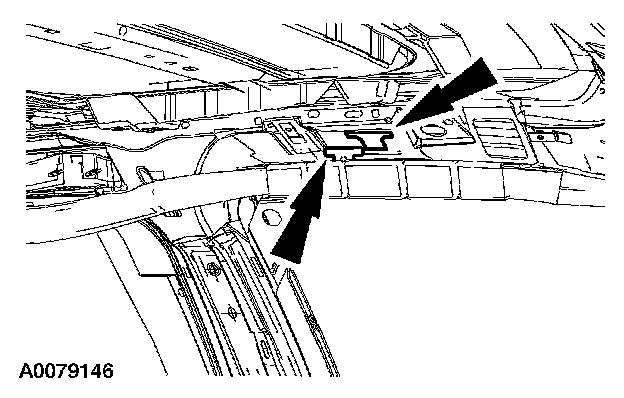

2. Between the B and C-pillars, rotate the middle safety canopy module retainer into the sheet metal and slide down.
3. Just to the front of the B-pillar, position the front safety canopy module front retainer into sheet metal and slide it down.
Item 2: Bolt Installation Note
1. Install the three bolts on the passenger side.
