Shift Interlock Cable: Service and Repair
Transmission Selector Cable1. With the vehicle in NEUTRAL, position it on a hoist.

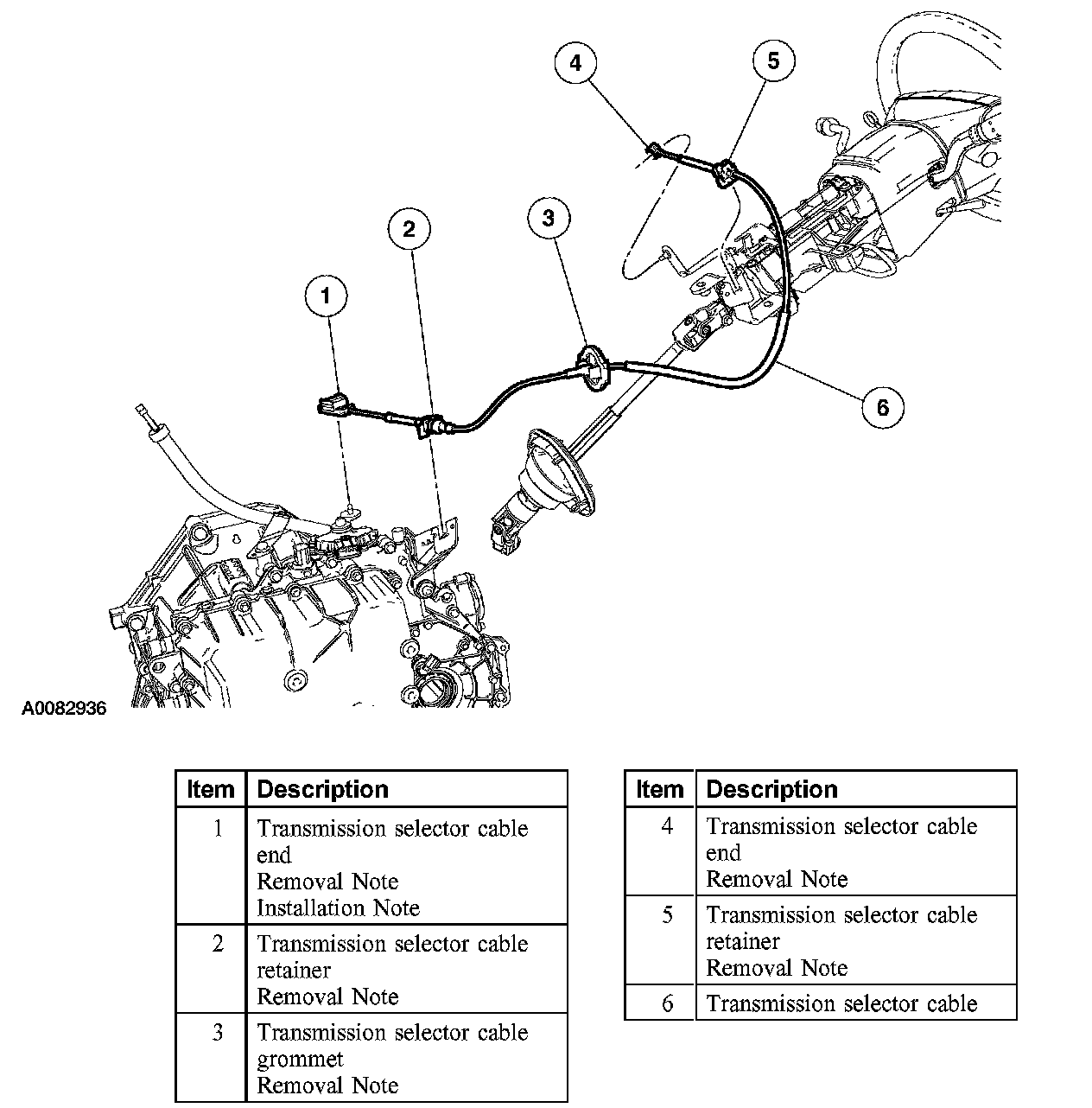

2. Remove the parts in the order indicated in the following illustration and table.
3. To install, reverse the removal procedure.
Items 1 and 2: Transmission Selector Cable End and Retainer Removal Note

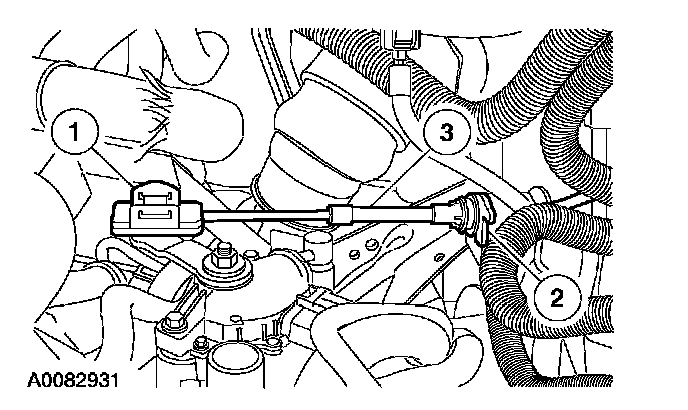

1. Remove the transmission selector cable from the bracket.
1 Disconnect the transmission selector cable end from the manual lever.
2 Push the lock tab and separate the transmission selector cable from the bracket.
3 Position the transmission selector cable out of the way.
Item 3: Transmission Selector Cable Grommet Removal Note

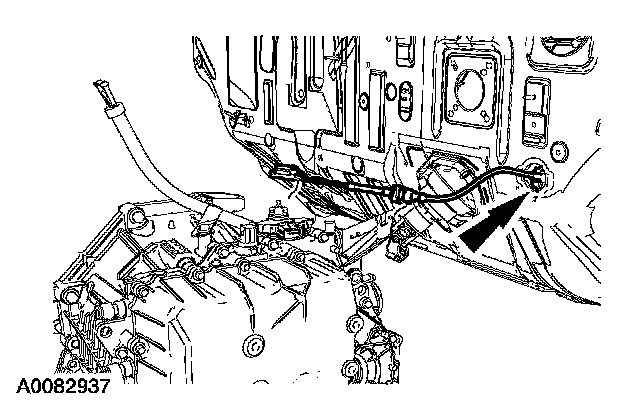

1. Press the lock tabs and push the transmission selector cable through the bulkhead.
Item 4, 5 and 6: Transmission Selector Cable End and Retainer Removal Note

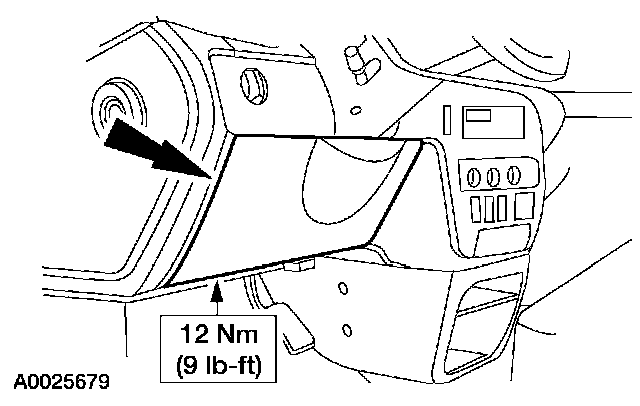

1. Remove the two screws and the instrument panel lower steering column opening cover.

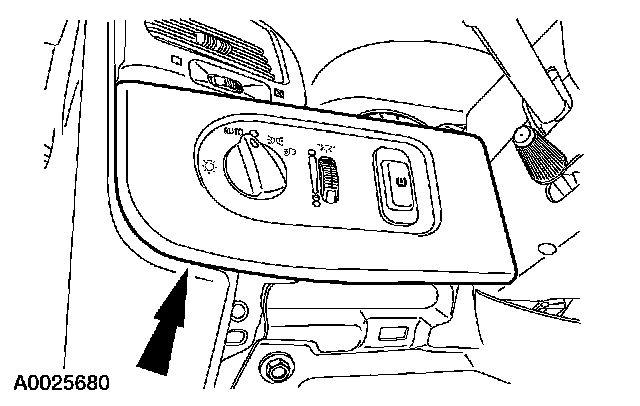

2. Separate the LH instrument panel finish panel from the instrument panel.

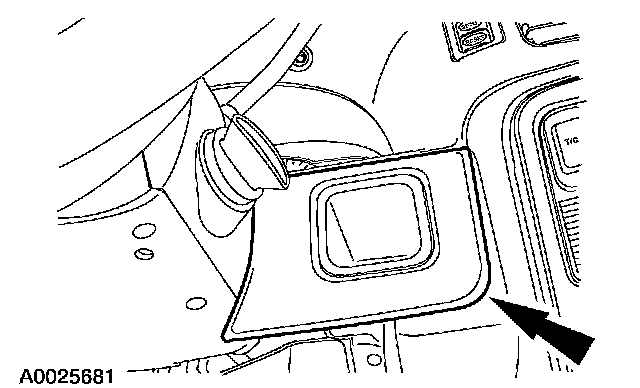

3. Remove the RH instrument panel finish panel.

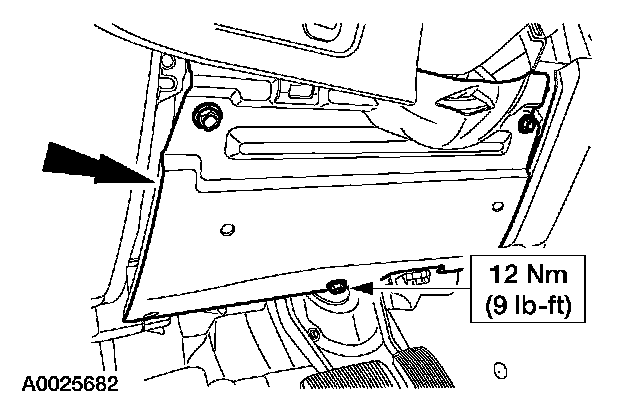

4. Remove the screws and the instrument panel opening reinforcement cover.

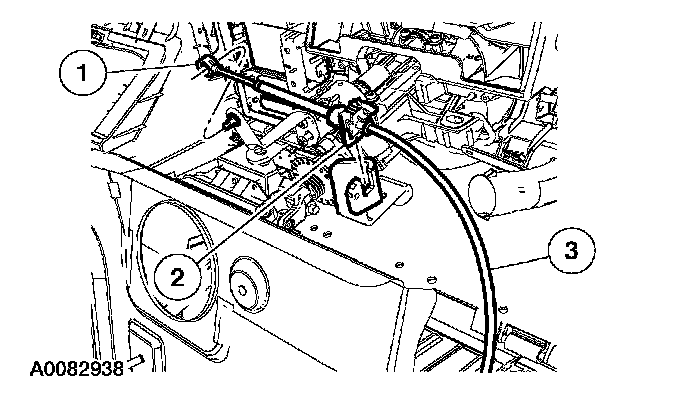

5. Remove the transmission selector cable.
1 Disconnect the transmission selector cable end from the steering column.
2 Push the lock tab and separate the transmission selector cable from the bracket.
3 Remove the transmission selector cable from the vehicle.
Item 1: Transmission Selector Cable End Installation Note
1. Verify that the engine will start in PARK and NEUTRAL and that the reverse lamps illuminate in REVERSE. If not, the transmission selector cable will need to be adjusted. For additional information, refer to Selector Lever Cable Adjustment. Selector Lever Cable Adjustment
