Shift Interlock Solenoid: Service and Repair

Brake Shift Interlock Actuator

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

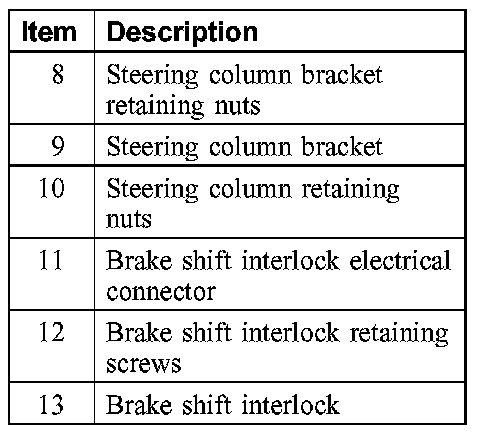

2. Remove the parts in the order indicated in the following illustration and table.
3. To install, reverse the removal procedure.





Item 2: Steering Column Opening Cover Removal Note

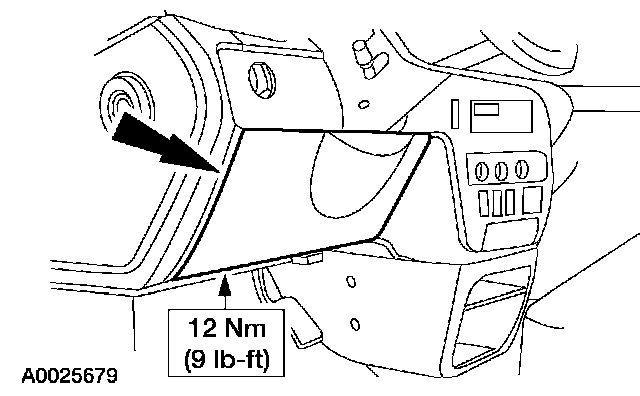

1. Remove the two screws and the instrument panel lower steering column opening cover.

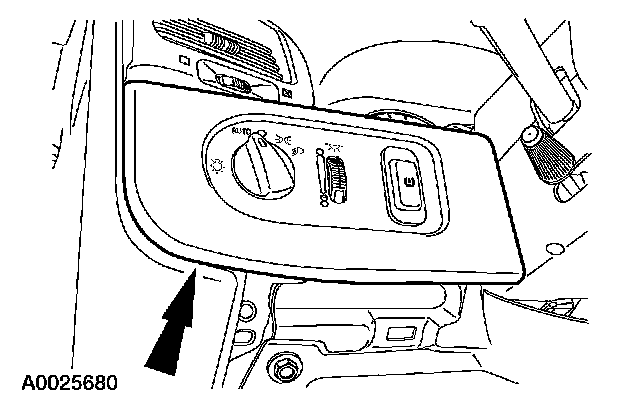

2. Separate the LH instrument panel finish panel from the instrument panel.





3. Remove the RH instrument panel finish panel.

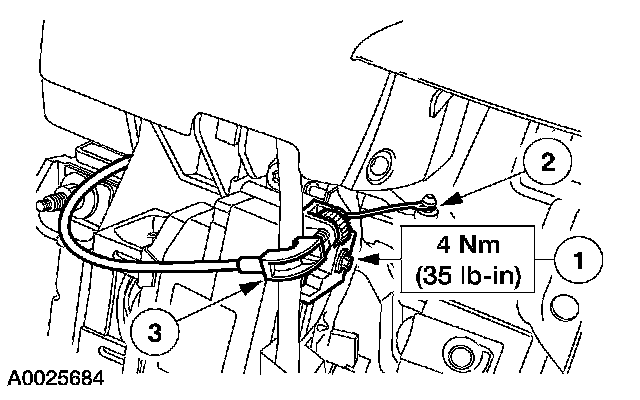

Item 7: Selector Lever Indicator Cable Removal Note
1. Position the selector lever indicator cable aside.
1 Loosen the screw.
2 Disconnect the cable.
3 Position the selector lever indicator cable aside.
