Transmission Mount: Service and Repair

Transaxle Support Insulator

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

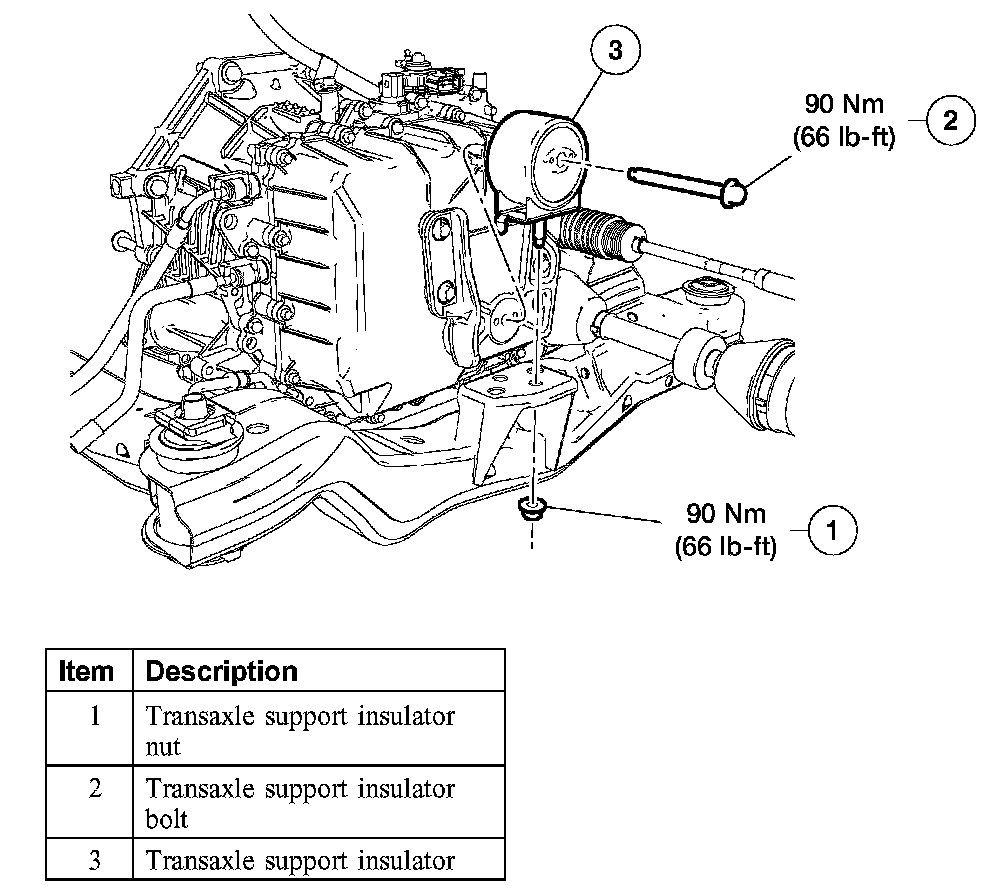

2. Remove the parts in the order indicated in the following illustration and table.
3. To install, reverse the removal procedure.
