Quarter Window Glass: Service and Repair

REAR QUARTER WINDOW GLASS

REMOVAL
1. Remove the rear quarter trim panel.

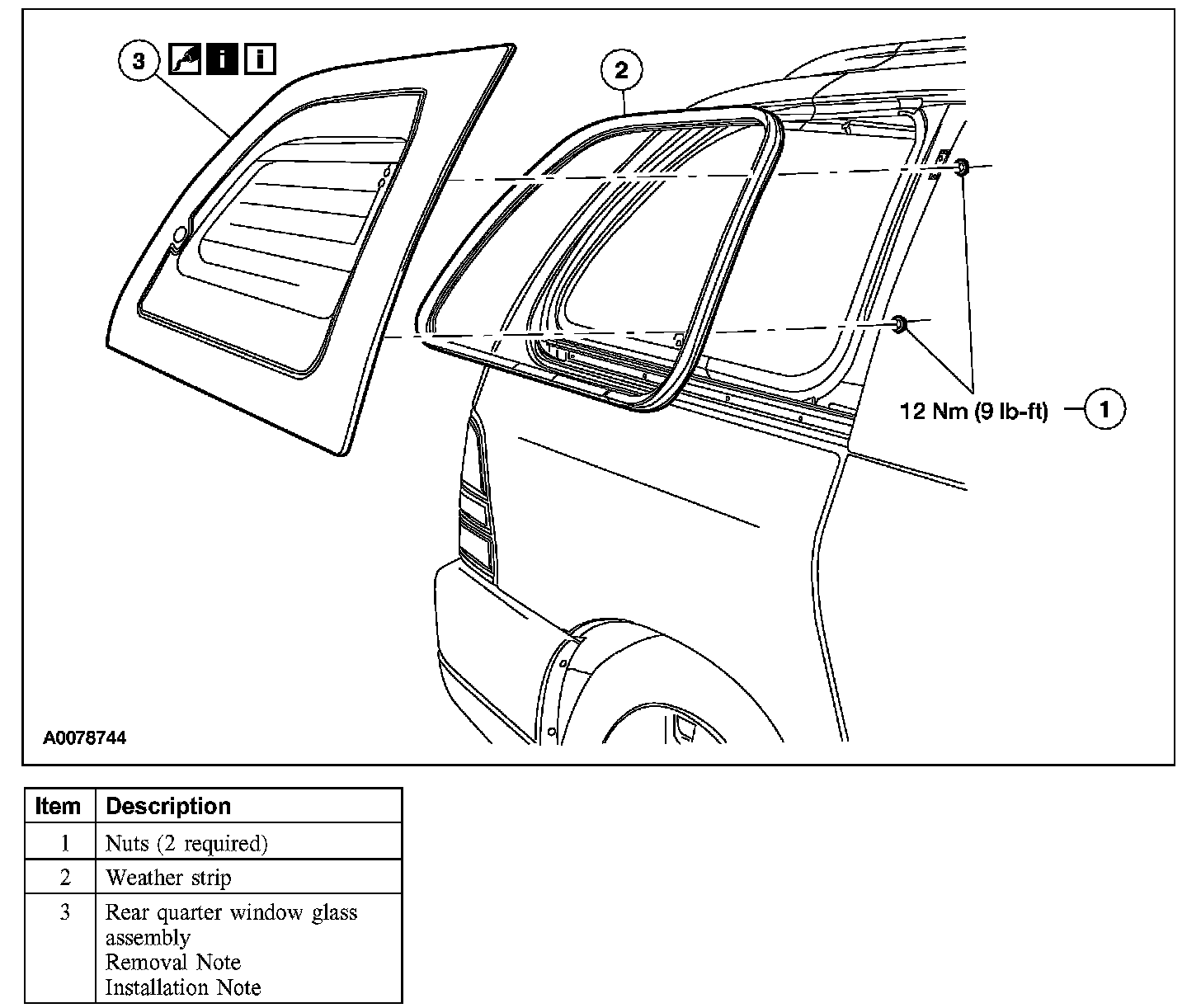

2. Remove the parts in the order indicated in the illustration and table.

Item 3: Rear Quarter Window Glass Assembly Removal Note

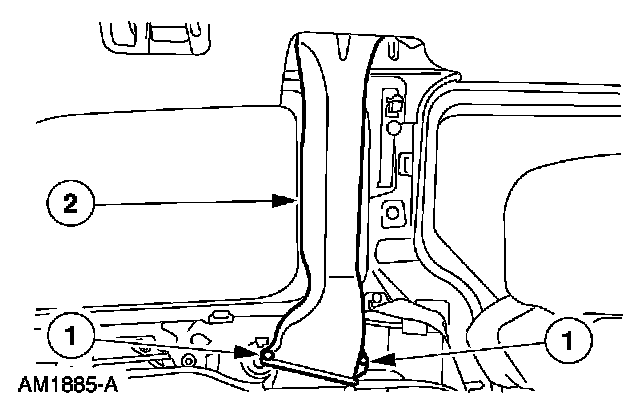

1. If removing the left quarter window glass, remove the rear A/C.
1 Remove the pin-type retainers.
2 Remove the upper A/C duct.

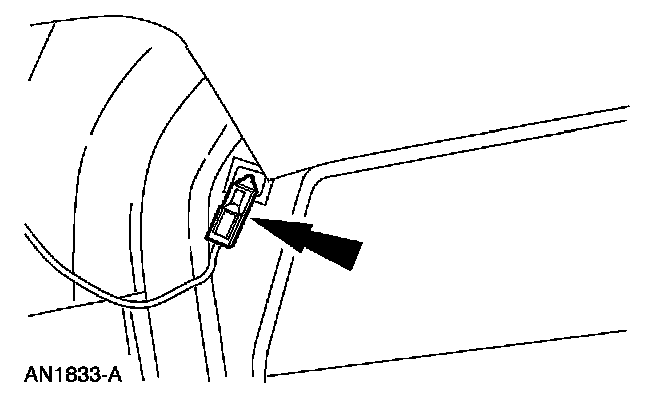

2. If removing the right quarter window glass, disconnect the electrical connector.

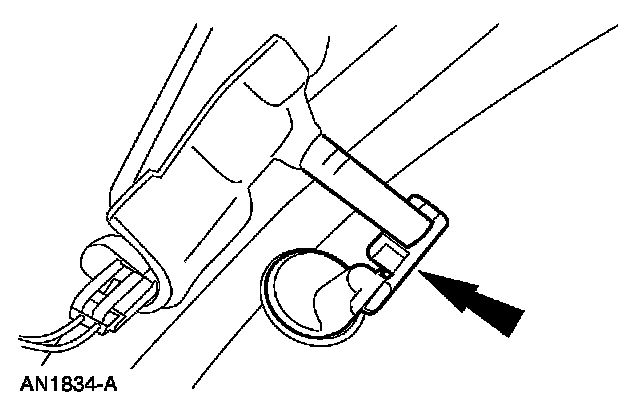

3. Separate the window latch.

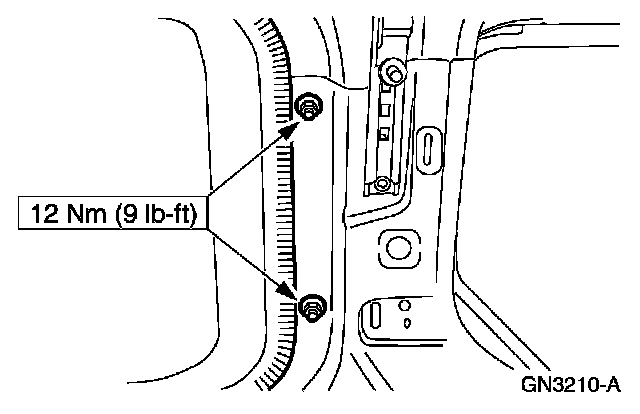

4. Remove the nuts and the rear quarter window glass.


INSTALLATION
1. To install, reverse the removal procedure.

Item 3: Rear Quarter Window Glass Assembly Installation Note

1. If reinstalling the original quarter glass, clean off any remaining butyl prior to installation of the quarter window glass.
2. Clean the area of any remaining residue prior to installation of the quarter window glass.
