Windshield Washer Pump: Service and Repair
WINDSHIELD WASHER PUMP AND RESERVOIRREMOVAL
1. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on the label of the washer solution container.
CAUTION: Do not make any electrical connections prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
Disconnect the battery.
2. Remove the RF front wheel.
3. Position the RF splash shield aside.

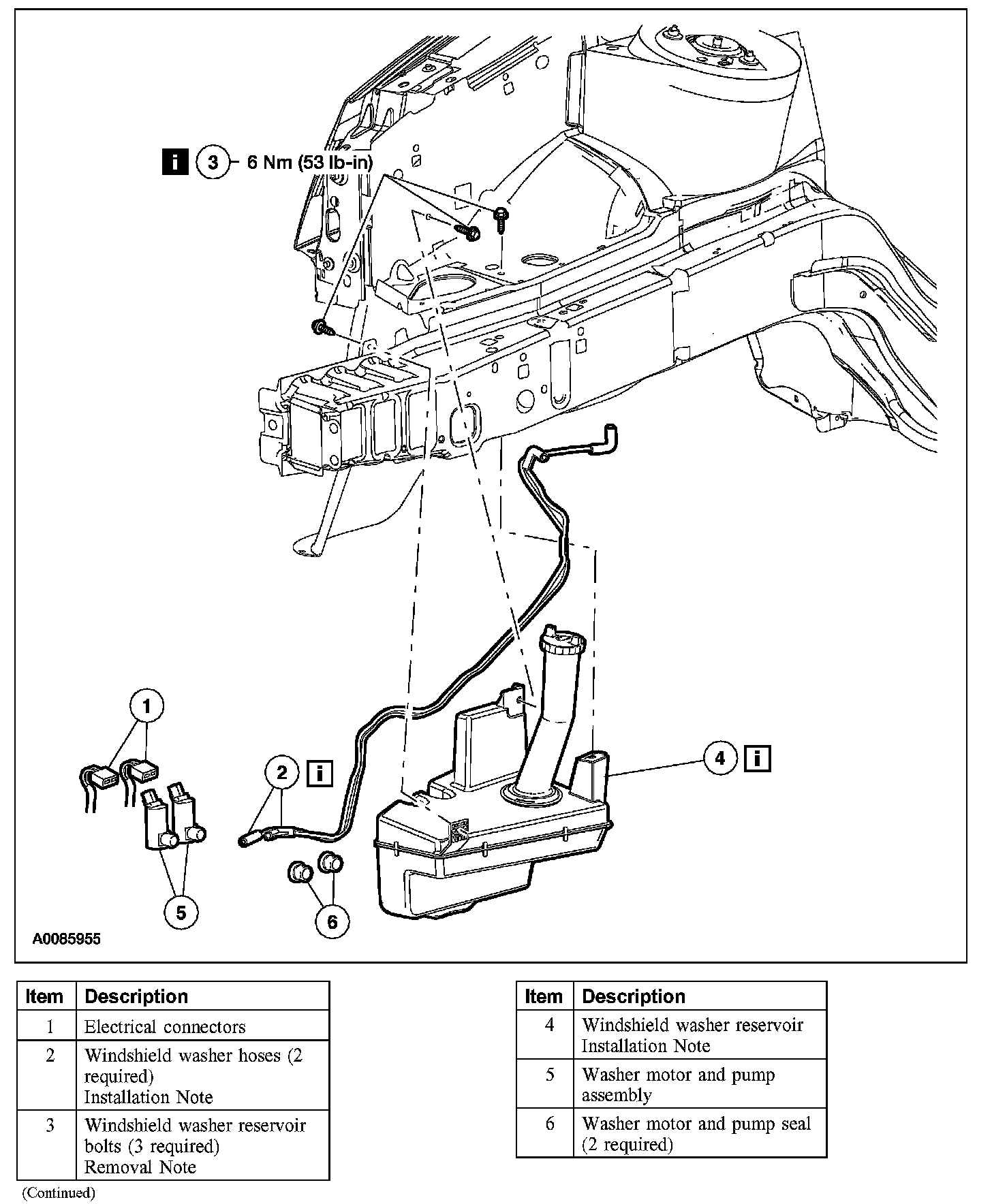

4. Remove the parts in the order indicated in the illustration and table.
Item 3: Windshield Washer Reservoir Bolts Removal Note

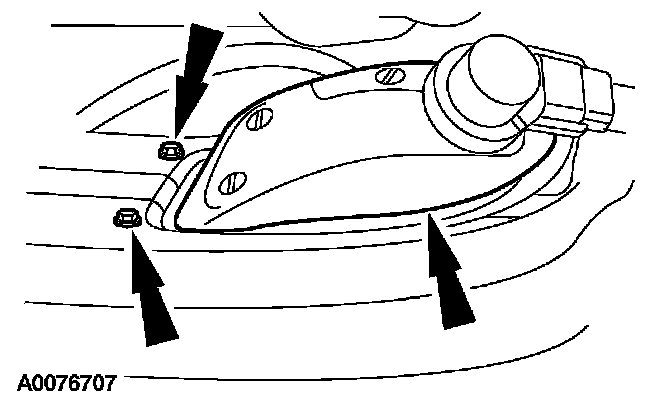

1. Remove the screws and remove the RH corner lamp.
INSTALLATION
1. To install, reverse the removal procedure.
Item 4: Windshield Washer Reservoir Installation Note
1. Position the windshield washer reservoir filler neck through the inner frame support.
Item 2: Windshield Washer Hoses Installation Note
1. Connect the windshield washer hoses to the windshield washer reservoir before installation.
