Front Door: Service and Repair

DOOR

REMOVAL
1. Remove the door trim panel.
2. Disconnect the necessary electrical connectors to remove the harness and grommet from the door.







3. NOTE:
- This procedure requires an assistant.
- Mark the location of the door hinge on the door.

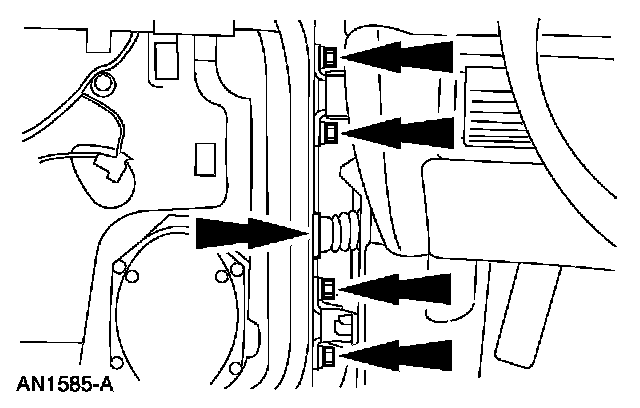

Remove bolts and the door.

INSTALLATION







1. To install, reverse the removal procedure.
