Convertible Top Stay Pad

STAY PAD - CONVERTIBLE TOP

REMOVAL
1. Remove the convertible top material.
2. Remove the rear window glass.

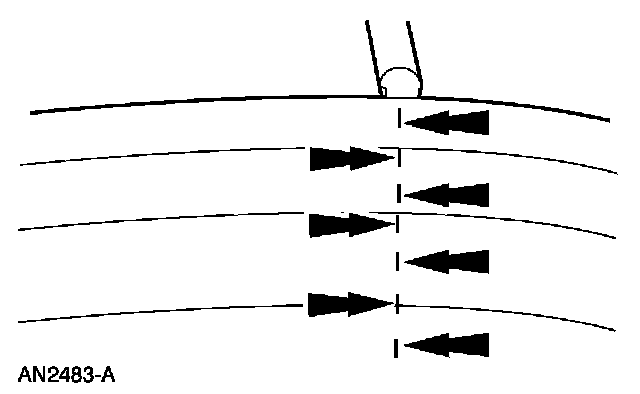

3. NOTE: Mark the old stay pad staple locations and transfer to the new stay pads.

Remove the staples from all of the bows.

INSTALLATION

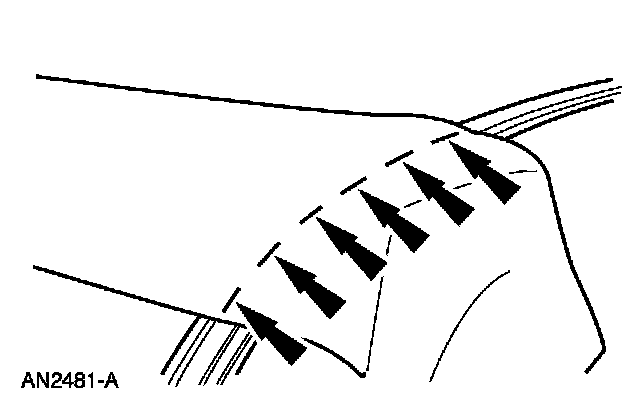

1. Staple the stay pad to the number one bow.







2. NOTE: The stay pad should be tight between the number one and number four bows.

Staple the stay pad to the number four bow.

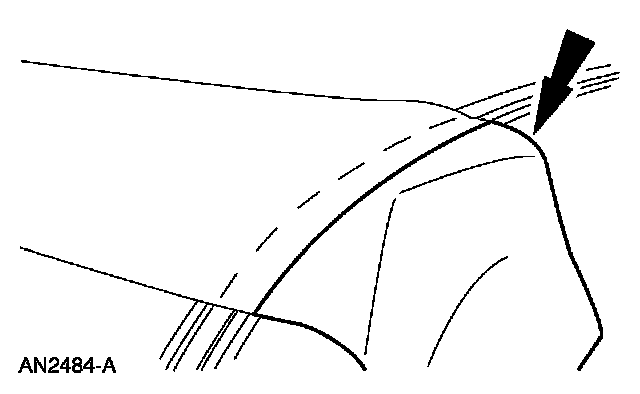

3. Using a hot knife, cut the excess stay pad material from the rear of the number four bow.

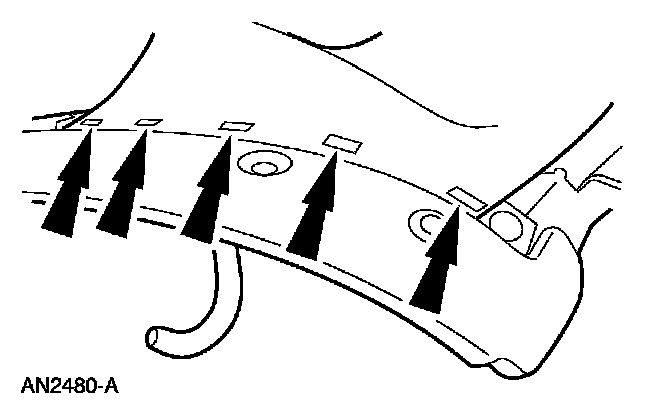

4. Staple the stay pad to the number two bow.







5. Staple the stay pad to the number three bow.
6. Install the rear window glass.
7. Install the convertible top material.
