Principles of Operation

Anti-Lock Control - Traction Control

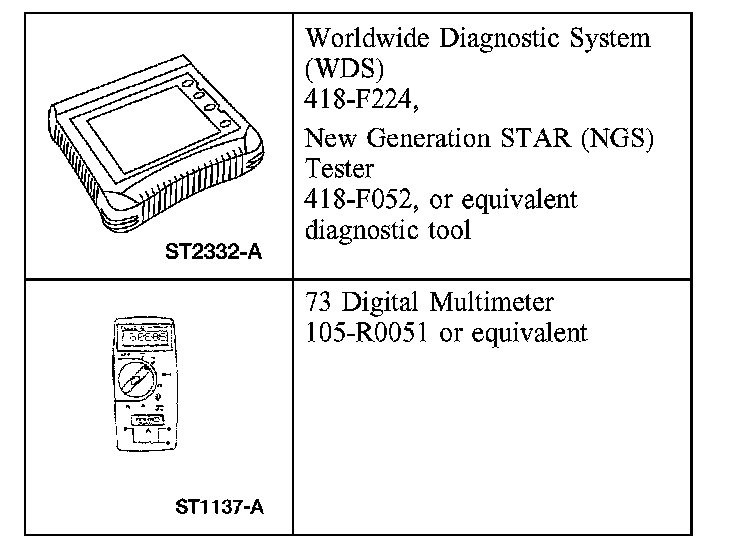

Special Tool(s)

Principles of Operation
The anti-lock-brake control module receives wheel speed readings from each anti-lock brake sensor and processes this information to determine if an ABS event is necessary. The anti-lock brake sensor electrically senses each tooth of the anti-lock brake sensor indicators as it passes through the anti-lock brake sensor's magnetic field.

The anti-lock brake control module continuously monitors and compares the rotational speed of each wheel and, when it detects an impending wheel lock, modulates brake pressure to the appropriate brake caliper. This is accomplished by triggering the hydraulic control unit (HCU) to open and close the appropriate solenoid valves. Once the affected wheel returns to normal speed, the anti-lock brake control module returns the solenoid valves to their normal position, and normal (base) braking resumes.

The anti-lock brake control module is self-monitoring. When the ignition switch is turned to the RUN position, the anti-lock brake control module will do a preliminary electrical check, and at approximately 12 km/h (8 mph) the pump motor is turned on for approximately one half-second. Also during all phases of operation the anti-lock brake control module (after the vehicle is in motion) checks for correct operation of the anti-lock brake sensors. Any malfunction of the ABS will cause the ABS to shut off and ABS warning indicator to illuminate; normal power assisted braking, however, remains.

The ABS control module has the ability to store multiple DTCs in memory.

The traction control system controls wheelspin by modulating the engine torque by communicating to the powertrain control module (PCM) and by applying, then releasing, the appropriate brake to restore traction when one or both drive wheels lose traction and begin to spin during acceleration.

The traction control system can be disabled by depressing the traction control switch. The traction control system will reset and return to normal traction assist when the ignition switch is cycled or when the traction control switch is depressed again.
